VERSATILE FORMED ELEMENTS
Stainless Steel Heater Element
Stainless Steel Heater Element by LICHENGDA. Formed geometry and sheath loading, configuration details and made-to-drawing quotation for process equipment and formed heating assemblies.
Product image gallery (7)
PRODUCT ENGINEERING
Formed geometry and sheath loading
Stainless Steel Heater Element: Review the complete formed outline against the available space and the heating medium. Bend radius, cold ends and terminal orientation need to be fixed before the tube is formed.
Choose the sheath for corrosion exposure and operating temperature. Support long spans and allow thermal expansion rather than forcing the element into an undersized mounting path.
For Stainless Steel Heater Element, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
For Stainless Steel Heater Element, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Process equipment and formed heating assemblies. The final suitability of Stainless Steel Heater Element depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Voltage / Wattage | Confirmed for the application |
|---|---|
| Tube / Shape | Made to drawing |
| Material / Mounting | Selected for operating conditions |
ARCHIVED PRODUCT INFORMATION
Description

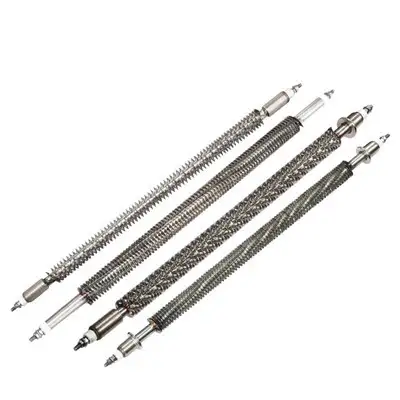

Finned heaters are available in a range of power ratings, from a few watts to several kilowatts, and can be designed to operate at different voltages and frequencies. They can also be equipped with temperature sensors and other control devices to ensure precise temperature control and protection against overheating. Overall, finned heaters are a cost-effective and reliable solution for a wide range of heating applications, offering high thermal efficiency, easy installation and maintenance, and a high degree of customization to meet specific application requirements.

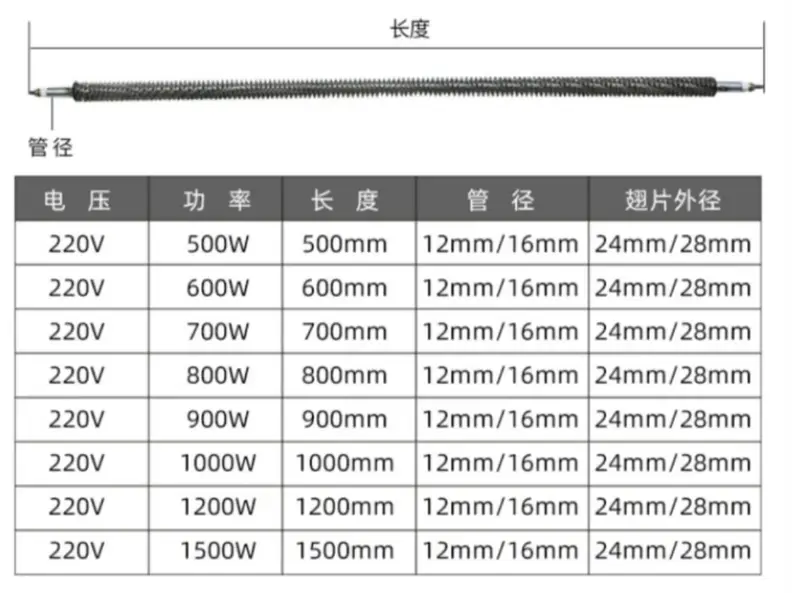

Stock size
| product | shape | voltage power | tube diameter | thread size | total size |
| finned heater | U | 220V 500W | 12MM | M18 | 300MM |
| U | 220V 1KW | 12MM | M18 | 350MM | |
| U | 220V 1.2KW | 12MM | M18 | 400MM | |
| U | 220V 1.5KW | 12MM | M18 | 450MM | |
| U | 220V 2KW | 12MM | M18 | 500MM | |
| U | 380v 2KW | 12MM | M18 | 500MM | |

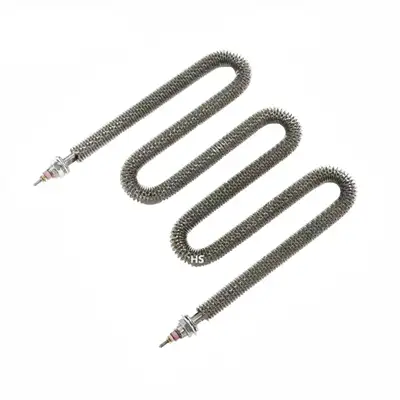

| W | 220V 1.5KW | 12MM | M18 | 400MM | |
| W | 220V 2.5KW | 12MM | M18 | 450MM | |
| W | 220V 3.5KW | 12MM | M18 | 600MM | |
| W | 380v 2.5KW | 12MM | M18 | 450MM | |
| W | 380v 3.5KW | 12MM | M18 | 600MM |
Product advantages
1: Selected iron, 201 stainless steel, 304 stainless steel, durable and high temperature resistant
2: Dry burning-resistant magnesium oxide powder, superior insulation performance, fast heating

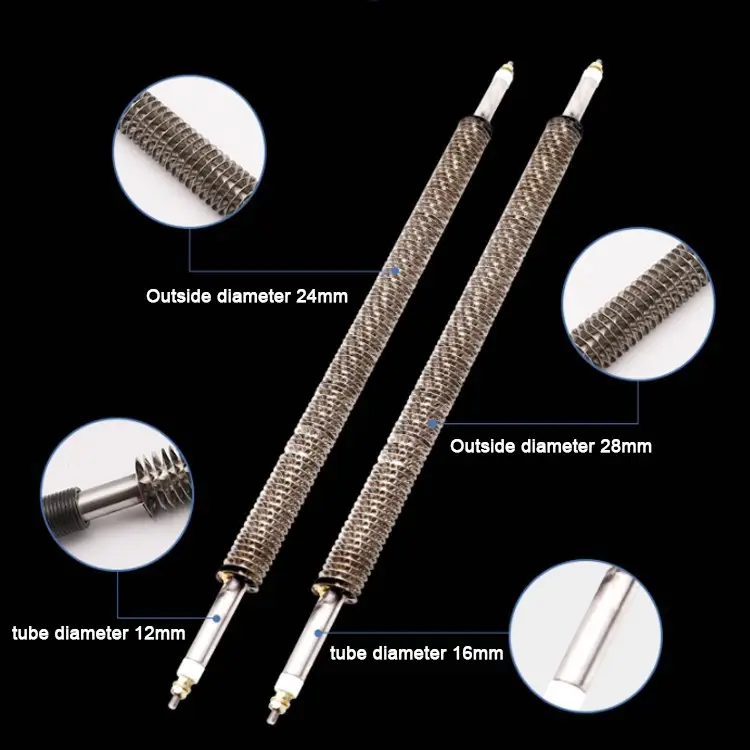

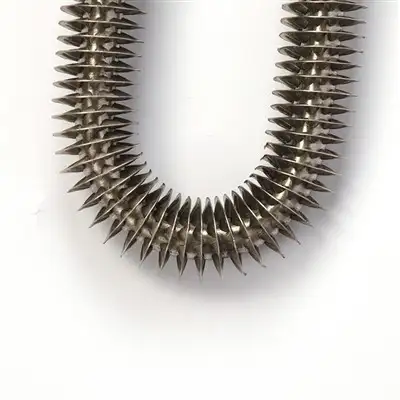

3: Precision fins, encryption design, mechanical processing and winding, uniform heating
4: Brand electric heating wire, high temperature resistance, oxidation resistance, durable
Company Information
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
Certifications
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: stainless steel heater element, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, U Type Electric Air Fins Heater, W Type Air Finned Tubular Heater, Stainless Steel Industrial Sauna Heat Tube, Electric Industrial Toaster Oven Heating Element, Water Immersion Copper Tubular Heater, Teflon Water Industrial Immersion Heater
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
