Refrigerator Heating Element
Refrigerator Heating Element by LICHENGDA. Formed geometry and sheath loading, configuration details and made-to-drawing quotation for process equipment and formed heating assemblies.
Product image gallery (6)
PRODUCT ENGINEERING
Formed geometry and sheath loading
Refrigerator Heating Element: Review the complete formed outline against the available space and the heating medium. Bend radius, cold ends and terminal orientation need to be fixed before the tube is formed.
Choose the sheath for corrosion exposure and operating temperature. Support long spans and allow thermal expansion rather than forcing the element into an undersized mounting path.
For Refrigerator Heating Element, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Refrigerator Heating Element lists Resistance heating wire: NiCr 80/20 wire; Length tolerance: ±1 mm; Diameter tolerance: ± 0.02mm; Size: 120V 325W 9.5*172mm. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Refrigerator Heating Element, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Process equipment and formed heating assemblies. The final suitability of Refrigerator Heating Element depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Resistance heating wire | NiCr 80/20 wire |
|---|---|
| Wattage Tolerance | +5%, -10% |
| Resistance tolerance | +10%, -5% |
| Length tolerance | ±1 mm |
| Diameter tolerance | ± 0.02mm |
| Standard Cold Zone | 5-10mm |
| Insulation resistance (cold) | ≥ 500 MΩ |
| Maximum leakage current (cold) | ≤ 0.5 mA |

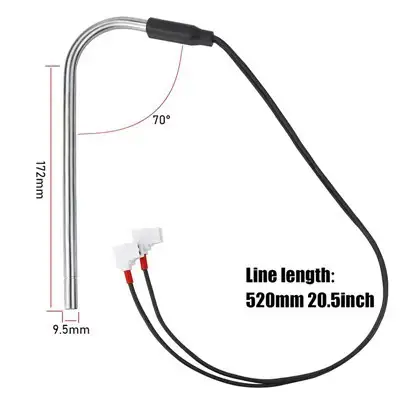

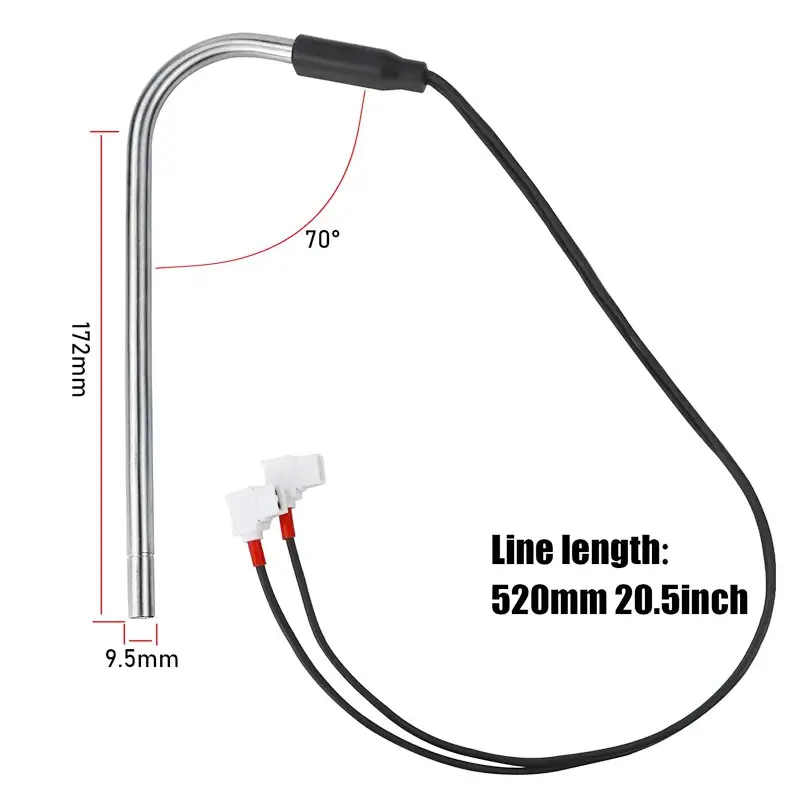

| Size | 120V 325W 9.5*172mm |
ARCHIVED PRODUCT INFORMATION
Description
Date sheets
| Resistance heating wire | NiCr 80/20 wire |
| Wattage Tolerance | +5%, -10% |
| Resistance tolerance | +10%, -5% |
| Length tolerance | ±1 mm |
| Diameter tolerance | ± 0.02mm |
| Standard Cold Zone | 5-10mm |
| Insulation resistance (cold) | ≥ 500 MΩ |
| Maximum leakage current (cold) | ≤ 0.5 mA |
| Size |
120V 325W 9.5*172mm |

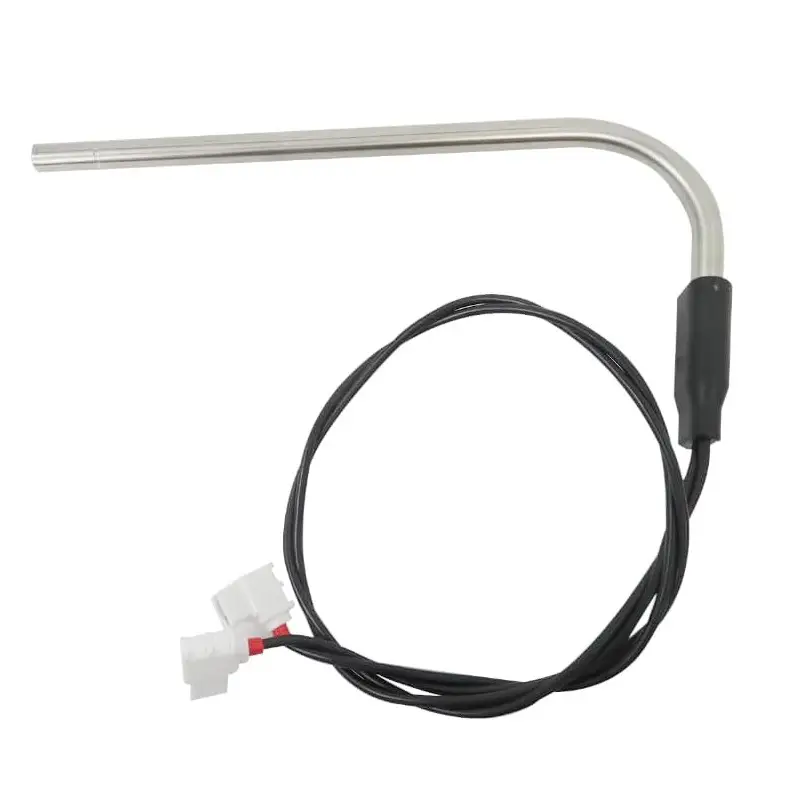

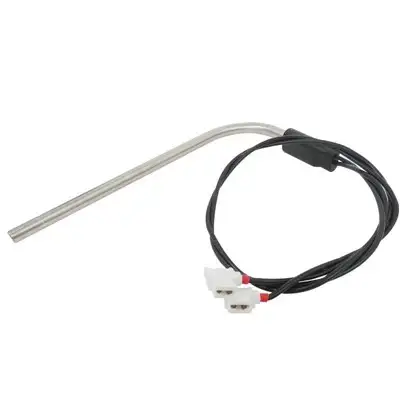

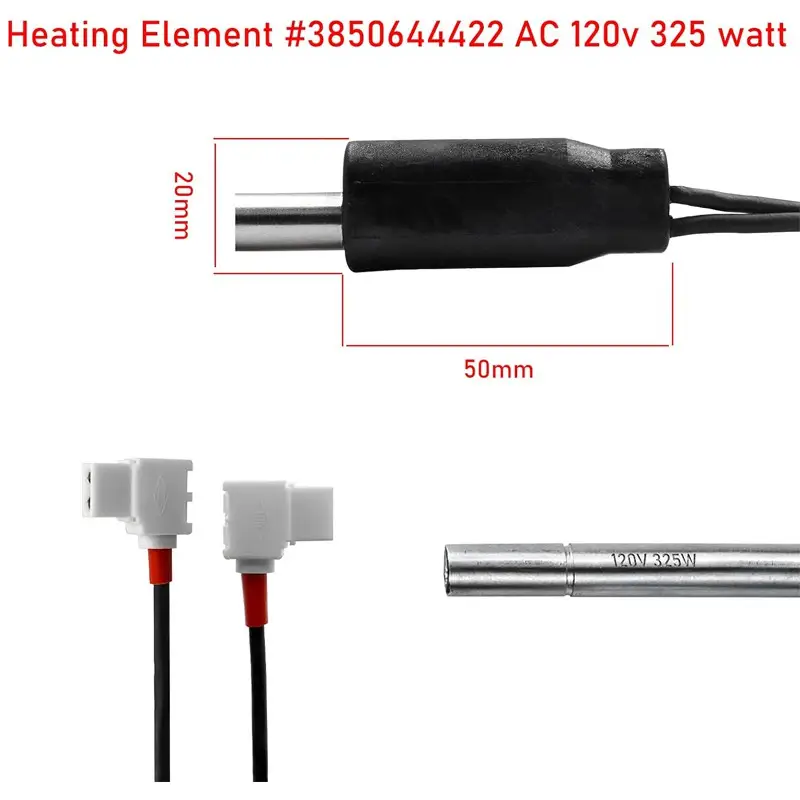

Heating Element # 3850644422 AC 120v 325w.
Replacement Parts for Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ NDM1062 Includes wire lead.
Installed easy and works like the original one did.100% of the products have been rigorously tested to ensure that each product received by our user can work perfectly.

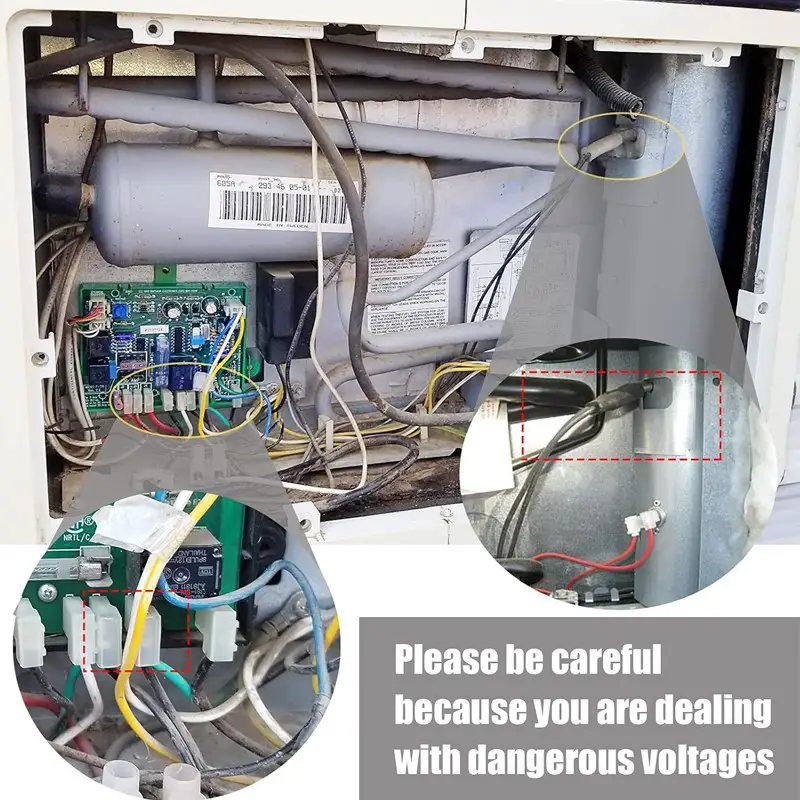

If your fridge won't works on 110v AC,Test for heating element,If you have voltage at one wire but not the second,most likely the element is burned out creating a break in the voltage path,please replace the new heating element.Just be careful because you are dealing with dangerous voltages.
