VERSATILE FORMED ELEMENTS
Oven Heating Element
Oven Heating Element by LICHENGDA. Formed geometry and sheath loading, configuration details and made-to-drawing quotation for process equipment and formed heating assemblies.
Product image gallery (7)
PRODUCT ENGINEERING
Formed geometry and sheath loading

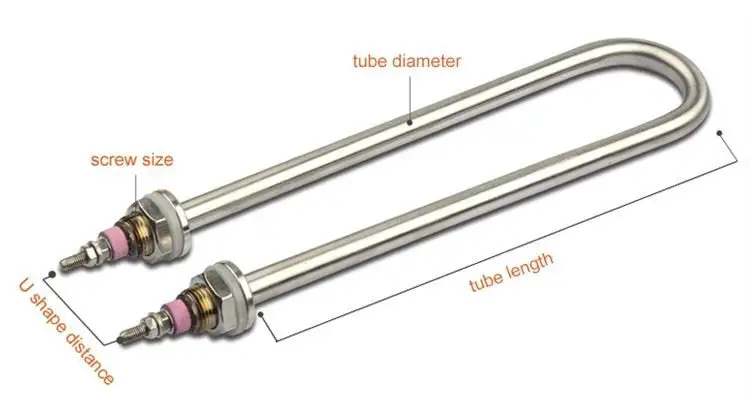

Oven Heating Element: Review the complete formed outline against the available space and the heating medium. Bend radius, cold ends and terminal orientation need to be fixed before the tube is formed.
Choose the sheath for corrosion exposure and operating temperature. Support long spans and allow thermal expansion rather than forcing the element into an undersized mounting path.
For Oven Heating Element, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Oven Heating Element lists Material: Stainless steel 304/ 321/ 316/ 310S, Incoloy 800 840; Power Tolerance: +5% -10%; Tube Diameter: 8MM 10MM 12MM 14MM 16MM 18MM 20MM. etc; Voltage: 380V 230V 220V 240V or customzied. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Oven Heating Element, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Process equipment and formed heating assemblies. The final suitability of Oven Heating Element depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Product | Air Tubular Heater |
|---|---|
| Material | Stainless steel 304/ 321/ 316/ 310S, Incoloy 800 840 |
| Power Tolerance | +5% -10% |
| Tube Diameter | 8MM 10MM 12MM 14MM 16MM 18MM 20MM. etc |

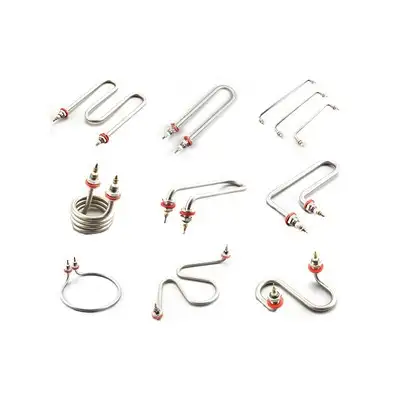

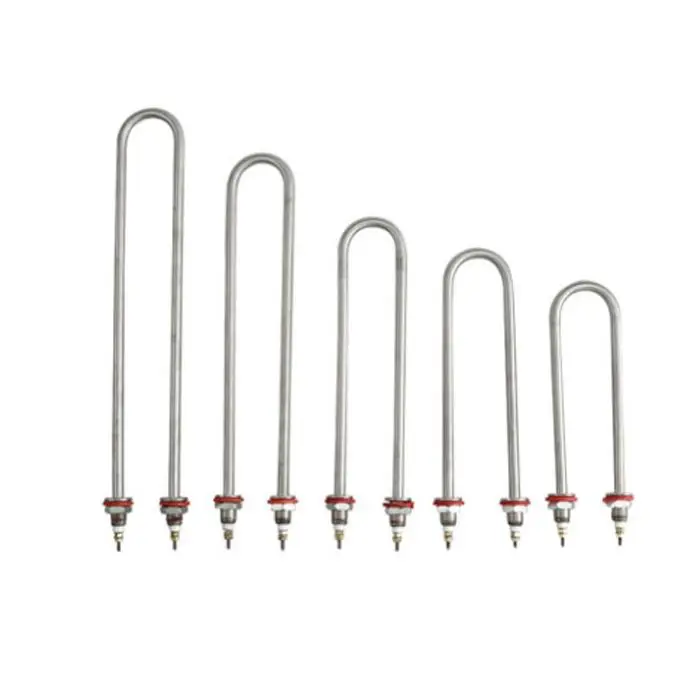

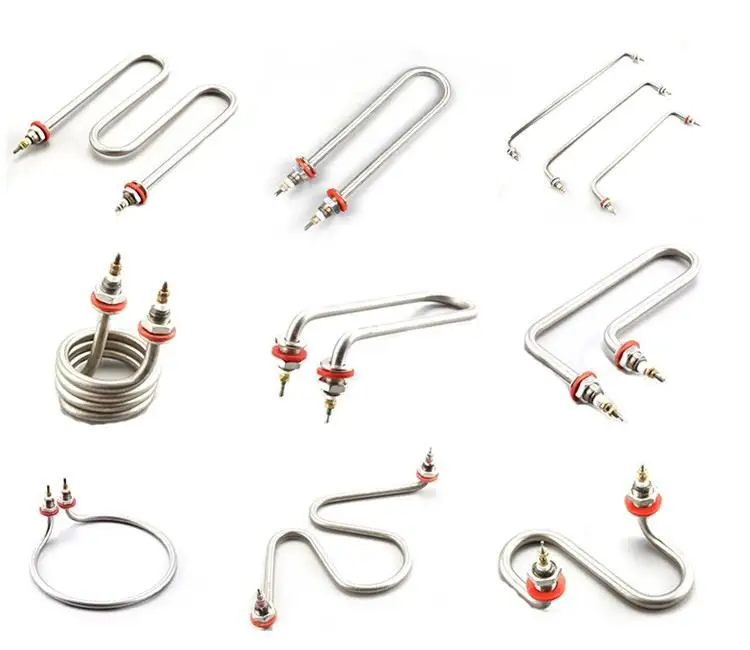

| Shape | Round, straight, U type, W type, double W type and so on |
| Voltage | 380V 230V 220V 240V or customzied |
| Thread | M12 M14 M16 M18 |
| Application | Drying, Heat Treating, Annealing, Load Banks, Curing |
ARCHIVED PRODUCT INFORMATION
Description
|
Product |
Air Tubular Heater |
|
Material |
Stainless steel 304/ 321/ 316/ 310S, Incoloy 800 840 |
|
Power Tolerance |
+5% -10% |
|
Tube Diameter |
8MM 10MM 12MM 14MM 16MM 18MM 20MM. etc |
|
Shape |
Round, straight, U type, W type, double W type and so on |
|
Voltage |
380V 230V 220V 240V or customzied |
|
Thread |
M12 M14 M16 M18 |
|
Application |
Drying, Heat Treating, Annealing, Load Banks, Curing |
Advantage
·Increase heat transfer surface area
·Max Sheath Temperature 870°C
·Safe to operate, Durable, Easy to maintain
·Secondary insulated bushings available
·High temperature resistance and wide application range. Corrosion resistance
