VERSATILE FORMED ELEMENTS
Heating Elements 1500w 220v
Heating Elements 1500w 220v by LICHENGDA. Formed geometry and sheath loading, configuration details and made-to-drawing quotation for process equipment and formed heating assemblies.

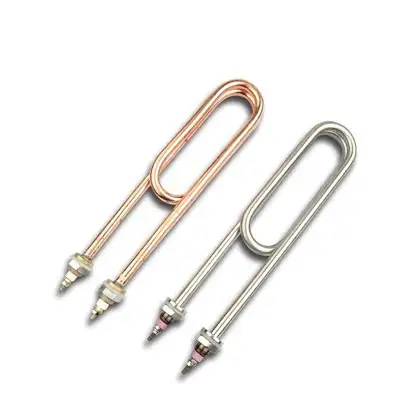

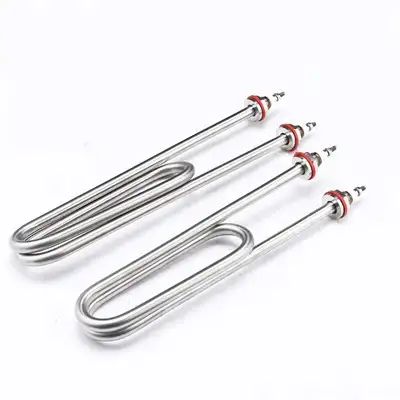

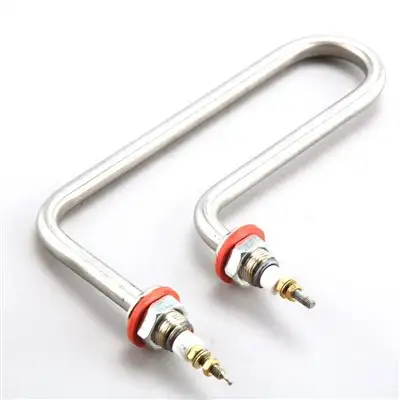

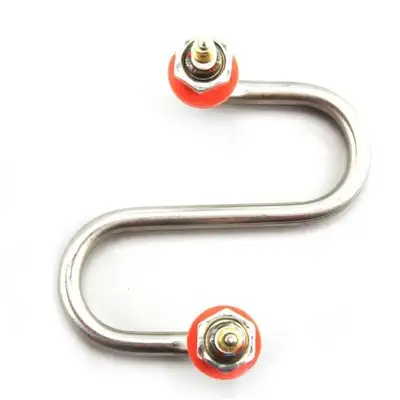

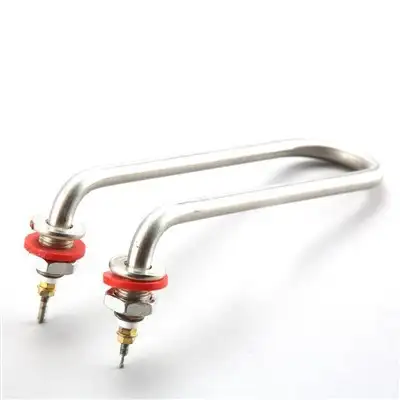

Product image gallery (7)
PRODUCT ENGINEERING
Formed geometry and sheath loading
Heating Elements 1500w 220v: Review the complete formed outline against the available space and the heating medium. Bend radius, cold ends and terminal orientation need to be fixed before the tube is formed.
Choose the sheath for corrosion exposure and operating temperature. Support long spans and allow thermal expansion rather than forcing the element into an undersized mounting path.
Using the catalog-name values 220 V and 1500 W, a single resistive load has an indicative current of 6.82 A and resistance of 32.27 Ω (I = P/V; R = V²/P). These calculations assume one element at its stated supply voltage; confirm phase arrangement, cold resistance and circuit protection in the approved drawing.
The archived configuration for Heating Elements 1500w 220v lists Material: stainless steel 304/321/316/310S; Power Tolerance: +5% -10%; Tube Diameter: 8MM 10MM 12MM 14MM 16MM 18MM 20MM. etc; Voltage: 380V 230V 220V 240V or customzied. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Heating Elements 1500w 220v, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
| Catalog name values | 1500w · 220v |
|---|---|
| Indicative single-element current | 6.82 A |
| Indicative single-element resistance | 32.27 Ω |
Application and reference configuration
Process equipment and formed heating assemblies. The final suitability of Heating Elements 1500w 220v depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Product | Air Tubular Heater |
|---|---|
| Material | stainless steel 304/321/316/310S |
| Power Tolerance | +5% -10% |
| Tube Diameter | 8MM 10MM 12MM 14MM 16MM 18MM 20MM. etc |
| Shape | Round, straight, U type, W type , double W type and so on |
| Voltage | 380V 230V 220V 240V or customzied |
| Thread | M12 M14 M16 M18 |
| Application | Drying,Heat Treating,Annealing,Load Banks,Curing |
ARCHIVED PRODUCT INFORMATION
Description
|
Product |
Air Tubular Heater |
|
Material |
stainless steel 304/321/316/310S |
|
Power Tolerance |
+5% -10% |
|
Tube Diameter |
8MM 10MM 12MM 14MM 16MM 18MM 20MM. etc |
|
Shape |
Round, straight, U type, W type , double W type and so on |
|
Voltage |
380V 230V 220V 240V or customzied |
|
Thread |
M12 M14 M16 M18 |
|
Application |
Drying,Heat Treating,Annealing,Load Banks,Curing |
Advantage:
·Increase heat transfer surface area
·Max Sheath Temperature 870°C
·Safe to operate,Durable,Easy to maintain
·Secondary insulated bushings available
·High temperature resistance and wide application range. Corrosion resistance
COMPANY PROFILE
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: heating elements 1500w 220v, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, Water Immersion Copper Tubular Heater, Electric Water Boiler Heating Element, U Type Electric Air Fins Heater, Straight Stainless Steel Finned Heater, Mosquito Coil Heating Tube Element, Tubular Air Finned Heater Element
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
