VERSATILE FORMED ELEMENTS
Finned Air Heating Element
Finned Air Heating Element by LICHENGDA. Airflow and fin clearance, configuration details and made-to-drawing quotation for air ducts, dryers and equipment enclosures.
Product image gallery (6)
PRODUCT ENGINEERING
Airflow and fin clearance
Finned Air Heating Element: Fins transfer heat to passing air. State the air speed, inlet temperature and duct dimensions before selecting surface loading; a wattage alone does not establish the allowable air temperature rise.
Keep fins clear of cables and combustible material. Review fan-failure interlocking and place the temperature limit where reduced airflow will be detected.
For Finned Air Heating Element, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
For Finned Air Heating Element, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Air ducts, dryers and equipment enclosures. The final suitability of Finned Air Heating Element depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Voltage / Wattage | Confirmed for the application |
|---|---|
| Tube / Shape | Made to drawing |
| Material / Mounting | Selected for operating conditions |
ARCHIVED PRODUCT INFORMATION
Description
Finned heaters are available in a range of power ratings, from a few watts to several kilowatts, and can be designed to operate at different voltages and frequencies. They can also be equipped with temperature sensors and other control devices to ensure precise temperature control and protection against overheating. Overall, finned heaters are a cost-effective and reliable solution for a wide range of heating applications, offering high thermal efficiency, easy installation and maintenance, and a high degree of customization to meet specific application requirements.
Stock size
| product | shape | voltage power | tube diameter | thread size | total size |

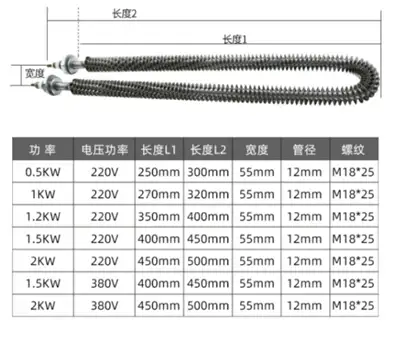

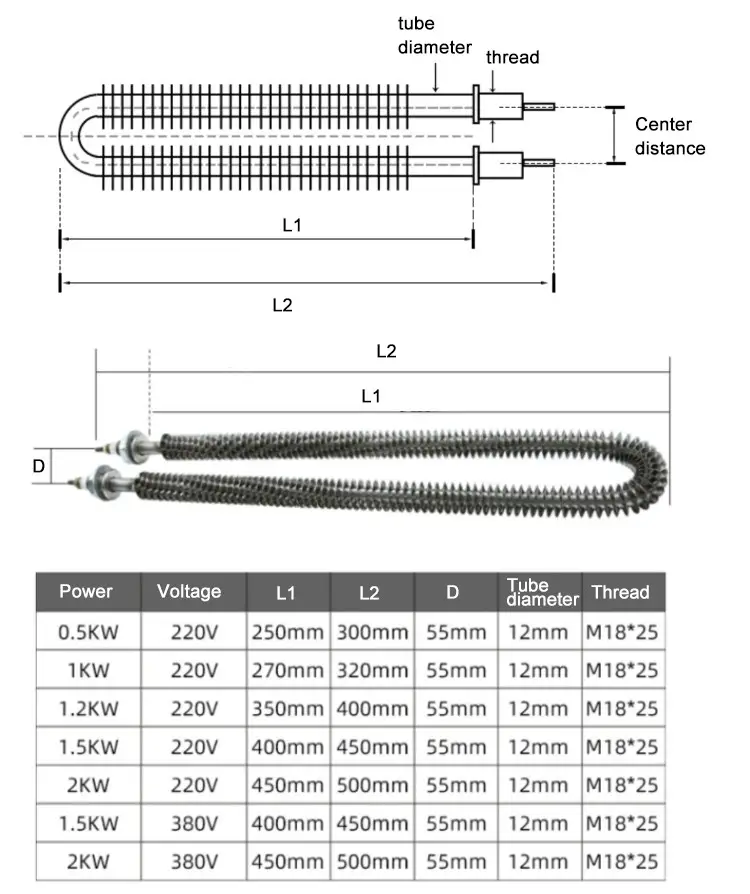

| finned heater | U | 220V 500W | 12MM | M18 | 300MM |
| U | 220V 1KW | 12MM | M18 | 350MM | |
| U | 220V 1.2KW | 12MM | M18 | 400MM | |
| U | 220V 1.5KW | 12MM | M18 | 450MM | |
| U | 220V 2KW | 12MM | M18 | 500MM | |
| U | 380v 2KW | 12MM | M18 | 500MM | |

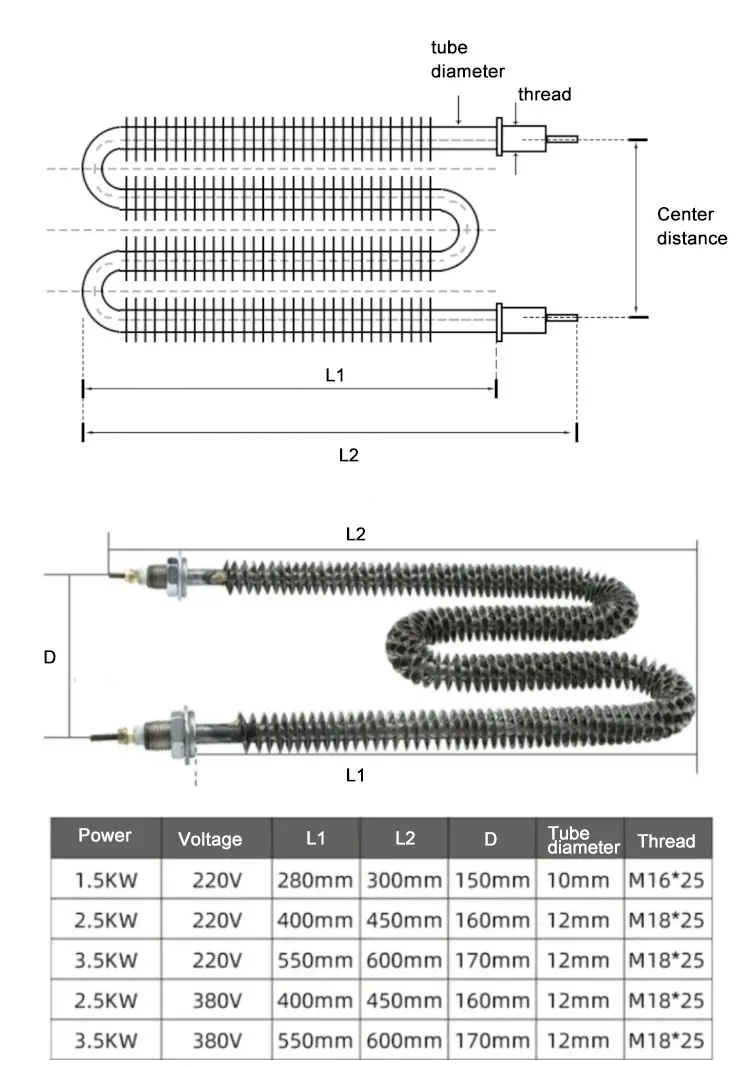

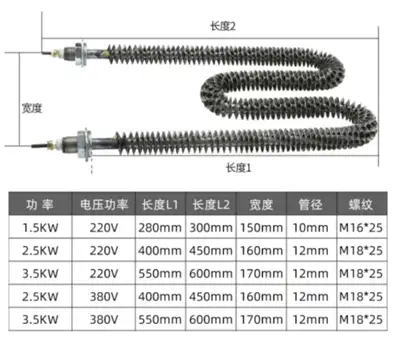

| W | 220V 1.5KW | 12MM | M18 | 400MM | |
| W | 220V 2.5KW | 12MM | M18 | 450MM | |
| W | 220V 3.5KW | 12MM | M18 | 600MM | |
| W | 380v 2.5KW | 12MM | M18 | 450MM | |
| W | 380v 3.5KW | 12MM | M18 | 600MM |
Key Features of Finned Heaters:
Fins: The fins are typically made of aluminum or steel and are attached to the heating element. They help distribute heat more evenly and increase the rate of heat transfer.
Heating Element: The core of the heater, which generates heat when electricity passes through it.
Durability: Finned heaters are often designed to withstand harsh environments, including exposure to moisture, chemicals, or high temperatures.
Versatility: They can be used in various configurations, such as tubular, strip, or custom shapes, to fit specific applications.
Product advantages
1: Selected iron, 201 stainless steel, 304 stainless steel, durable and high temperature resistant
2: Dry burning-resistant magnesium oxide powder, superior insulation performance, fast heating
3: Precision fins, encryption design, mechanical processing and winding, uniform heating
4: Brand electric heating wire, high temperature resistance, oxidation resistance, durable
Applications of Finned Heaters:
Air Heating: Used in duct heaters, space heaters, and HVAC systems.
Process Heating: Common in industrial processes, such as drying, curing, or preheating.
Ovens and Furnaces: Provide uniform heating in industrial ovens or furnaces.
Tank and Drum Heating: Used to heat liquids or gases in tanks or drums.
Food Industry: For heating or drying food products.
