Ceramic Bobbin Heater
Ceramic Bobbin Heater by LICHENGDA. Formed geometry and sheath loading, configuration details and made-to-drawing quotation for process equipment and formed heating assemblies.
Product image gallery (7)
PRODUCT ENGINEERING
Formed geometry and sheath loading
Ceramic Bobbin Heater: Review the complete formed outline against the available space and the heating medium. Bend radius, cold ends and terminal orientation need to be fixed before the tube is formed.
Choose the sheath for corrosion exposure and operating temperature. Support long spans and allow thermal expansion rather than forcing the element into an undersized mounting path.
For Ceramic Bobbin Heater, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
For Ceramic Bobbin Heater, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Process equipment and formed heating assemblies. The final suitability of Ceramic Bobbin Heater depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Voltage / Wattage | Confirmed for the application |
|---|---|
| Tube / Shape | Made to drawing |
| Material / Mounting | Selected for operating conditions |
ARCHIVED PRODUCT INFORMATION
Description

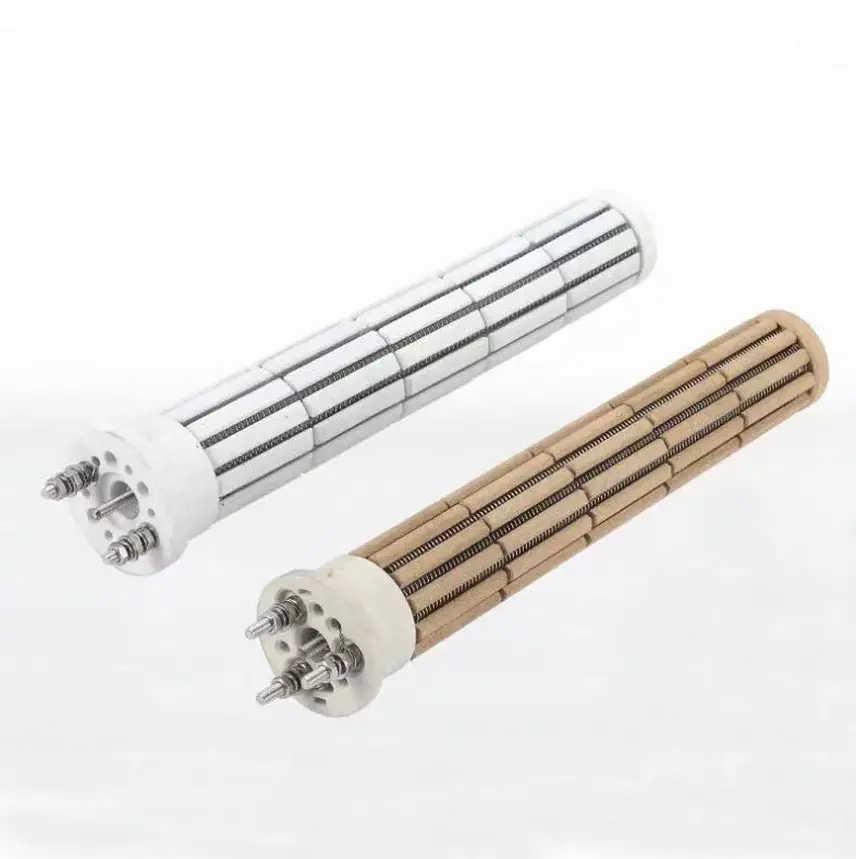

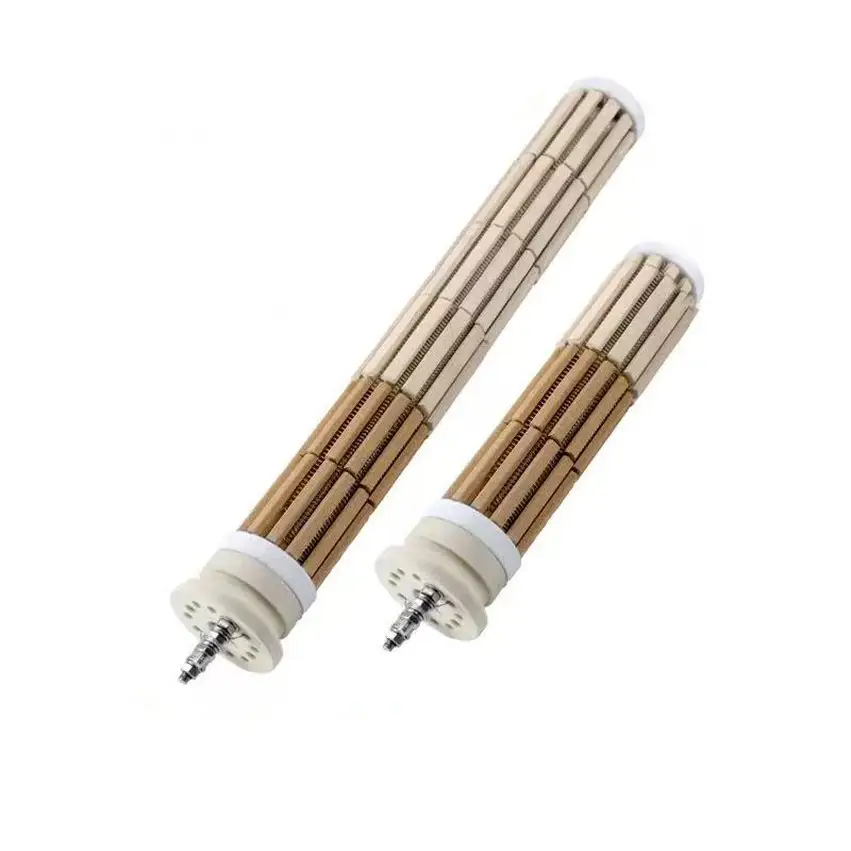

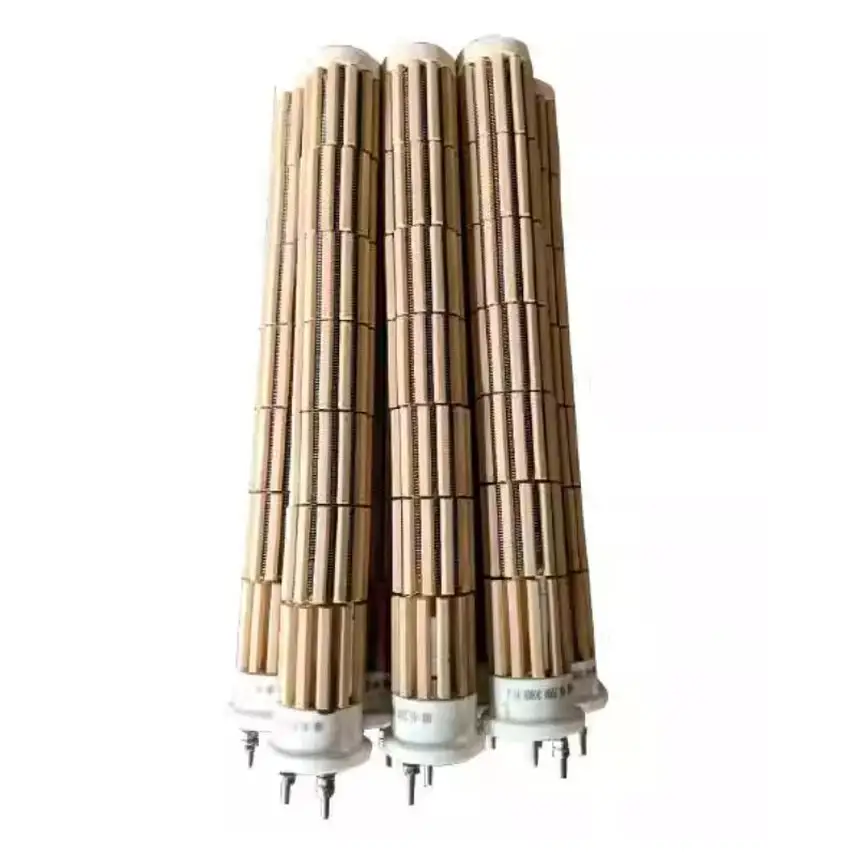

A ceramic bobbin radiant heater is a type of electric heating element that uses a ceramic bobbin (a cylindrical or coil-shaped ceramic core) to generate heat through electrical resistance. These heaters are commonly used in industrial, commercial, and household applications due to their efficiency, durability, and ability to emit radiant heat.

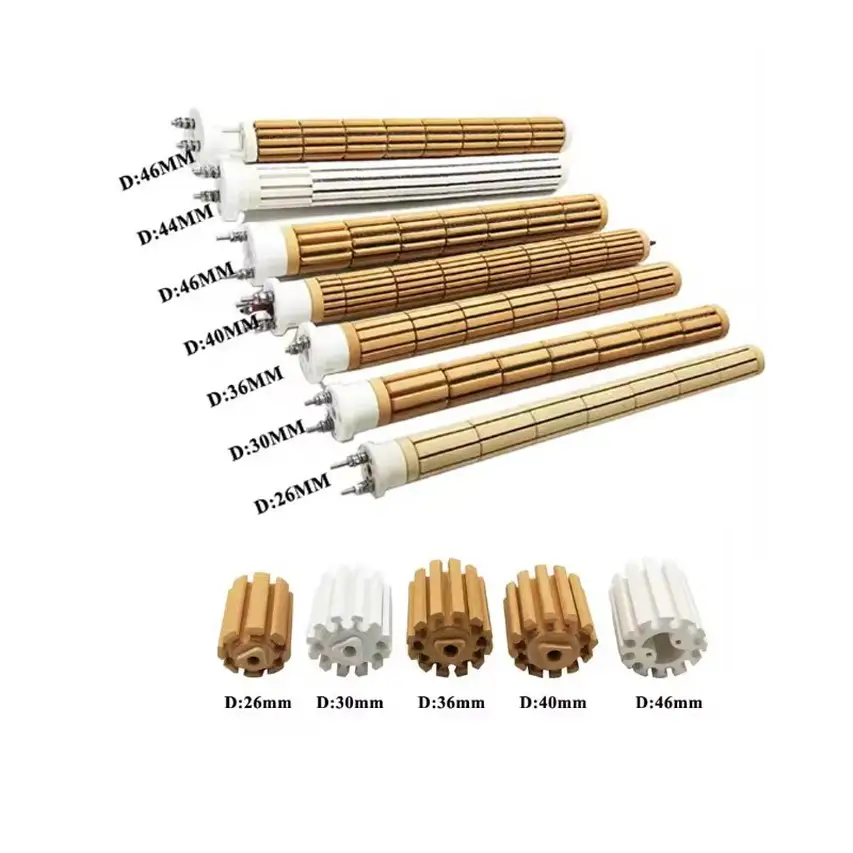

| Diameter of Bobbin | OD of Alloy Cover | Customized Length(mm) | KW/M(Water) | KW/M(Oil) |
| 26mm | 34*3mm(Thickness) | 300~1500mm | 4.5~5.5 | 3.5~4.0 |
| 36mm | 44*3mm(Thickness) | 300~1500mm | 4.5~5.5 | 3.5~4.0 |
| 40mm | 48*3mm(Thickness) | 300~2000mm | 6.0~7.0 | 4.0~5.0 |
| 43mm | 51*3mm(Thickness) | 300~2000mm | 6.0~7.0 | 4.0~5.0 |
| 46mm~47mm | 54*3.5mm(Thickness) | 300~2500mm | 7.0~8.0 | 5.0~6.0 |
| 57mm | 65*3.5mm(Thickness) | 300~2500mm | 7.0~8.0 | 5.0~6.0 |
Key Features:
Ceramic Bobbin Core:
The ceramic material is highly resistant to heat and provides excellent thermal insulation.
It can withstand high temperatures without degrading, making it ideal for heating applications.
Heating Element:
A resistance wire (often made of nichrome or similar alloys) is wound around the ceramic bobbin.
When electricity passes through the wire, it heats up due to resistance, and the ceramic core helps distribute the heat evenly.
Radiant Heat:
The heater emits infrared radiation, which directly heats objects and surfaces in its line of sight rather than heating the air.
This makes it energy-efficient and effective for targeted heating.
Applications:
Industrial: Used in processes like plastic welding, drying, and curing.
Commercial: Found in space heaters, food warmers, and infrared saunas.
Household: Used in portable heaters, hair dryers, and other small appliances.
Advantages:
Energy Efficiency: Radiant heat minimizes energy loss.
Fast Heating: Ceramic heaters reach operating temperatures quickly.
Durability: Ceramic materials are long-lasting and resistant to thermal shock.
Safety: The outer surface remains relatively cool, reducing the risk of burns.
