ACCURATE TEMPERATURE SENSING
Temperature Sensor Magnet
Temperature Sensor Magnet by LICHENGDA. Thermocouple alloy and junction selection, configuration details and made-to-drawing quotation for industrial temperature monitoring and furnace control.
Product image gallery (7)
PRODUCT ENGINEERING
Thermocouple alloy and junction selection
Temperature Sensor Magnet: Match thermocouple type, polarity and extension cable to the controller input. Select protection-tube material and grounded or ungrounded junction for the atmosphere, electrical noise and response required.
Define insertion depth and the mechanical support at the process connection. A temperature stated in a product name needs confirmation for the complete probe assembly, cable transition and continuous duty.
The archived configuration for Temperature Sensor Magnet lists Probe Dimensions: 19*9.5mm; Wires: 2*7*0.2mm, multi-strand wire; Lead Length: 0.5m, 1m, 1.5m, 2m (customizable); Mounting Type: Magnetic suction, no drilling required. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Temperature Sensor Magnet, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Industrial temperature monitoring and furnace control. The final suitability of Temperature Sensor Magnet depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Temperature Range | 0-350°C (default) |
|---|---|
| Thermocouple Type | K Type (default), PT100, PT1000, NTC (customizable) |

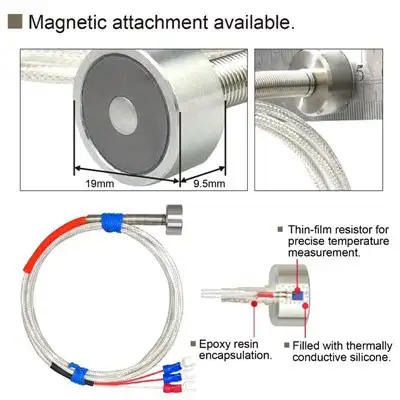

| Probe Dimensions | 19*9.5mm |
| Wires | 2*7*0.2mm, multi-strand wire |
| Lead Length | 0.5m, 1m, 1.5m, 2m (customizable) |
| Mounting Type | Magnetic suction, no drilling required |
| Connector Type | U-type terminal (default), Pin terminal, Aviation plug (customizable) |
| Insulation | High-frequency ceramic tube, high-temperature fiberglass insulation |
ARCHIVED PRODUCT INFORMATION
Description
A magnetic thermocouple is a specialized type of thermocouple that incorporates magnetic materials or principles to enhance
temperature measurement, particularly in environments with strong magnetic fields or where magnetic effects influence thermal readings
|
Temperature Range |
0-350°C (default) |
|
Thermocouple Type |
K Type (default), PT100, PT1000, NTC (customizable) |
|
Probe Dimensions |
19*9.5mm |
|
Wires |
2*7*0.2mm, multi-strand wire |
|
Lead Length |
0.5m, 1m, 1.5m, 2m (customizable) |
|
Mounting Type |
Magnetic suction, no drilling required |
|
Connector Type |
U-type terminal (default), Pin terminal, Aviation plug (customizable) |
|
Insulation |
High-frequency ceramic tube, high-temperature fiberglass insulation |
Precise Temperature Readings:Thermal conductive silicone filling ensures accurate and sensitive temperature measurements.
Magnetic Mounting:Magnetic suction mounting ensures easy relocation without drilling, ideal for industrial setups.
Magnetic Surface Temperature Sensor|Surface Temperature Sensor|High-Temperature Resistance:Equipped with a protective sleeve and spring cover, this sensor withstands extreme conditions up to 350°C.
Durable Materials:Stainless steel shielding and high-temperature fiberglass insulation enhance longevity and reliability.
Customizable Options:Offers customizable thermocouple types, lead lengths, and connectors to fit diverse application needs.
APPLICATION

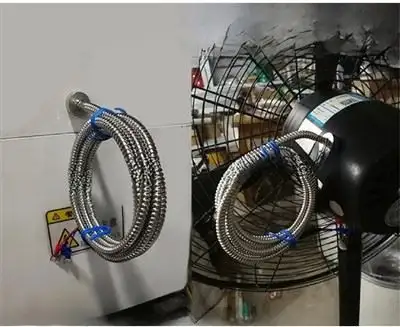

Suitable for frequently changing measurement locations, such as lab experiments, industrial setups, or temperature monitoring in dynamic environments.

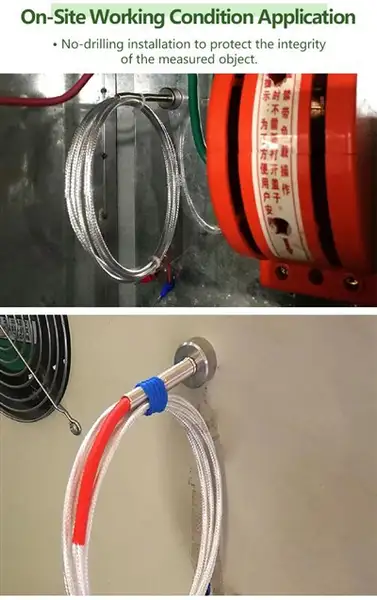

Ideal for non-invasive installations, preserving the integrity of the measured object.
Can be used with temperature controllers and other monitoring systems.
Product Advantage
1:High temperature resistance, flexible, anti-corrosion, fast and accurate temperature measurement
2:High temperature resistant Extension wire
3:Probe length can be customized, probe can be bent
4:Arbitrary bending, high temperature resistance, long service life, fast response speed, fixed spring
5:High Precision Temperature control probe
6:Quick response,OEM Accepted
When the junction is exposed to a temperature difference, a voltage is generated across the junction, which can be measured and used to determine the temperature.
The K type thermocouple has a temperature range of approximately -200°C to 1350°C and is commonly used in furnaces, kilns, and other high-temperature applications.
One of the advantages of the K type thermocouple is its relatively low cost compared to other types of thermocouples.
It also has good accuracy and stability over a wide temperature range, making it a popular choice for many applications.
