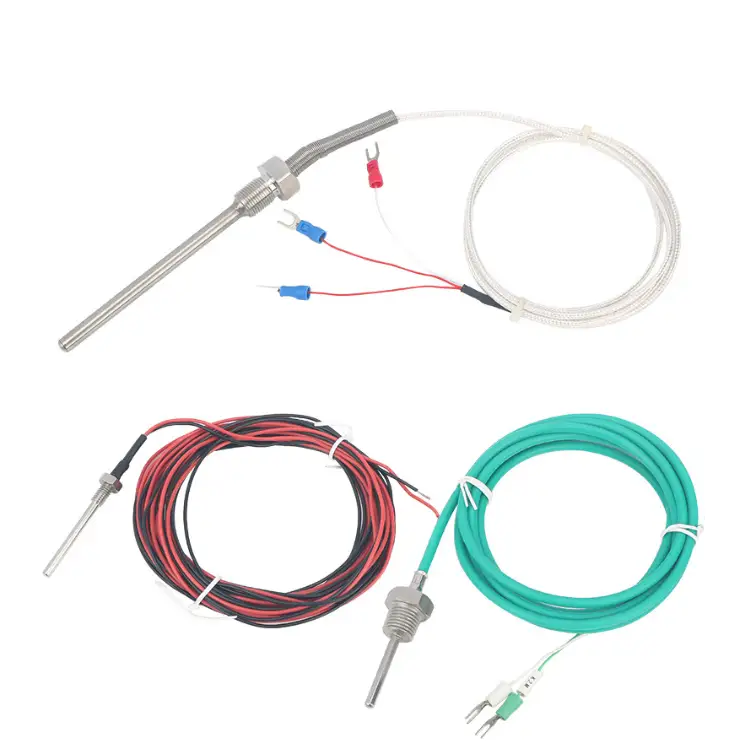

Screw Pt100 Rtd Temperature Sensor
Screw Pt100 Rtd Temperature Sensor by LICHENGDA. RTD wiring and insertion geometry, configuration details and made-to-drawing quotation for repeatable process-temperature measurement.
Product image gallery (6)
PRODUCT ENGINEERING
RTD wiring and insertion geometry
Screw Pt100 Rtd Temperature Sensor: Match the named platinum resistance sensor to the controller’s configured input. Confirm the resistance designation, accuracy class and 2-, 3- or 4-wire arrangement before connecting the probe.
Insertion depth, probe diameter and mounting contact affect response and measurement error. Route the signal cable away from heater power wiring and review cable resistance for the selected connection scheme.

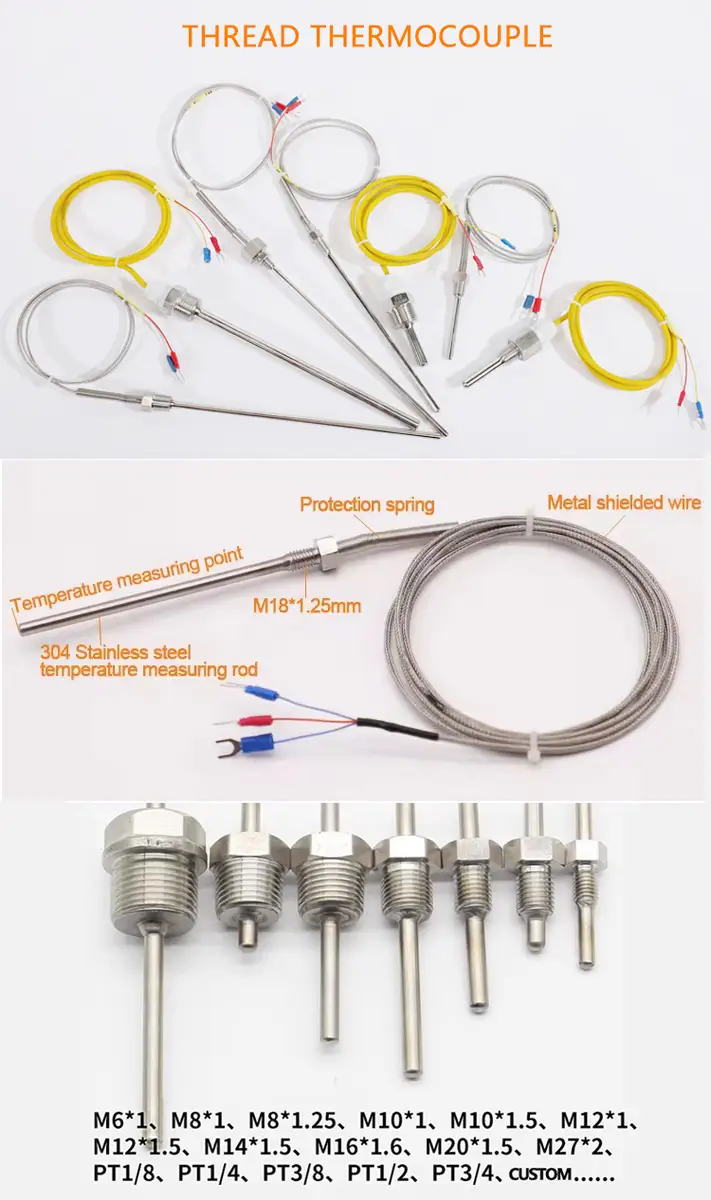

The archived configuration for Screw Pt100 Rtd Temperature Sensor lists tube diameter: min 1mm,Default 5mm; Thread size: M8*1.25; Spring length: 70mm; Stainless steel material: Default 304 stainless steel ,customized 2520/3039/316. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Screw Pt100 Rtd Temperature Sensor, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Repeatable process-temperature measurement. The final suitability of Screw Pt100 Rtd Temperature Sensor depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| tube diameter | min 1mm,Default 5mm |
|---|---|
| K type | 0-1250℃ |
| E type | 0-400℃ |
| PT100 | 0-500℃ |

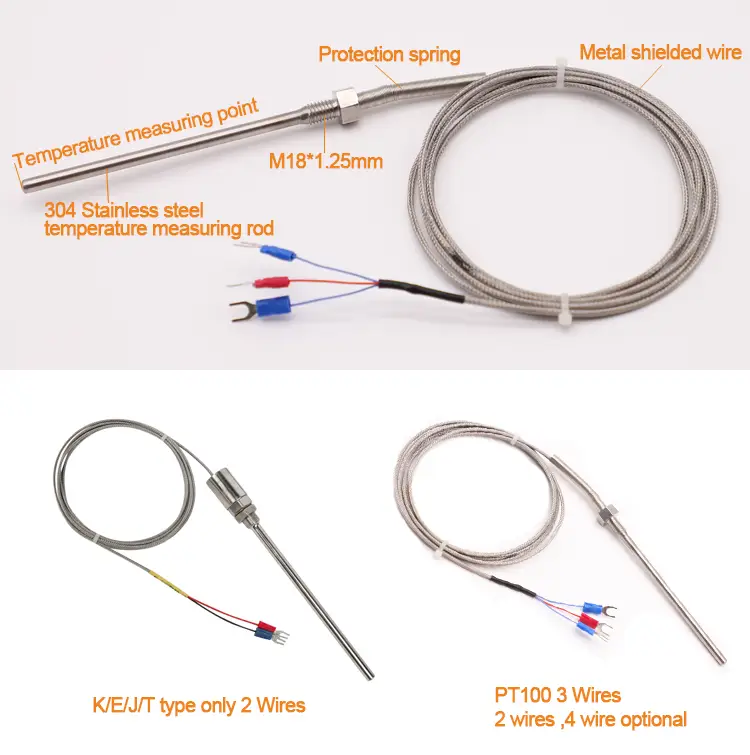

| Thread size | M8*1.25 |
| Spring length | 70mm |
| Wiring terminal | 2 wire ,3 wire ,4 wire |
| Stainless steel material | Default 304 stainless steel ,customized 2520/3039/316 |
ARCHIVED PRODUCT INFORMATION
Description
|
tube diameter |
min 1mm,Default 5mm |
|
K type |
0-1250℃ |
|
E type |
0-400℃ |
|
PT100 |
0-500℃ |
|
Thread size |
M8*1.25 |
|
Spring length |
70mm |
|

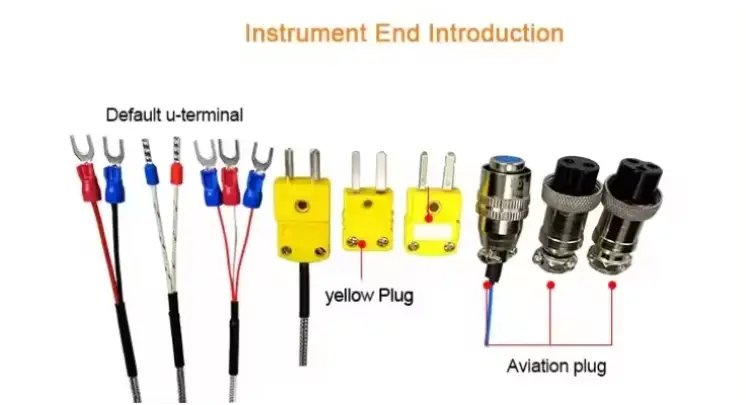

Wiring terminal |
2 wire ,3 wire ,4 wire |
|
Stainless steel material |
Default 304 stainless steel ,customized 2520/3039/316 |
The K type temperature sensor probe temperature range is 0~500℃ ( 932 Fahrenheit )
This K temperature sensor is rustproof , it is made from stainless steel . Water proof Insulation Lead

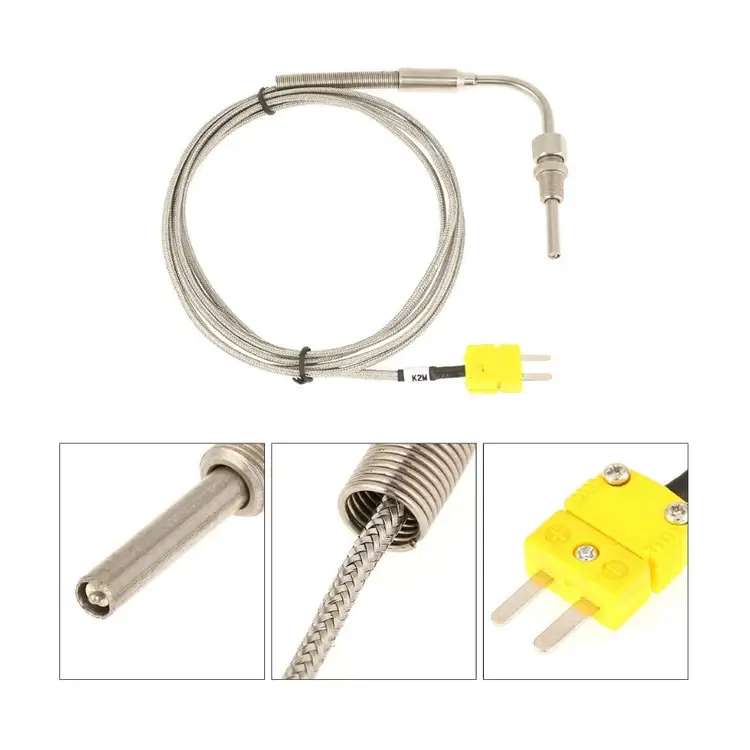

Cable : The wire of this K sensor is compesation wire with shield feature . Length of the line is 2m (79inch) . Cable: 78.7 inch ( 2m ) metal braided line . The wire is made of shielded glass fiber wire ,thr wire can withstand 600℃ high temperature . It is compesation wire with shield feature . Much better than Teflon .
Product Advantage
1:High temperature resistance, flexible, anti-corrosion, fast and accurate temperature measurement
2:High temperature resistant Extension wire
3:Arbitrary bending, high temperature resistance, long service life, fast response speed, fixed spring
Related Products
Company Information
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.

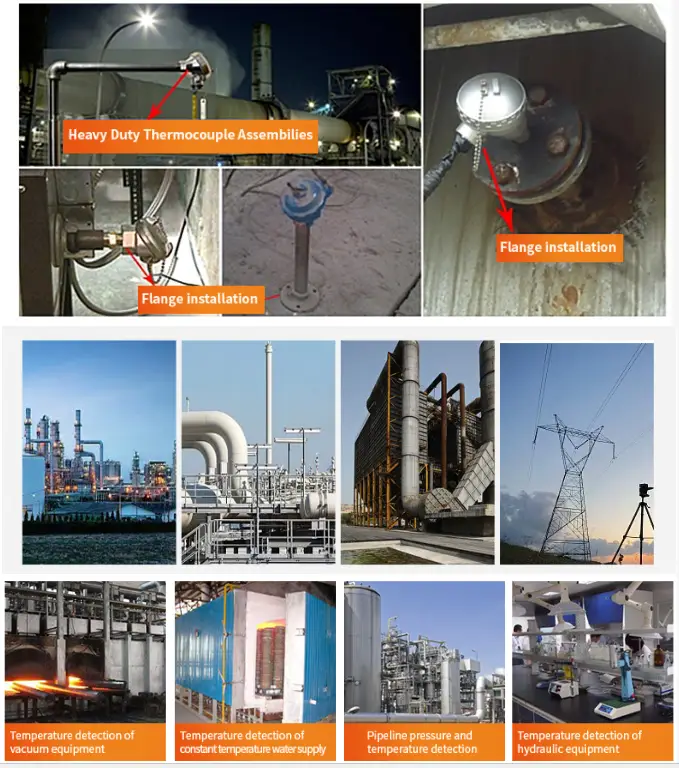

Application
Appliction:professional selection,stable performance and more accurate,suitable for chemical industry
aquaculture ,food ,packing ,medical electronis and other industried with temperature control equipment
Hot Tags: screw pt100 rtd temperature sensor, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, Pid Digital Temperature Controller, k type temperature thermocouples, ceramic b type thermocouple, pt100 rtd temperature sensor, pt100 temperature sensor 3 wires, 4 Wires Rtd Pt100 Thermocouple Sensor
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
