Rtd P100 Surface
Rtd P100 Surface by LICHENGDA. RTD wiring and insertion geometry, configuration details and made-to-drawing quotation for repeatable process-temperature measurement.
Product image gallery (7)
PRODUCT ENGINEERING
RTD wiring and insertion geometry
Rtd P100 Surface: Match the named platinum resistance sensor to the controller’s configured input. Confirm the resistance designation, accuracy class and 2-, 3- or 4-wire arrangement before connecting the probe.
Insertion depth, probe diameter and mounting contact affect response and measurement error. Route the signal cable away from heater power wiring and review cable resistance for the selected connection scheme.
For Rtd P100 Surface, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Repeatable process-temperature measurement. The final suitability of Rtd P100 Surface depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Sensor Type | Confirmed for the application |
|---|---|
| Probe / Length | Made to drawing |
| Cable / Mounting | Selected for operating conditions |
ARCHIVED PRODUCT INFORMATION
Description
The thermal conductivity is very good, and it can accurately measure the surface temperature of the object. It is to lead the wire directly after putting the temperature sensing element on the protection tube. Users can choose different indexing sleeve sizes and wire materials according to the different
temperature or the size of the measurement space. Generally used in small-scale temperature measurement occasions.
It seems like you're referring to a "patch thermocouple." A patch thermocouple is a type of temperature sensor that is designed to be attached to a surface to measure its temperature. These are often used in applications where it's important to monitor the temperature of a specific area without intrusive methods.
| Model | probe | range | |

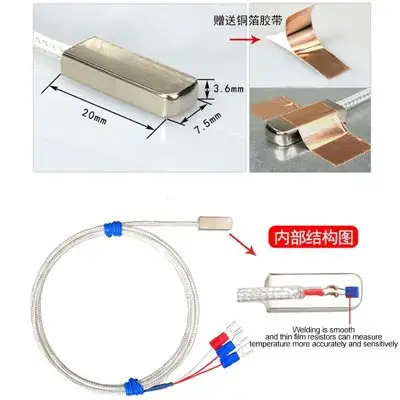

| Pt100 | 20*7.5*3.6mm | -50 to 420℃ | |
| Resistance | Class A ,Class B | Precision | ±1℃,±2℃ |
| Wire material | Teflon/Silicone rubber (waterproof)/Glass fiber | ||
Key Features of Patch Thermocouples:
Surface Mounting: They are typically adhered or attached directly to the surface whose temperature needs to be measured.
Thin and Flexible: Patch thermocouples are usually thin and flexible, allowing them to conform to the shape of the surface.
Quick Response Time: Due to their design, they often have a fast response time to temperature changes.
Variety of Types: They can be made with different types of thermocouple materials (e.g., Type K, Type J, Type T) depending on the temperature range and environment.
Installation Tips:
Surface Preparation: Ensure the surface is clean and smooth for optimal adhesion and accurate readings.
Adhesive Selection: Use an appropriate adhesive that can withstand the temperature range and environmental conditions.
Placement: Position the patch thermocouple in a location that is representative of the area you want to measure.
|
Name |
patch thermocouple |
|
type |
K/E/J/T/PT100 |
|
Temperature |
0-600℃ (k),0-400℃ (E),-50-420℃ (PT100) |
|
patch materail |
copper |
|
inner diameter |
6mm,3mm,4mm,5mm,8mm,10mm,12mm,14mm,16mm,20mm |
|
wire length |
0.5m/1m/2m/3m or customzied |
|
Terminal |
U type Terminal or plug |
|
patch thickness |
0.8mm |
Product Advantage
1:High Precision Temperature control probe
2:Accurate measurement accuracy, high sensitivity, wide measurement range -200-600℃
3:Accurate measurement (imported chip)
4:fast response,anti-interference,Good temperature resistance
Types of Thermocouples:
Thermocouples are classified into different types based on the metal combinations used. Each type has a specific temperature range and application suitability:
Type K (Chromel-Alumel): Most common, suitable for a wide range of temperatures (-200°C to 1260°C).
Type J (Iron-Constantan): Used in reducing environments, range from -210°C to 1200°C.
Type T (Copper-Constantan): Ideal for cryogenic applications, range from -250°C to 400°C.
Type E (Chromel-Constantan): High output, suitable for cryogenic and moderate temperatures (-200°C to 900°C).
Type N (Nicrosil-Nisil): Stable at high temperatures, range from -270°C to 1300°C.
Type R/S (Platinum-Rhodium): Used for very high temperatures (up to 1600°C), often in laboratory settings.
Type B (Platinum-Rhodium): Suitable for extremely high temperatures (up to 1800°C).
