PT100 Sensor M6 3-Wire
PT100 Sensor M6 3-Wire by LICHENGDA. RTD wiring and insertion geometry, configuration details and made-to-drawing quotation for repeatable process-temperature measurement.
Product image gallery (7)
PRODUCT ENGINEERING
RTD wiring and insertion geometry
PT100 Sensor M6 3-Wire: Match the named platinum resistance sensor to the controller’s configured input. Confirm the resistance designation, accuracy class and 2-, 3- or 4-wire arrangement before connecting the probe.
Insertion depth, probe diameter and mounting contact affect response and measurement error. Route the signal cable away from heater power wiring and review cable resistance for the selected connection scheme.
The archived configuration for PT100 Sensor M6 3-Wire lists Cable material: Shielded wire,Fiberglass, PTFE, silicon; Thread size: M5/M6/M8; Thread size: M6*1/ M6*1.25. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For PT100 Sensor M6 3-Wire, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Repeatable process-temperature measurement. The final suitability of PT100 Sensor M6 3-Wire depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Cable material | Shielded wire,Fiberglass, PTFE, silicon |
|---|---|

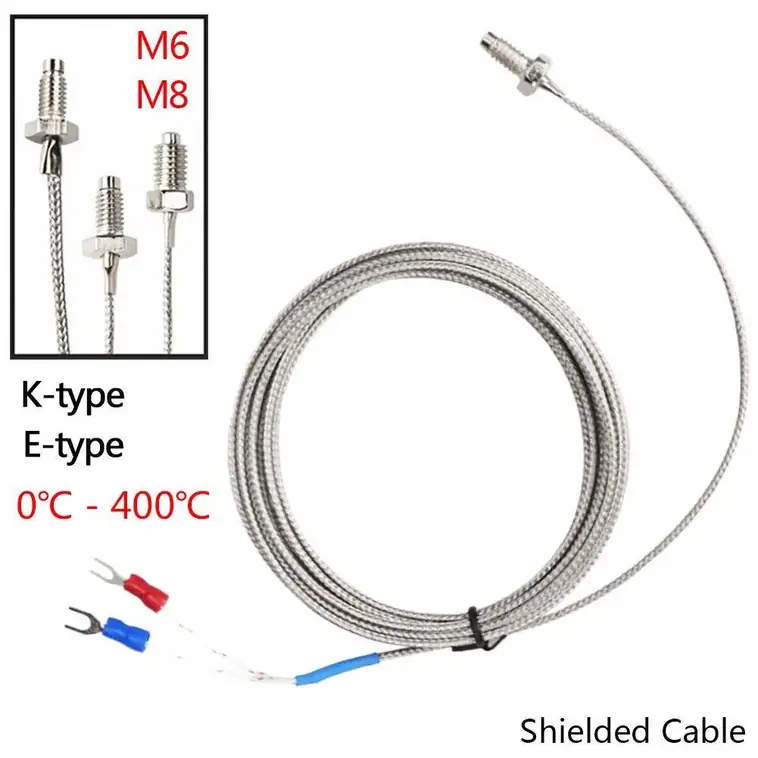

| Thread size | M5/M6/M8 |
| K | 0-800℃ |
| J | 0-600 ℃ |
| E | 0-400 ℃ |
| PT100 | -200-500℃ |
| Thread size | M6*1/ M6*1.25 |
