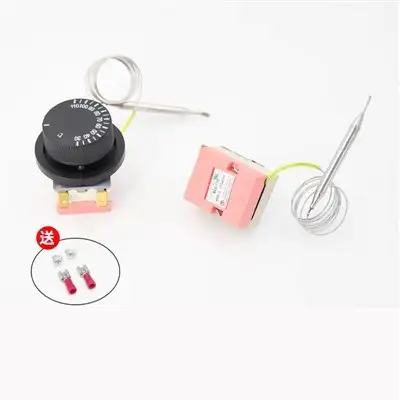

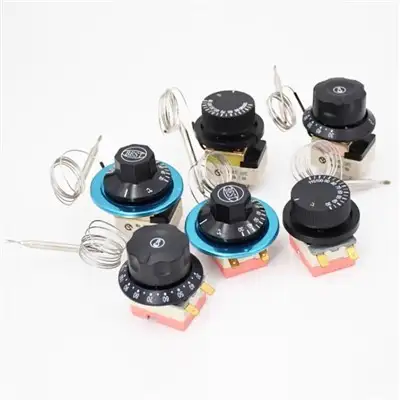

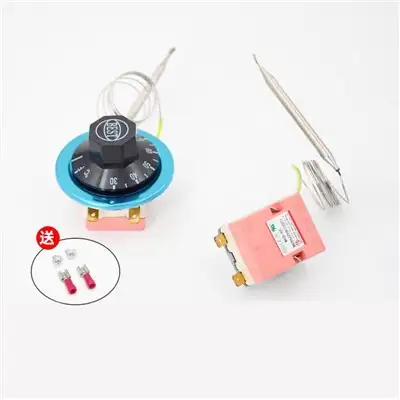

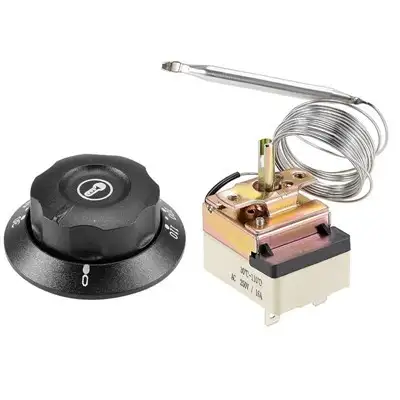

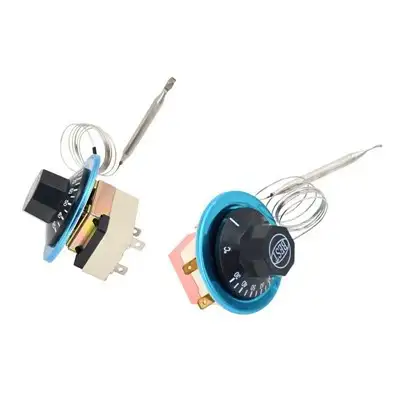

Oven Thermostat Knob

Description

A temperature control switch is a device that automatically regulates temperature by turning a connected system (such as a heater, cooler, or fan) on or off based on a set temperature threshold. These switches are widely used in HVAC systems, industrial equipment, home appliances, and more.

Size	Tube Diameter	Tube Length	Wire Length	Vlotage / Power
30-110c	6mm	75mm	0.7m/2m	220v/380v
60-200c	6mm	60mm	0.7m/2m	220v/380v
50-300c long rod	3mm	150mm	0.7m	220v/380v
50-300c Middle rod	5mm	55mm	0.7m/2m	220v/380v
50-300c short rod	6mm	40mm	0.7m	220v/380v
30-85c	6mm	95mm	0.7m	220v/380v
50-400c	6mm	40mm	0.7m	220v/380v
30-150c	6mm	60mm	0.7m	220v/380v

Principle and performance
When the temperature of the controlled object changes, the working fluid in the temperature sensing part of the thermostat will produce corresponding physical phenomenon of thermal expansion and contraction (volume change of the working fluid), and the membrane box connected to the temperature sensing part will expand or contract. Through the lever principle, the switch is driven to make a constant temperature. The WZ series liquid expansion thermostat has the characteristics of accurate temperature control, stable and reliable, small temperature difference between on and off, large temperature control adjustment range, and large over-current.

Temperature control switch red bottom

Size	Load Current	Tube Length	Wire Length
Red bottom two pins (normally closed): 30-85°C	16A	6*85mm	800mm
Red bottom two pins (normally closed): 30-110°C	16A	6*70mm	750mm
Red bottom two pins (normally closed): 30-150°C	16A	6*65mm	1250mm
Red bottom two pins (normally closed): 50-300°C (short rod)	16A	6*45mm	750mm
Red bottom two pins (normally closed): 50-300°C (long rod)	16A	3*155mm	850mm
Red bottom two pins (normally closed): 30-110°C	16A	6*70mm	2000mm
Red bottom two pins (normally closed): 50-300°C	16A	6*45mm	2000mm
Red bottom three pins (normally closed/normally open): 30-110°C	16A	6*70mm	750mm
Red bottom three pins (normally closed/normally open): 50-300°C	16A	6*45mm	750mm

temperature control switch white bottom

Size	Load current	tube length	wire length
white bottom three pins (normally closed): 30-110°C	16A	6*70mm	750mm
White bottom three pins (normally closed/normally open): 50-300°C (short rod)	16A	6*45mm	750mm
White bottom three pins (normally closed/normally open): 50-300°C ((long rod)	16A	4*75mm	750mm
White base three pins (normally closed/normally open): 30-110°C	16A	6*70mm	2000mm
White bottom three pin (normally closed/normally open): 50-300°C	16A	6*45mm	2000mm

380V temperature control switch white bottom six pins

Size	Load current	tube length	wire length
380V white bottom six pins (normally closed): 30-110°C	16A	6*75mm	900mm
380V white bottom six pins (normally closed): 50-300°C	16A	3*100mm	800mm

Low temperature temperature switch

Size	Load current	tube length	wire length
Normally closed/normally open): ±30℃	16A	6*105mm	1600mm
Normally closed/normally open): 0-40℃	16A	6*120mm	1600mm
Normally closed/normally open): 0-50℃	16A	6*120mm	1600mm
Normally closed/normally open): 0-60℃	16A	6*105mm	1600mm

Types of Temperature Control Switches

Mechanical Thermostats

Use bimetallic strips or gas-filled bellows to open/close circuits.

Simple, durable, and cost-effective.

Example: Traditional home thermostats.

Electronic/Digital Thermostats

Use thermistors or RTDs (Resistance Temperature Detectors) for precise readings.

Programmable with digital displays.

Example: Smart thermostats like Nest or Honeywell.

Capillary Thermostats

Use a temperature-sensitive fluid in a capillary tube to actuate a switch.

Common in refrigerators and air conditioners.

Solid-State Temperature Switches

Use semiconductor-based sensors (like thermocouples or IC sensors).

High accuracy, no moving parts, long lifespan.
