ACCURATE TEMPERATURE SENSING
Mini K-Type Thermocouple
Mini K-Type Thermocouple manufactured by LICHENGDA with configurable thermocouple type, temperature range, probe dimensions, sheath, process connection and lead arrangement for industrial measurement.
ENGINEERING GUIDANCE
Specify this product correctly
The miniature format supports confined equipment and faster response. Mechanical protection, cable transition and repeated-flex requirements should be evaluated before reducing probe diameter.
Thermocouple type, operating range, probe dimensions, sheath, process connection and lead arrangement are reviewed against your process before production.
- ✓ J, K, R, S, B and PT100 options
- ✓ Probe, bayonet, bolt-on and connection-head styles
- ✓ Custom sheath diameter and insertion length

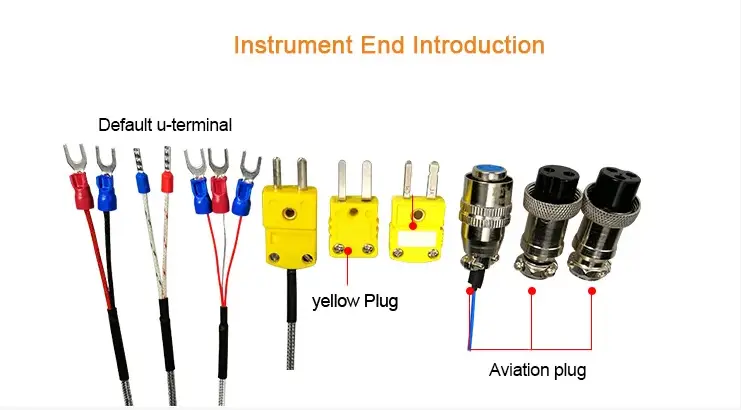

- ✓ Matched leads, plugs and mounting fittings
REFERENCE SPECIFICATIONS
Available configuration
| Sensor types | Thermocouple / PT100 RTD |
|---|---|
| Temperature range | Application dependent, up to 1800°C |
| Sheath | Stainless steel / ceramic / specialty alloy |
| Mounting | Threaded, flange, bayonet, surface |
| Applications | Industrial equipment and process control |
TYPICAL APPLICATIONS
Where this product is used
- Furnaces and kilns
- High-temperature process control
- Metallurgy and heat treatment
QUOTE CHECKLIST
Send these details
- Thermocouple or RTD type
- Continuous and peak temperature
- Probe diameter and insertion length
- Sheath, process connection and lead requirements
- Sample and production quantity

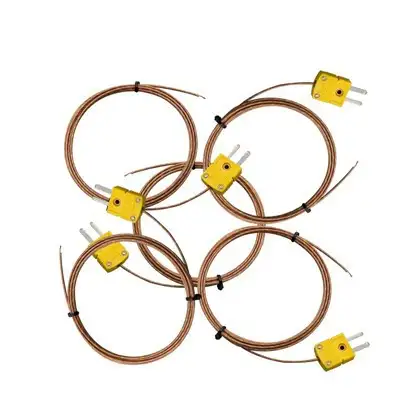

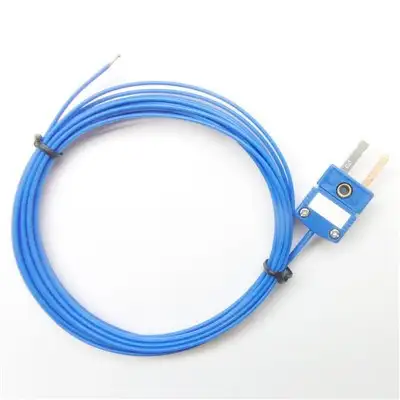

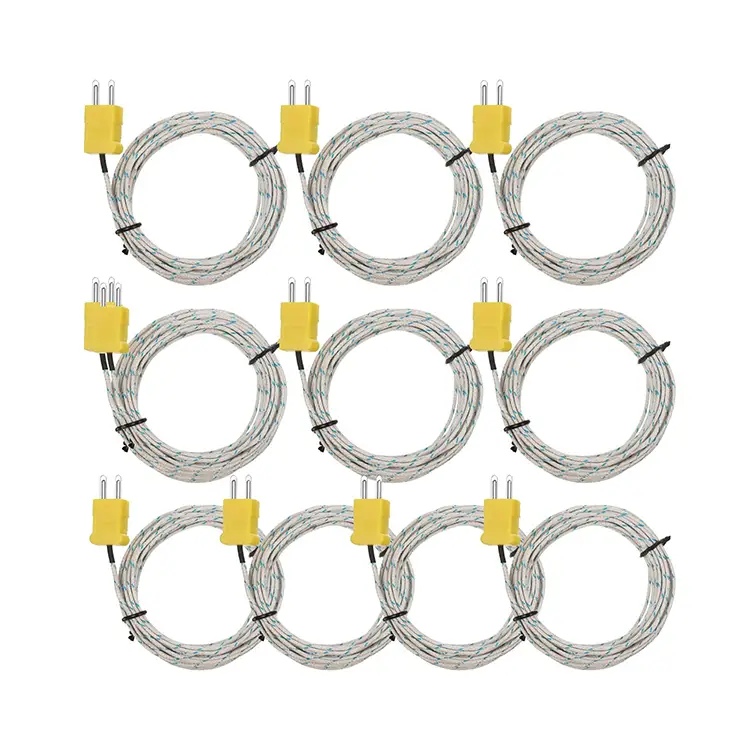

Product image gallery (7)
PRODUCT ENGINEERING
Thermocouple alloy and junction selection
Mini K-Type Thermocouple: Match thermocouple type, polarity and extension cable to the controller input. Select protection-tube material and grounded or ungrounded junction for the atmosphere, electrical noise and response required.
Define insertion depth and the mechanical support at the process connection. A temperature stated in a product name needs confirmation for the complete probe assembly, cable transition and continuous duty.
The archived configuration for Mini K-Type Thermocouple lists tube diameter: customized; Stainless steel material: Default 304 stainless steel ,customized 2520/3039/316. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Mini K-Type Thermocouple, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Industrial temperature monitoring and furnace control. The final suitability of Mini K-Type Thermocouple depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| tube diameter | customized |
|---|---|
| type | K ,J, E, T |
| Wiring terminal | 2 wire ,3 wire ,4 wire |
| Stainless steel material | Default 304 stainless steel ,customized 2520/3039/316 |
ARCHIVED PRODUCT INFORMATION
Description
Thermocouple is a temperature measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit
Thermocouples are a widely used type of temperature measurement and control,and can also convert a temperature gradient into electricity. Commercial thermocouples are inexpensive,interchangeable, are supplied with standard connectors, and can measure a wide range of temperatures.
|
tube diameter |
customized |
|
type |
K ,J, E, T |
|
Wiring terminal |
2 wire ,3 wire ,4 wire |
|
Stainless steel material |
Default 304 stainless steel ,customized 2520/3039/316 |

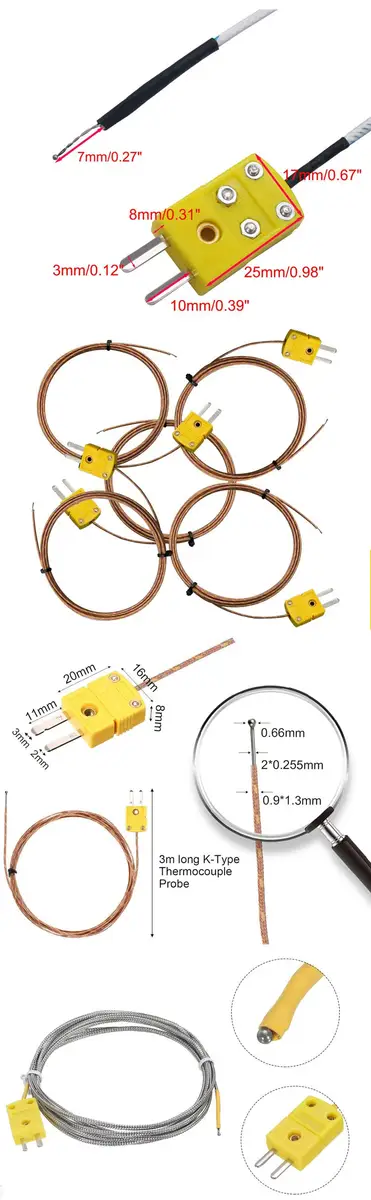

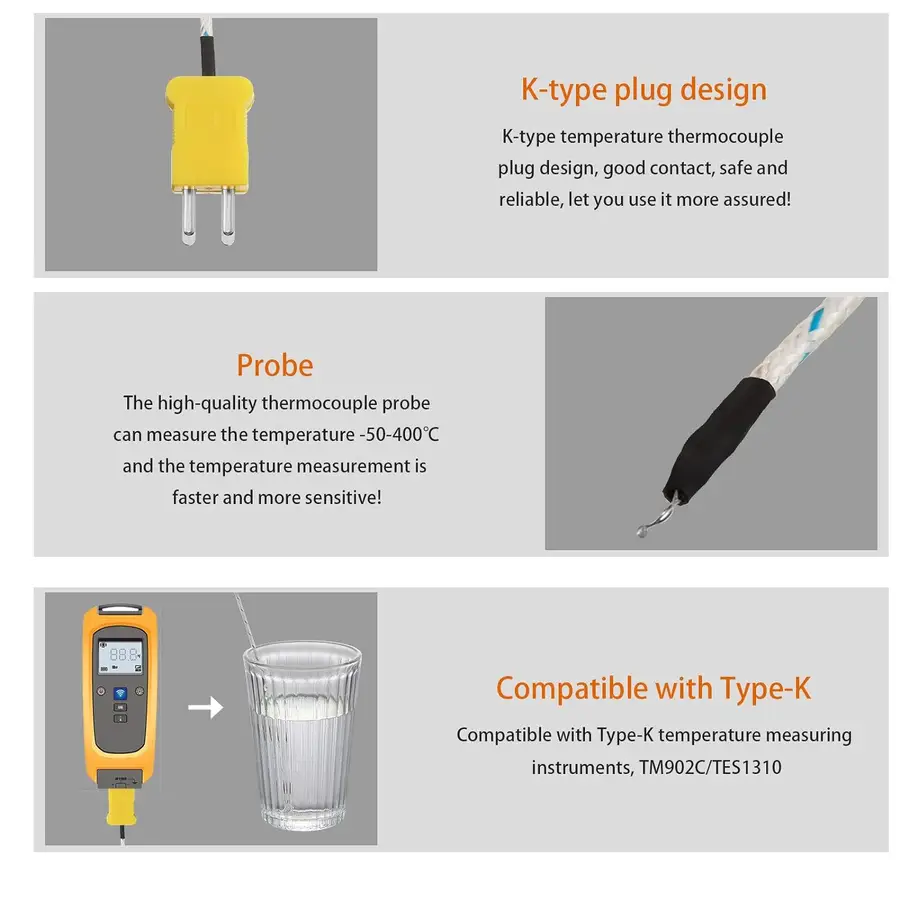

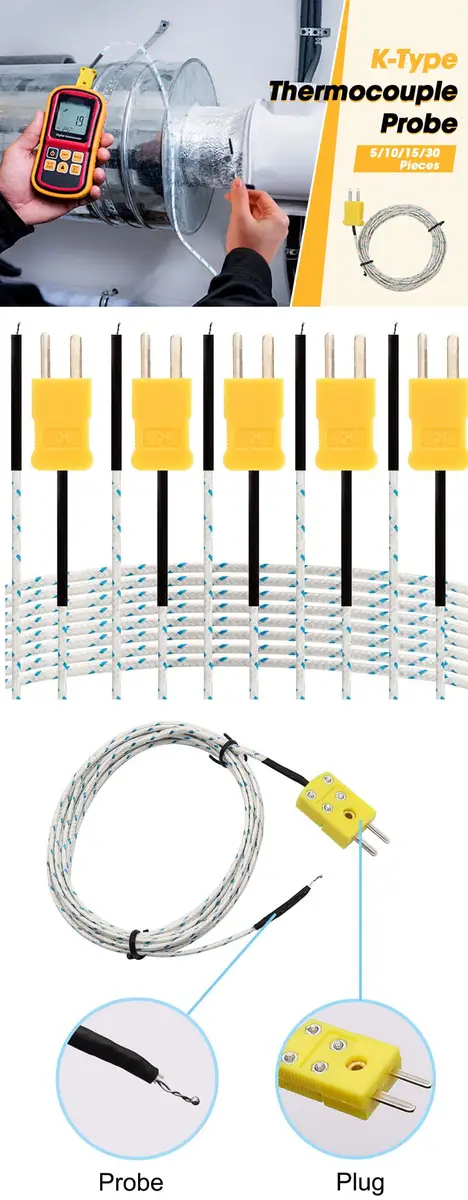

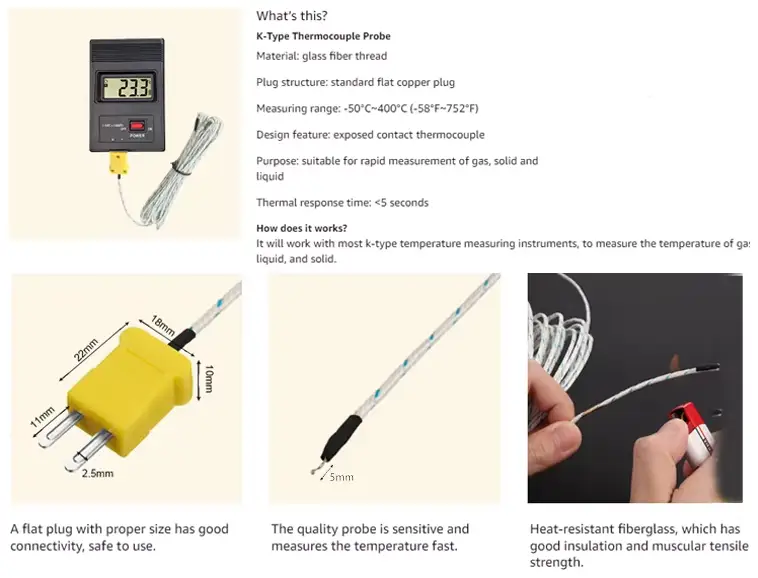

Measurement range: the measure range of the temperature sensing line is -58 to 752 °F (-50 to 400 °C); And the probe sensor can effect in 5 second with the accuracy degree 0.025 or 0.075; The interface form is flat plug-in
Wide Applications: for general purpose temperature applications, the k type mini-connector is fastly response that is suitable for rapid measurement of air and gas, not suitable for liquid measurement; Allows forming and bending of the thermocouple, so you don't need to worry about the risk of cracking

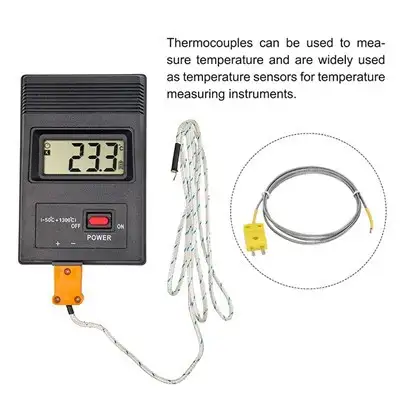

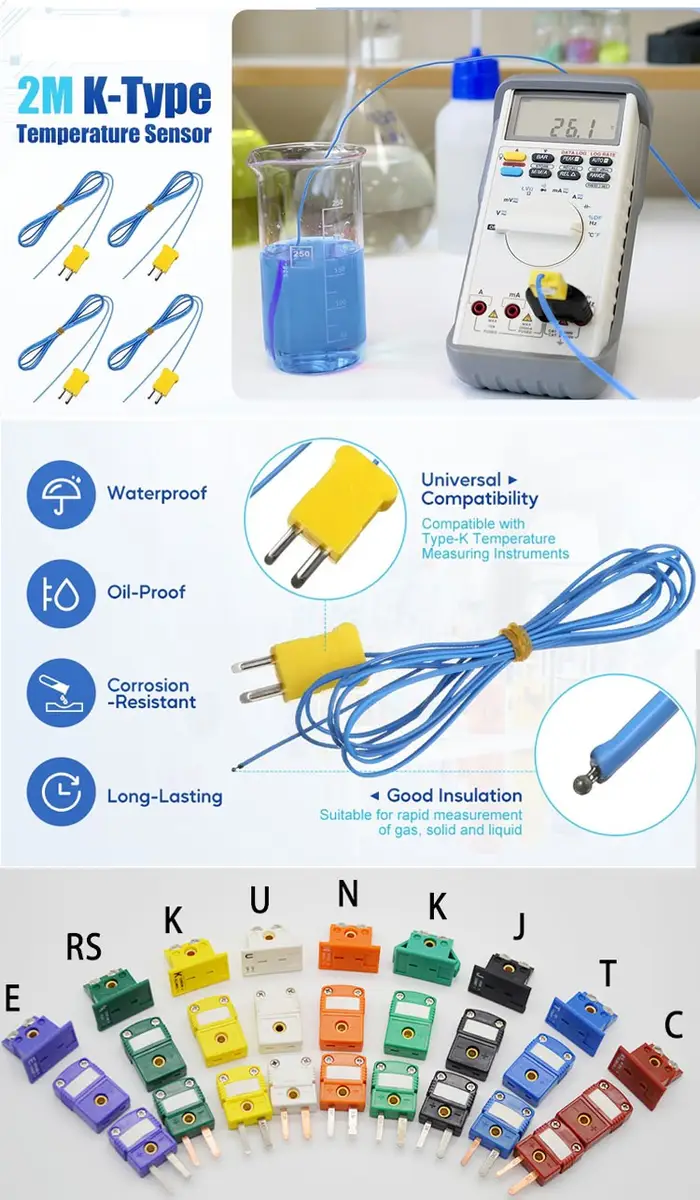

Universal compatiblity: the thermocouple wires can compatible with most k type temperature measuring instruments, they can compatible with TM902C and TES1310

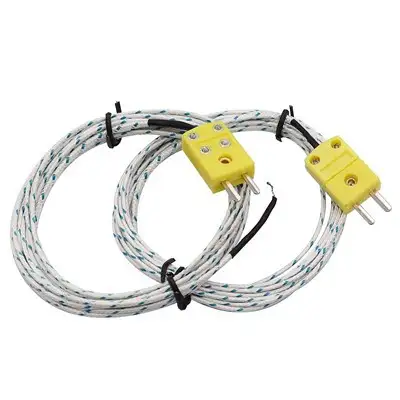

Good insulation : the k type probe sensor is made of the fiberglass, which has good insulation, strong heat resistance and strong tensile strength
Product Advantage
1:High temperature resistance, flexible, anti-corrosion, fast and accurate temperature measurement
2:High temperature resistant Extension wire
3:Arbitrary bending, high temperature resistance, long service life, fast response speed, fixed spring
4:High Precision Temperature control probe
5:Quick response,OEM Accepted
