ACCURATE TEMPERATURE SENSING
K-Type Thermocouple
K-Type Thermocouple manufactured by LICHENGDA with configurable thermocouple type, temperature range, probe dimensions, sheath, process connection and lead arrangement for industrial measurement.
ENGINEERING GUIDANCE
Specify this product correctly
A versatile thermocouple choice for general industrial temperature measurement. Select grounded or ungrounded junction, sheath alloy, probe diameter and connector style for the required response time.
Thermocouple type, operating range, probe dimensions, sheath, process connection and lead arrangement are reviewed against your process before production.
- ✓ J, K, R, S, B and PT100 options

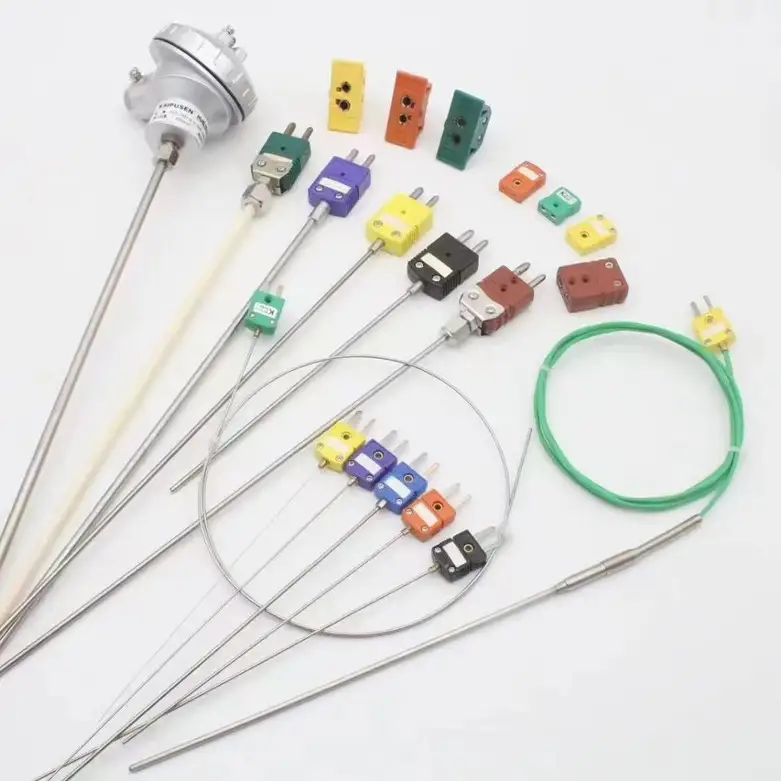

- ✓ Probe, bayonet, bolt-on and connection-head styles
- ✓ Custom sheath diameter and insertion length

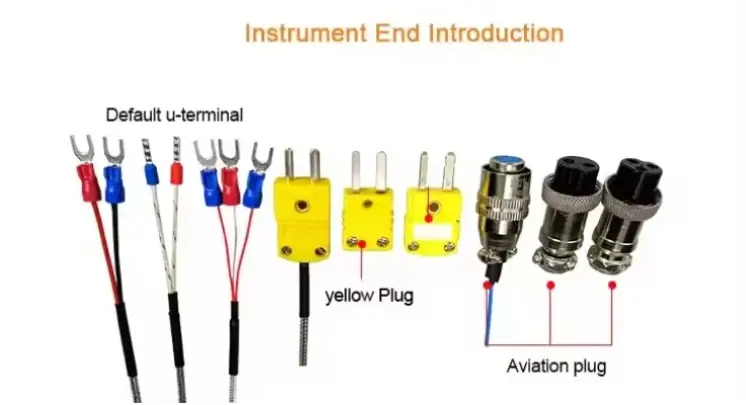

- ✓ Matched leads, plugs and mounting fittings
REFERENCE SPECIFICATIONS
Available configuration
| Sensor types | Thermocouple / PT100 RTD |
|---|---|
| Temperature range | Application dependent, up to 1800°C |
| Sheath | Stainless steel / ceramic / specialty alloy |
| Mounting | Threaded, flange, bayonet, surface |
| Applications | Industrial equipment and process control |
TYPICAL APPLICATIONS
Where this product is used
- Furnaces and kilns
- High-temperature process control
- Metallurgy and heat treatment
QUOTE CHECKLIST
Send these details
- Thermocouple or RTD type
- Continuous and peak temperature
- Probe diameter and insertion length
- Sheath, process connection and lead requirements
- Sample and production quantity
Product image gallery (6)
PRODUCT ENGINEERING
Thermocouple alloy and junction selection
K-Type Thermocouple: Match thermocouple type, polarity and extension cable to the controller input. Select protection-tube material and grounded or ungrounded junction for the atmosphere, electrical noise and response required.
Define insertion depth and the mechanical support at the process connection. A temperature stated in a product name needs confirmation for the complete probe assembly, cable transition and continuous duty.
The archived configuration for K-Type Thermocouple lists Tube diameter: min 1mm; Spring length: 70mm; Stainless steel material: Default 304 stainless steel ,customized 2520/3039/316. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For K-Type Thermocouple, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Industrial temperature monitoring and furnace control. The final suitability of K-Type Thermocouple depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Tube diameter | min 1mm |
|---|---|
| K type | 0-1250℃ |
| E type | 0-400℃ |
| PT100 | 0-500℃ |
| Spring length | 70mm |
| Wiring terminal | 2 wire (K/JE/T),3 wire or 4 wire (PT100) |
| Stainless steel material | Default 304 stainless steel ,customized 2520/3039/316 |
ARCHIVED PRODUCT INFORMATION
Description
Thermocouple is a temperature measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit
Thermocouples are a widely used type of temperature measurement and control,and can also convert a temperature gradient into electricity. Commercial thermocouples are inexpensive,interchangeable, are supplied with standard connectors, and can measure a wide range of temperatures.
|
Tube diameter |
min 1mm |
|
K type |
0-1250℃ |
|
E type |
0-400℃ |
|
PT100 |
0-500℃ |
|
Spring length |
70mm |
|
Wiring terminal |
2 wire (K/JE/T),3 wire or 4 wire (PT100) |
|
Stainless steel material |
Default 304 stainless steel ,customized 2520/3039/316 |
K type thermocouple is a type of thermocouple that is commonly used to measure temperatures in a variety of industrial and scientific applications.
It is made of two different types of metals, usually chromel and alumel, that are joined together to form a junction.
Product Advantage

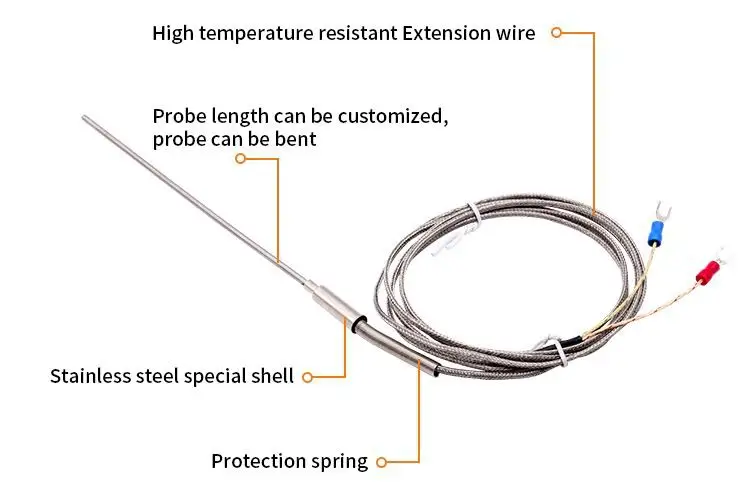

1:High temperature resistance, flexible, anti-corrosion, fast and accurate temperature measurement
2:High temperature resistant Extension wire

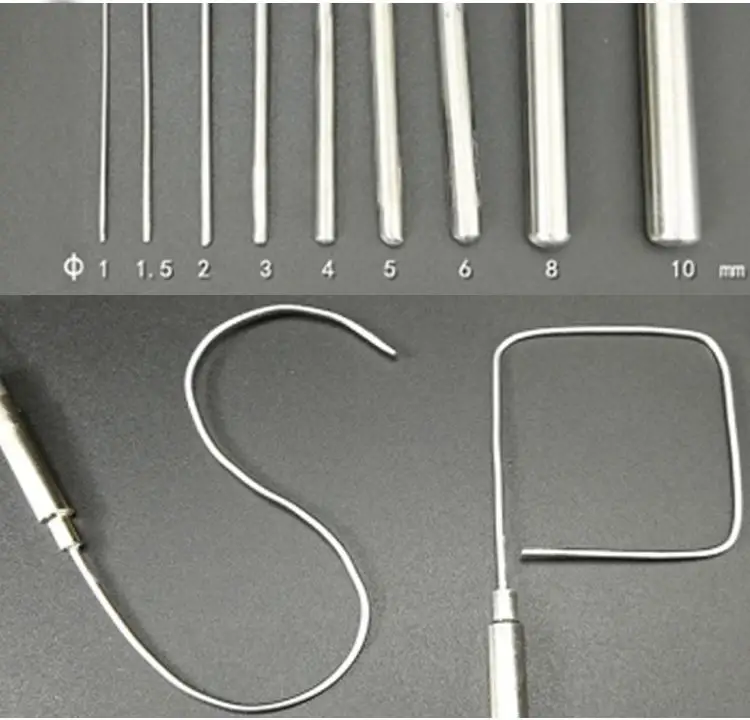

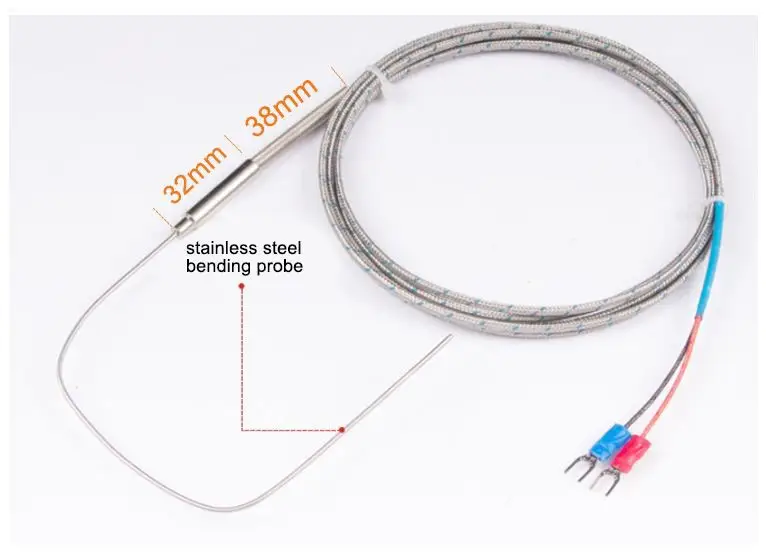

3:Probe length can be customized, probe can be bent

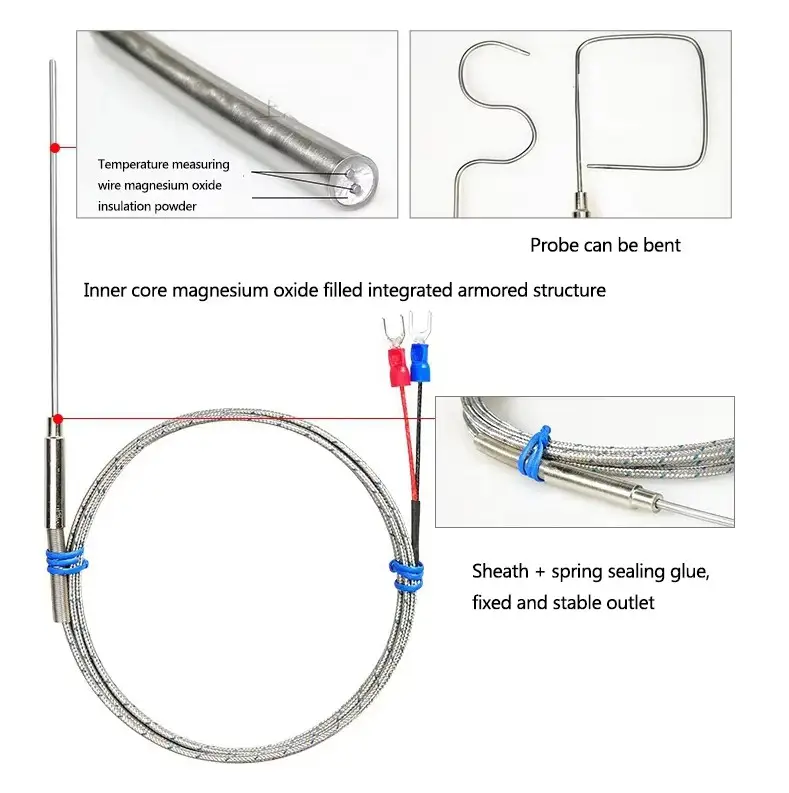

4:Arbitrary bending, high temperature resistance, long service life, fast response speed, fixed spring
5:High Precision Temperature control probe
6:Quick response,OEM Accepted
When the junction is exposed to a temperature difference, a voltage is generated across the junction, which can be measured and used to determine the temperature.
The K type thermocouple has a temperature range of approximately -200°C to 1350°C and is commonly used in furnaces, kilns, and other high-temperature applications.
One of the advantages of the K type thermocouple is its relatively low cost compared to other types of thermocouples.
It also has good accuracy and stability over a wide temperature range, making it a popular choice for many applications.
Related Product Recommendation
Company Profile
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability of product quality
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: thermocouple k, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, ceramic k type thermocouple, Platinum Rhodium Thermocouple, 4 Wires Rtd Pt100 Thermocouple Sensor, industrial waterproof rtd pt100 sensor, Temperature Sensor K Type Thermocouple, k type screw type thermocouple
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
