j type Temperature Sensor thermocouple bayonet
j type Temperature Sensor thermocouple bayonet by LICHENGDA. Thermocouple alloy and junction selection, configuration details and made-to-drawing quotation for industrial temperature monitoring and furnace control.
Product image gallery (6)
PRODUCT ENGINEERING
Thermocouple alloy and junction selection
j type Temperature Sensor thermocouple bayonet: Match thermocouple type, polarity and extension cable to the controller input. Select protection-tube material and grounded or ungrounded junction for the atmosphere, electrical noise and response required.
Define insertion depth and the mechanical support at the process connection. A temperature stated in a product name needs confirmation for the complete probe assembly, cable transition and continuous duty.
The archived configuration for j type Temperature Sensor thermocouple bayonet lists Customized thread size: M8*1/M8*1.25/M10*1/M10*1.25/M12*1M/M12*1.25; Tube diameter: 5mm(Stander) 3mm/4mm or customized; Tube length: 30mm or customized; Wire diameter: 2*0.4mm. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For j type Temperature Sensor thermocouple bayonet, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Industrial temperature monitoring and furnace control. The final suitability of j type Temperature Sensor thermocouple bayonet depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.

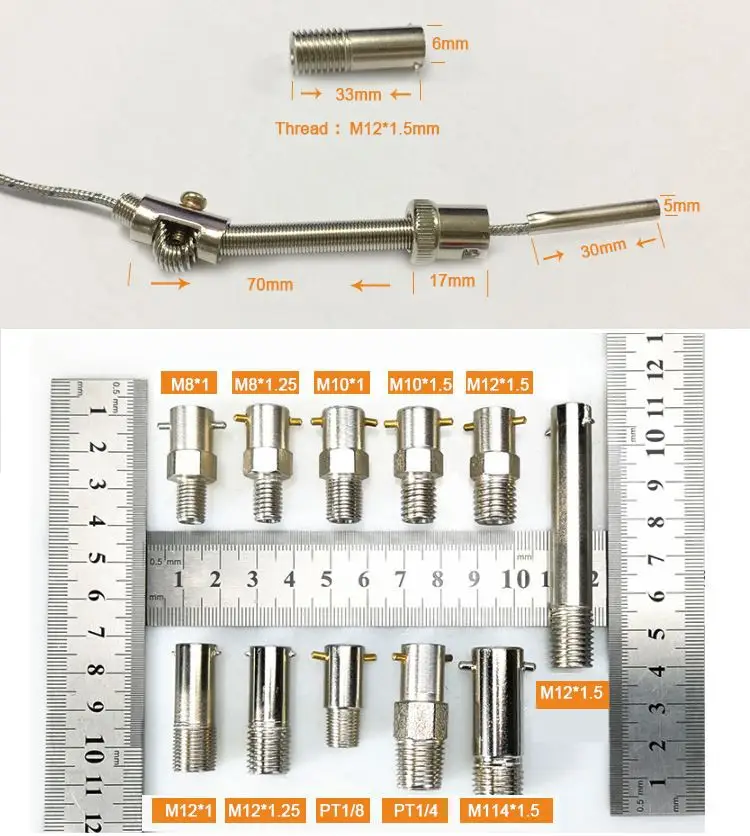

| Thread | Stander size M12*1.5 |
|---|---|
| Customized thread size | M8*1/M8*1.25/M10*1/M10*1.25/M12*1M/M12*1.25 |
| Tube diameter | 5mm(Stander) 3mm/4mm or customized |
| Tube length | 30mm or customized |
| Wire diameter | 2*0.4mm |
| K type | 0-800 ℃ |
| E type | 0-400 ℃ |
| J type | -45-300℃ |
| Pt100 | -45+300 ℃ |
ARCHIVED PRODUCT INFORMATION
Description
A thermocouple is a temperature-measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit. Thermocouples are a widely used type of temperature sensorfor measurement and control,and can also convert a temperature gradient into electricity. Commercial thermocouples are inexpensive,interchangeable, are supplied with standard connectors, and can measure a wide range of temperatures. In contrast to most other methods of temperature measurement, thermocouples are self powered and require no external form of excitation
Thread | Stander size M12*1.5 |
Customized thread size | M8*1/M8*1.25/M10*1/M10*1.25/M12*1M/M12*1.25 |
Tube diameter | 5mm(Stander) 3mm/4mm or customized |
Tube length | 30mm or customized |
Wire diameter | 2*0.4mm |
K type | 0-800 ℃ |
E type | 0-400 ℃ |
J type | -45-300℃ |
Pt100 | -45+300 ℃ |

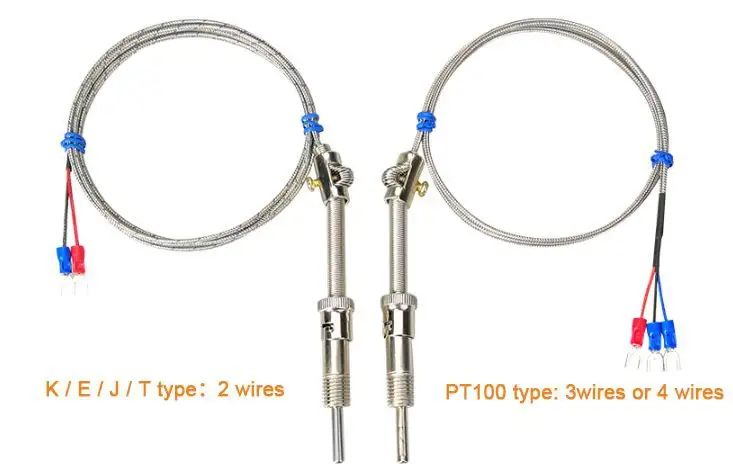

k/E/J/T TYPE 2 wire，pt100 type ：3 wire ，4 wire
Product Advantages

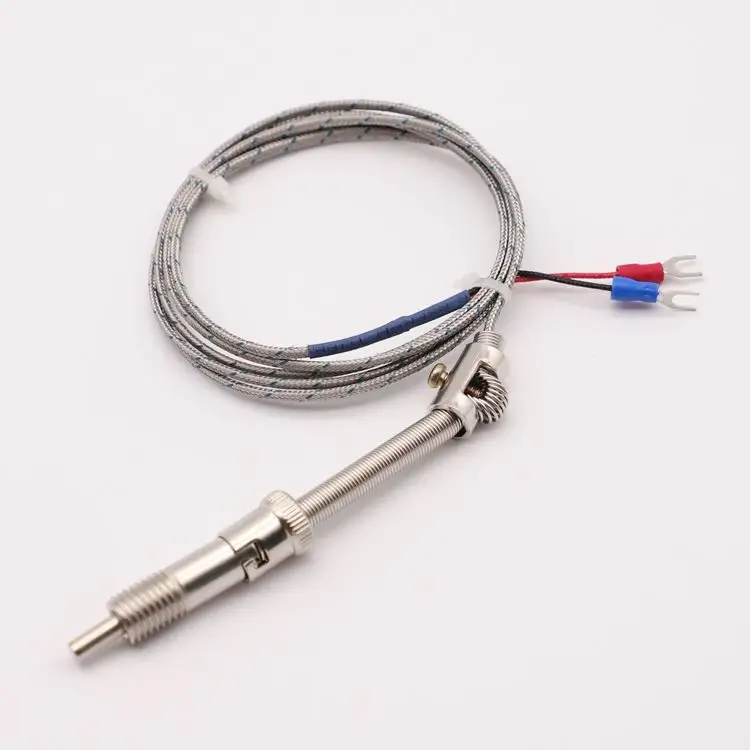

1:Screw length adjustement,M12 thread with spring
2:Precision metal anti-interference Extension wire
3:High Precision Temperature control probe ,Adjustable probe size
4:Wide range of temperature measurement,Quick response
5:Stainless steel rust protection tube
Application of k type spring bayonet thermocouple temperature sensor
1. Widely Used In Science and Industry
2. Temperature Measurement for kilns
3.Gas Turbine Exhaust Application
4. Used For Diesel Engines and Other Industrial Processes
foucs on temperature sensor over 20+ experience manufacture certificate：CE ,ROHS,ISO 100+ workers OEM/ODM fast delivery ，good quality
Hot Tags: j type Temperature Sensor thermocouple bayonet, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, ceramic b type thermocouple, k type pt100 thermocouples rtd, Platinum Rhodium Thermocouple, Stainless Steel PT100 Rtd Thermocouple, ceramic k type thermocouple, rtd thermocouple pt100 temperature sensor
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
