ACCURATE TEMPERATURE SENSING
High Temperature Senso J Type Bayonet Thermocouple
High Temperature Senso J Type Bayonet Thermocouple by LICHENGDA. Thermocouple alloy and junction selection, configuration details and made-to-drawing quotation for industrial temperature monitoring and furnace control.
Product image gallery (7)
PRODUCT ENGINEERING
Thermocouple alloy and junction selection
High Temperature Senso J Type Bayonet Thermocouple: Match thermocouple type, polarity and extension cable to the controller input. Select protection-tube material and grounded or ungrounded junction for the atmosphere, electrical noise and response required.
Define insertion depth and the mechanical support at the process connection. A temperature stated in a product name needs confirmation for the complete probe assembly, cable transition and continuous duty.
The archived configuration for High Temperature Senso J Type Bayonet Thermocouple lists The probe material: Ferroalloy; Thread Size: M8; Internal insulation material: Fiberglass; External shielding material: Fiberglass. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For High Temperature Senso J Type Bayonet Thermocouple, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Industrial temperature monitoring and furnace control. The final suitability of High Temperature Senso J Type Bayonet Thermocouple depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Name | Spring thermocouple |
|---|---|
| Index number | E/j/pt100 |
| The probe material | Ferroalloy |
| Thread Size | M8 |
| Internal insulation material | Fiberglass |
| External shielding material | Fiberglass |
| Tail length | 1m |
| Temperature range | 0~600°C |
ARCHIVED PRODUCT INFORMATION
Description

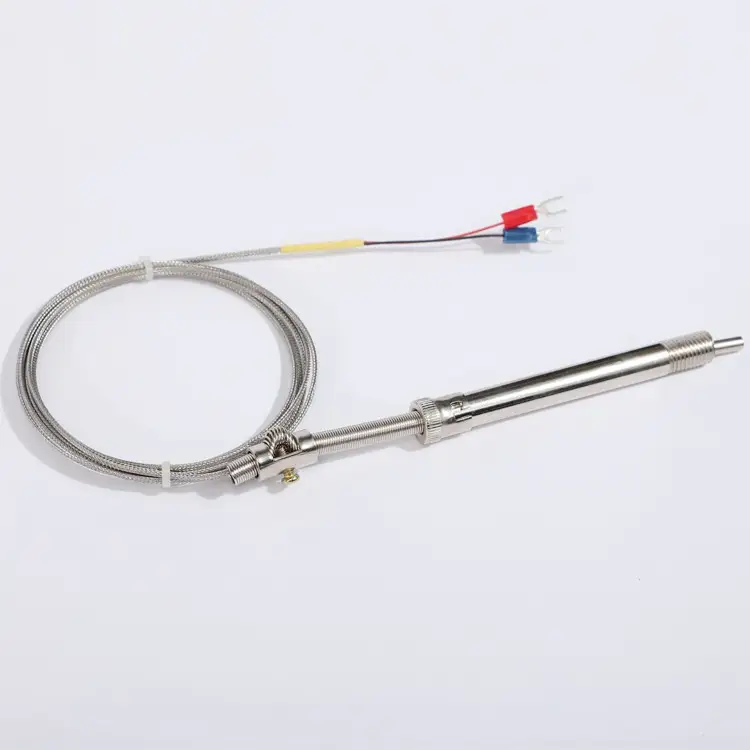

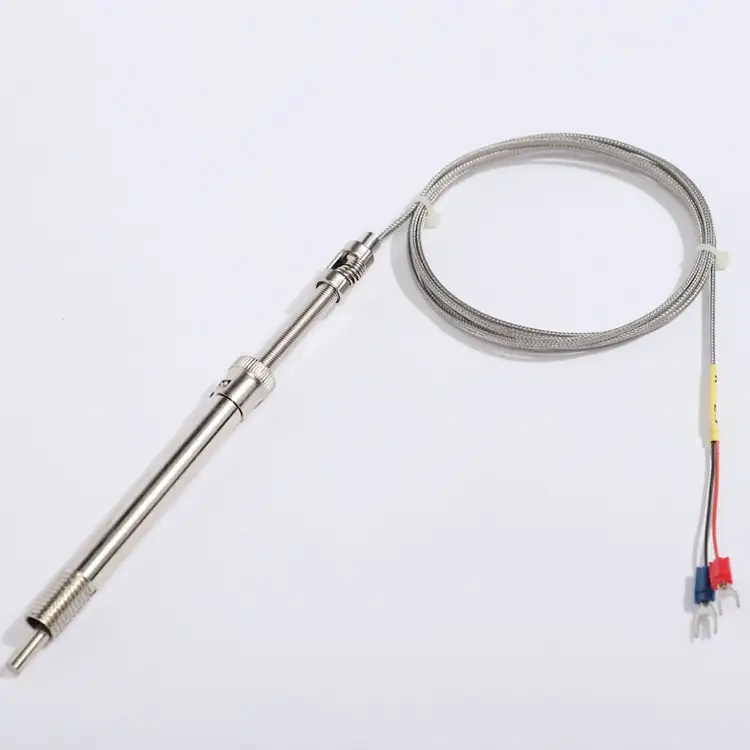

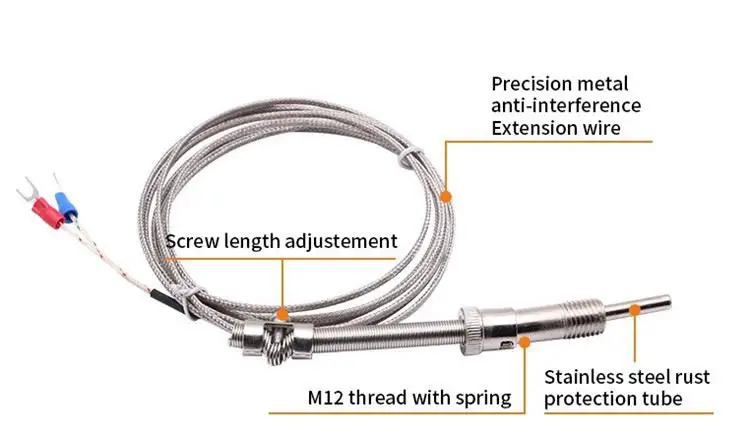

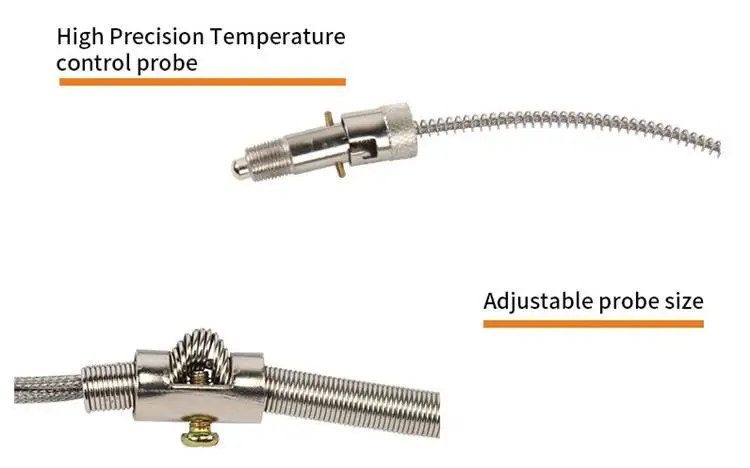

The compression spring thermocouple closely contacts the end of the thermocouple with the surface of the object to be tested by the compression spring to improve the reliability and accuracy of the measurement. The compression spring type fixed thermocouple can directly measure the temperature in the range of 0~600°C when it is used with the display instrument. The compression spring type fixed thermocouple has a flexible extension wire, which can be bent freely and has a small thermal response time. It is easy to use and suitable for plastic extruder, textile, food and other industries.
| Name | Spring thermocouple |
| Index number | E/j/pt100 |
| The probe material | Ferroalloy |
| Thread Size | M8 |
| Internal insulation material | Fiberglass |
| External shielding material | Fiberglass |
| Tail length | 1m |
| Temperature range | 0~600°C |
Hot Tags: high temperature senso j type bayonet thermocouple, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, 3 Wire RTD Temperature Sensor PT100, Thermocouple, pt100 temperature sensor 3 wires, Screw Pt100 Rtd Temperature Sensor, thermocouple temperature sensor type s, K Type Bayonet Spring Thermocouple
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
