99.9% 95% Alumina Corundum Protection Thermocouple Tube
99.9% 95% Alumina Corundum Protection Thermocouple Tube by LICHENGDA. Thermocouple alloy and junction selection, configuration details and made-to-drawing quotation for industrial temperature monitoring and furnace control.
Product image gallery (4)
PRODUCT ENGINEERING
Thermocouple alloy and junction selection
99.9% 95% Alumina Corundum Protection Thermocouple Tube: Match thermocouple type, polarity and extension cable to the controller input. Select protection-tube material and grounded or ungrounded junction for the atmosphere, electrical noise and response required.
Define insertion depth and the mechanical support at the process connection. A temperature stated in a product name needs confirmation for the complete probe assembly, cable transition and continuous duty.
The archived configuration for 99.9% 95% Alumina Corundum Protection Thermocouple Tube lists 95/99 Corundum tube Specifications (inner diameter * outer diameter): 2*4 /3*5 /3.5*6 / 5*8 / 6*10 / 8*12 11*16 / 13*18 / 16*22 / 15*20 /19*25 /24*30 / 26*32 / 28*35 / 31*38 /32*40 / 42*50.5 / 52*60. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For 99.9% 95% Alumina Corundum Protection Thermocouple Tube, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Industrial temperature monitoring and furnace control. The final suitability of 99.9% 95% Alumina Corundum Protection Thermocouple Tube depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| product name | 95/99 Corundum tube |
|---|---|
| 95/99 Corundum tube Specifications (inner diameter * outer diameter) | 2*4 /3*5 /3.5*6 / 5*8 / 6*10 / 8*12 11*16 / 13*18 / 16*22 / 15*20 /19*25 /24*30 / 26*32 / 28*35 / 31*38 /32*40 / 42*50.5 / 52*60 |
ARCHIVED PRODUCT INFORMATION
Description
| product name | 95/99 Corundum tube |
| 95/99 Corundum tube Specifications (inner diameter * outer diameter) |
2*4 /3*5 /3.5*6 / 5*8 / 6*10 / 8*12 11*16 / 13*18 / 16*22 / 15*20 /19*25 /24*30 / 26*32 / 28*35 / 31*38 /32*40 / 42*50.5 / 52*60 |
Features:

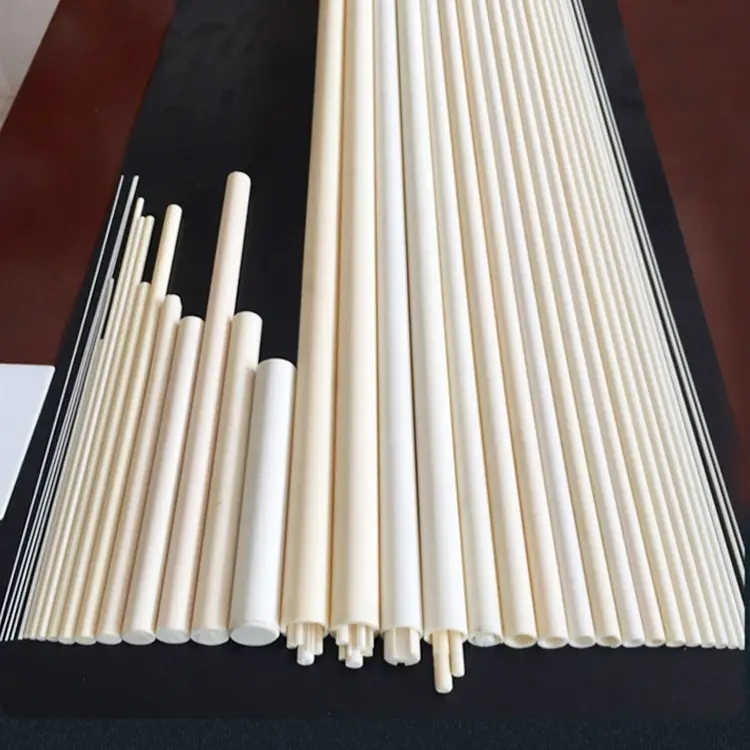

1.Materials: 95% alumina oxide, 99.5% alumina oxide

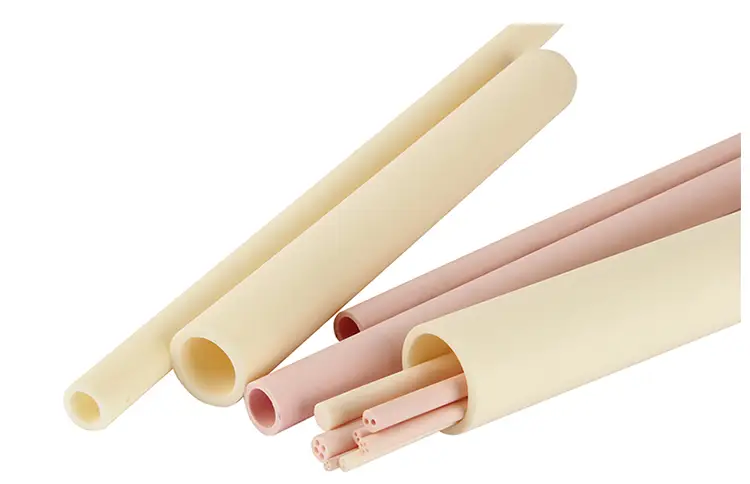

2.Color: white, pink, light yellow

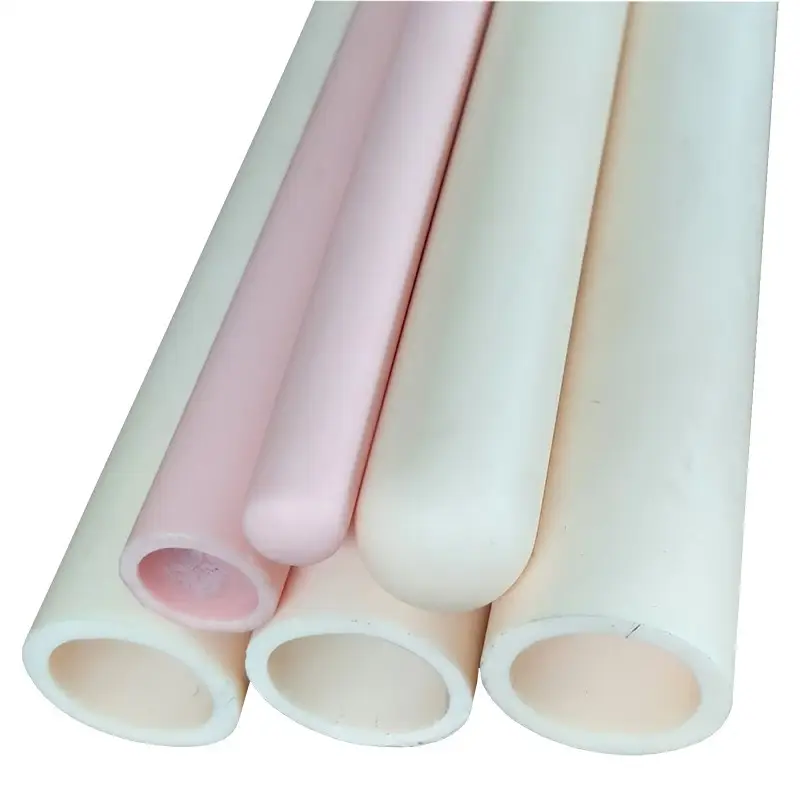

3.Shape: one end closed
4.Application: Used for all kinds of electric heating equipment and electric equipment, and textile machinery
Hot Tags: 99.9% 95% alumina corundum protection thermocouple tube, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, rtd thermocouple pt100 temperature sensor, thermocouple temperature sensor pt100, high temperature k type thermocouple, 4 Wires Rtd Pt100 Thermocouple Sensor, k type screw type thermocouple, high temperature sensor thermocouple thread
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
