DIRECT LIQUID HEATING
Immersion Water Heater 240 Volt
Immersion Water Heater 240 Volt by LICHENGDA. Wetted material and minimum liquid level, configuration details and made-to-drawing quotation for tanks and process vessels.
Product image gallery (6)
PRODUCT ENGINEERING
Wetted material and minimum liquid level
Immersion Water Heater 240 Volt: Select the sheath against the actual liquid chemistry, concentration and operating temperature. Confirm insertion length and thread or flange geometry from the tank drawing.
Keep the active section submerged during operation. Review liquid-level and independent temperature protection, sediment buildup and access for scale removal before commissioning.
For Immersion Water Heater 240 Volt, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
For Immersion Water Heater 240 Volt, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Tanks and process vessels. The final suitability of Immersion Water Heater 240 Volt depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| 220V 3KW | 210mm |
|---|---|
| 220V 6KW | 250mm |
| 220V 9KW | 300mm |
| 220V 12KW | 350mm |
| 220V 15KW | 600mm |
ARCHIVED PRODUCT INFORMATION
Description
Product Description

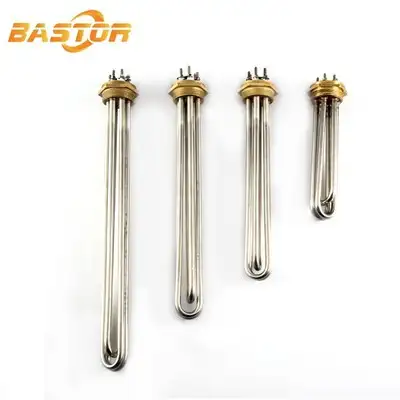

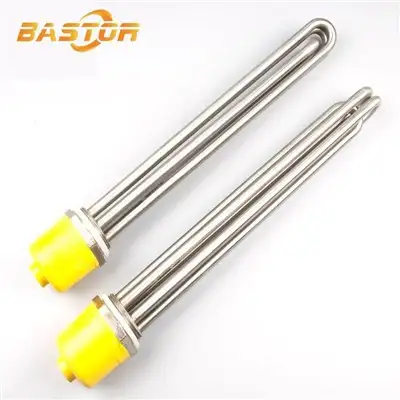

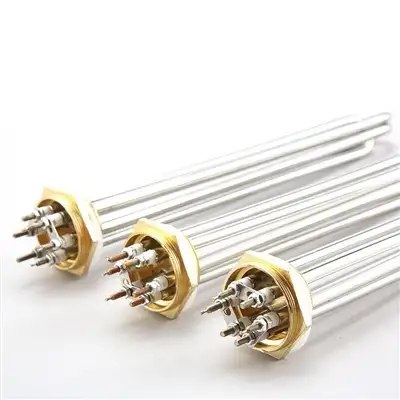

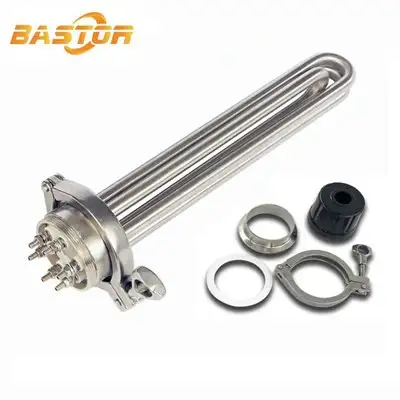

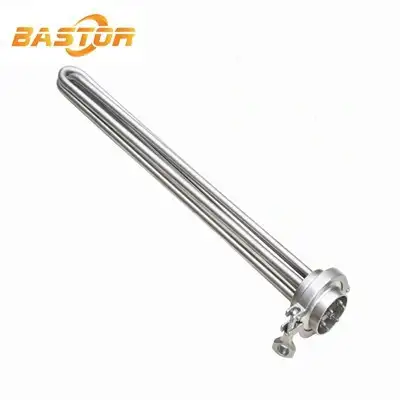

The heating pipe adopts stainless steel tube coat, modified magnesium oxide powder, high-performance
nickel-chromium electrothermal alloy wire and other materials. This series of products can be widely
used in heating water, oil, air, nitrate solution, acid solution, alkali solution and low-melting point metals
(aluminum, zinc, tin, Babbitt alloy). It has good heating efficiency, uniform temperature, high temperature
resistance, corrosion resistance and good safety performance.
| Voltage/Power | Tube length |
DN40( Dia 47mm) DN50( Dia 58mm) |
| 220V 3KW | 210mm | |
| 380V 3KW | ||
| 220V 6KW | 250mm | |
| 380V 6KW | ||
| 220V 9KW | 300mm | |
| 380V 9KW | ||
| 220V 12KW | 350mm | |
| 380V 12KW | ||
| 220V 15KW | 600mm | |
| 380V 15KW |
1: Thickened 304 stainless steel, resistant to corrosion and rust
2: High quality magnesium oxide powder, fast heating, stable performance, and long service life
3: Laser welding with mature technology and convenient installation
Uniform heating, high thermal efficiency, rapid heating, rapid heat conduction, seamless steel pipe,
corrosion and rust resistance
Uniform heating, high thermal efficiency, rapid heating, rapid heat conduction, seamless steel pipe,
corrosion and rust resistance
