DIRECT LIQUID HEATING
Immersion Heater Ptfe
Immersion Heater Ptfe by LICHENGDA. Wetted material and minimum liquid level, configuration details and made-to-drawing quotation for tanks and process vessels.
Product image gallery (7)
PRODUCT ENGINEERING
Wetted material and minimum liquid level
Immersion Heater Ptfe: Select the sheath against the actual liquid chemistry, concentration and operating temperature. Confirm insertion length and thread or flange geometry from the tank drawing.
Keep the active section submerged during operation. Review liquid-level and independent temperature protection, sediment buildup and access for scale removal before commissioning.
For Immersion Heater Ptfe, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Immersion Heater Ptfe lists Material: PTFE; Voltage: 220V/380V; Power: 1KW/2KW/3KW or customized; Tube Length Range: 200mm/300mm/400mm or customized. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Immersion Heater Ptfe, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Tanks and process vessels. The final suitability of Immersion Heater Ptfe depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.

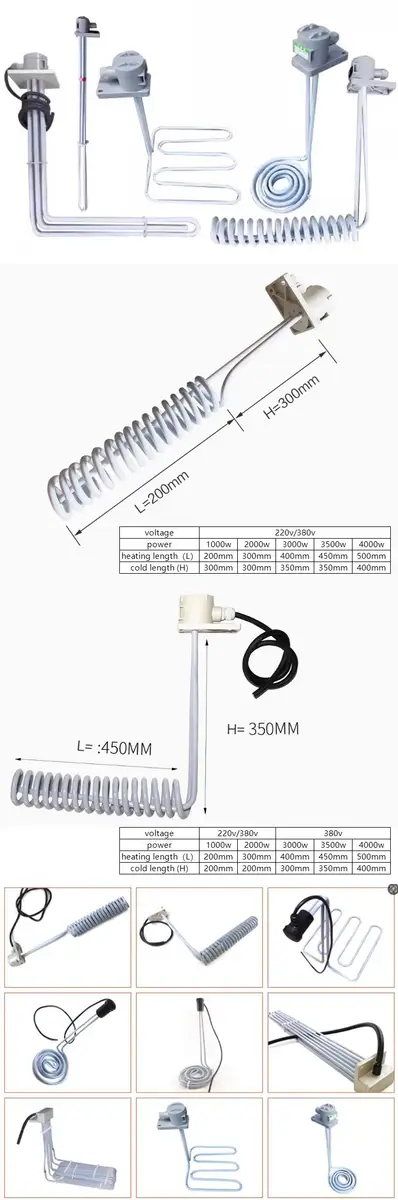

| Product Name | PTFE heating tube |
|---|---|
| Material | PTFE |
| Voltage | 220V/380V |
| Power | 1KW/2KW/3KW or customized |
| Tube Length Range | 200mm/300mm/400mm or customized |
| Tube Diameter | 8mm.10mm or customized |
ARCHIVED PRODUCT INFORMATION
Description
|
Product Name |
PTFE heating tube |
|
Material |
PTFE |
|
Voltage |
220V/380V |
|
Power |
1KW/2KW/3KW or customized |
|
Tube Length Range |
200mm/300mm/400mm or customized |
|
Tube Diameter |
8mm.10mm or customized |

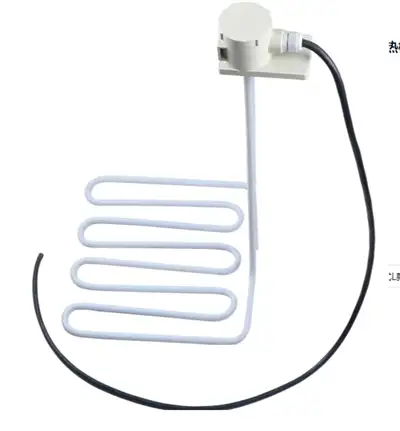

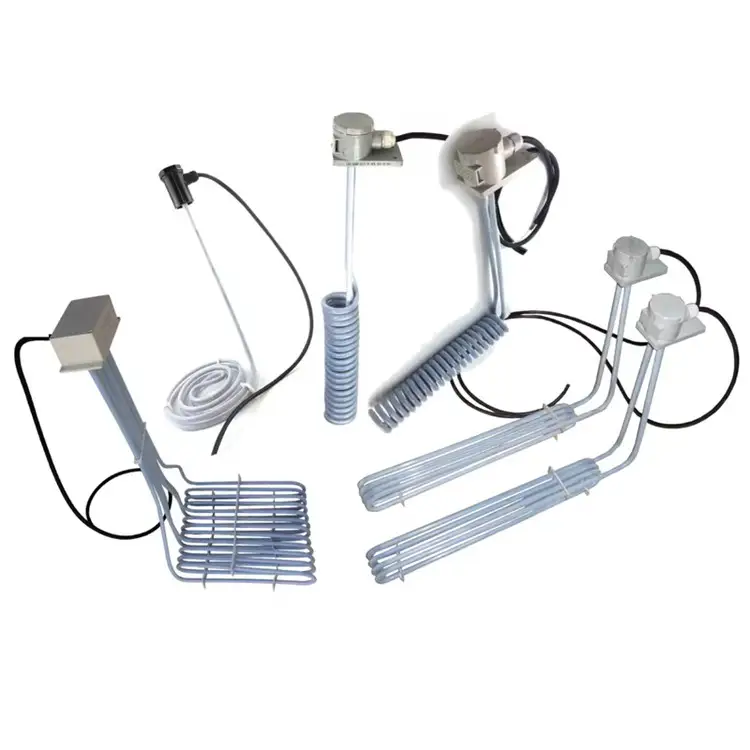

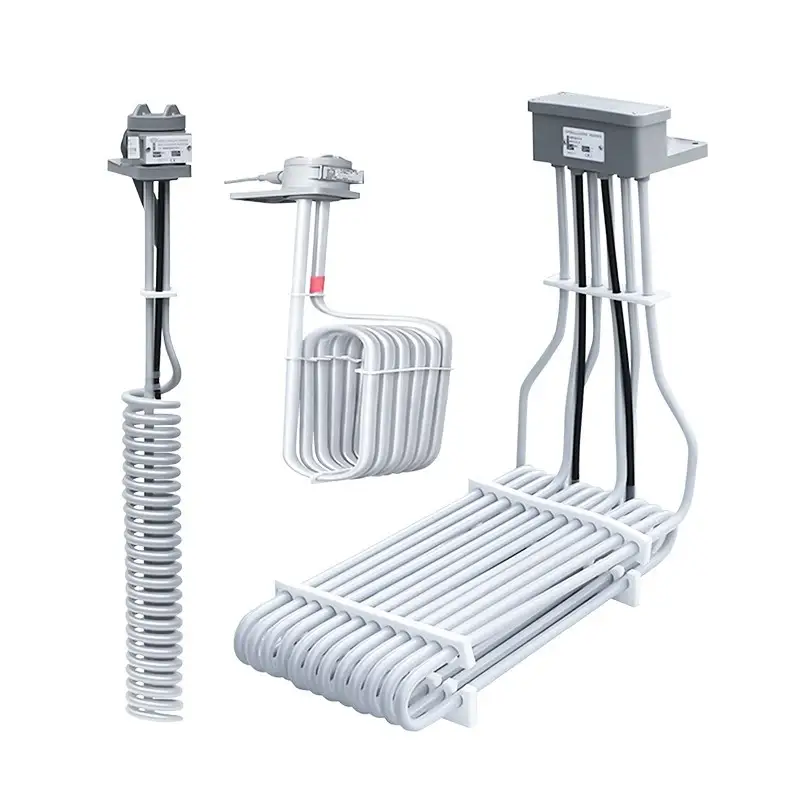

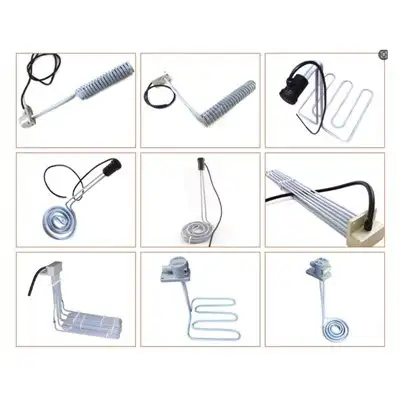

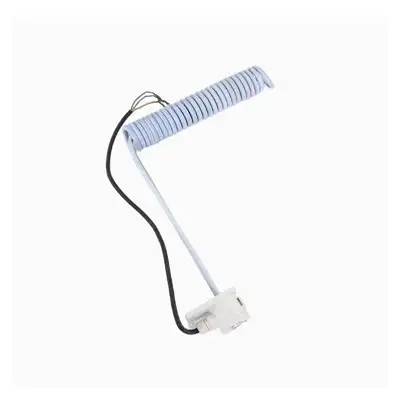

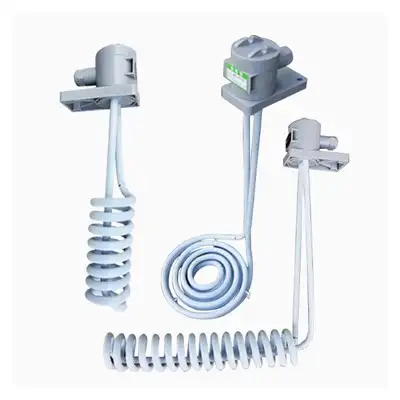

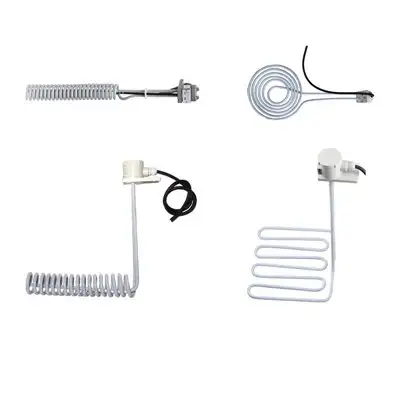

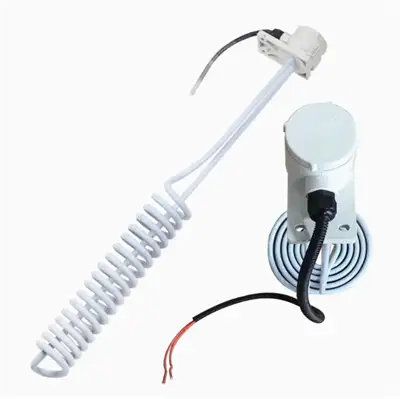

PTFE electric heating tube is a new type of highly corrosion-resistant electric heating tube used for heating various corrosive liquids. It has excellent anti-aging resistance and better winding performance, and adopts low surface load design. The joint adopts a fully enclosed anti acid and alkali non heating section and overheating safety protection system, which is fully customized according to customer needs to ensure that the heater is not easily burned out and has a long service life. It is fully sealed, non corrosive, non leakage, and equipped with grounding protection for safety and reliability. The applicable temperature is below 110 ℃. (Heating in a very thick liquid requires mixing)
1:The PTFE electric heater uses high-quality stainless steel heating tube core and PTFE outer shell, which has strong corrosion resistance and is suitable for heating various highly corrosive liquids. The electric heater adopts a low surface power design (1.5w/cm2) to ensure the service life of the product
2:The installation position of the electric heater should pay attention to preventing solid deposits in the solution from depositing on the surface of the electric heater, or if the liquid is too pure and thick, or if the liquid level is too low, it will burn out the PTFE due to poor surface heat dissipation
3:The size of the electric heater cannot be arbitrarily reduced, and reducing the surface area will result in excessive surface power of the electric heater, affecting its service life,
4:All electric heaters can be equipped with over temperature protection or PT-100 temperature sensing probes to ensure product lifespan and equipment safety
5:The joint adopts a fully enclosed acid and alkali resistant, non heating section, and overheat safety protection system, which is fully customized according to customer needs.
Company profile
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Applicant
Hot Tags: immersion heater ptfe, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, Mosquito Coil Heating Tube Element, Stainless Steel Electric Spiral Heating Element, Stainless Steel Industrial Sauna Heat Tube, Teflon Water Industrial Immersion Heater, W Type Air Finned Tubular Heater, Water Immersion Heater Element
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
