DIRECT LIQUID HEATING
Flange Heaters Industrial Oil Immersion Heater
Flange Heaters Industrial Oil Immersion Heater by LICHENGDA. Oil circulation and surface loading, configuration details and made-to-drawing quotation for oil tanks and circulating thermal systems.
Product image gallery (3)
PRODUCT ENGINEERING
Oil circulation and surface loading
Flange Heaters Industrial Oil Immersion Heater: Oil viscosity and circulation affect heat removal from the sheath. Confirm the fluid grade, cold-start temperature and permissible film temperature before agreeing the surface loading.
Specify the tank connection and active immersion length. Review circulation or level interlocks and independent over-temperature protection so stagnant oil cannot overheat locally.
For Flange Heaters Industrial Oil Immersion Heater, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Flange Heaters Industrial Oil Immersion Heater lists Power: Depends on the dimension; Power tolerance: 5%-10%. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Flange Heaters Industrial Oil Immersion Heater, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Oil tanks and circulating thermal systems. The final suitability of Flange Heaters Industrial Oil Immersion Heater depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Heat intensity | Not exceeding 30w/cm² |
|---|---|
| Power | Depends on the dimension |
| Insulation | 5 Min ohmios 500w min |
| Power tolerance | 5%-10% |
| Working temperature | 800 ℃ max |
| Warranty | 1 year |
ARCHIVED PRODUCT INFORMATION
Description

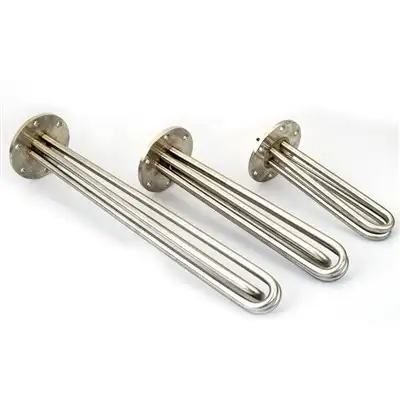

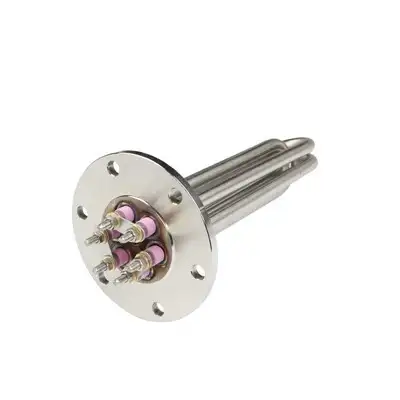

flange immersion heater is a type of immersion heater that is designed with a flanged connection for easy installation and removal in various industrial and commercial applications. It consists of a heating element housed within a metal sheath, and the flanged connection allows it to be mounted onto the walls of tanks, vessels, or pipes, with the heating element immersed directly in the liquid to be heated.
|
Heat intensity |
Not exceeding 30w/cm² |
|
Power |
Depends on the dimension |
|
Insulation |
5 Min ohmios 500w min |
|
Power tolerance |
5%-10% |
|
Working temperature |
800 ℃ max |
|
Warranty |
1 year |
Uniform heating, high thermal efficiency, rapid heating, rapid heat conduction, seamless steel pipe, corrosion and rust resistance.
Here are some key features and applications of flange immersion heaters:
Features:
Flanged Connection: The flange is a flat, circular disk with holes for bolts, making it easy to attach and secure the immersion heater to a container or vessel.
Heating Element: The heating element is usually made of a resistant material such as stainless steel, Incoloy, or other alloys, depending on the intended use and compatibility with the liquid being heated.
Terminal Enclosure: Flange immersion heaters often come with a terminal enclosure that houses the electrical connections and provides protection from moisture and environmental factors.
Thermostat or Temperature Sensor: Many flange immersion heaters are equipped with built-in thermostats or temperature sensors to regulate the liquid temperature and prevent overheating.
Applications:
Industrial Processes: Flange immersion heaters are commonly used in various industrial processes, including heating oils, chemicals, solvents, and other liquids for manufacturing, processing, and material handling.
Water Heating: They are used for heating large quantities of water in industrial boilers, water storage tanks, and heating systems.
Food and Beverage Industry: Flange immersion heaters can be employed to heat liquids in food and beverage production, such as cooking oil, chocolate, syrup, and industrial cooking vats.
Chemical Reactions: These heaters are utilized in chemical reactions and laboratory settings where precise and controlled heating is required.
Oil Industry: Flange immersion heaters are often used for heating oil in storage tanks and equipment in the oil and gas industry.
Plating and Galvanizing: They are used in metal plating and galvanizing processes, where precise temperature control is crucial for achieving desired results.
Pharmaceuticals: Flange immersion heaters are utilized for heating liquids in pharmaceutical manufacturing processes.
Water Treatment: In water treatment facilities, these heaters can be used for heating chemicals or water in various treatment processes.
Flange immersion heaters offer versatility and flexibility due to their easy installation and compatibility with a wide range of liquids and environments. Proper sizing, material selection, and control mechanisms are important considerations to ensure safe and efficient operation in specific applications.
Company Information
Xiamen Lichengda Precision Manufacturing Co., Ltd. was founded in 2003, it has a registered capital of 10 million and 100 employees. The plant covers an area of 2000 m² and owns 20+ advanced production equipment imported from home and abroad.
Main products: industrial heater elements and temperature measuring instrument.
Documentation: confirm the CE, RoHS, quality-system and test documents applicable to the quoted product and order.
Enterprise philosophy: Customer and Quality First, Product quality is the vitality of an enterprise.
Company Profile
Certificate
Hot Tags: flange heaters industrial oil immersion heater, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, Electric Water Boiler Heating Element, U Type Electric Air Fins Heater, Water Immersion Heater Element, Tubular Air Finned Heater Element, Stainless Steel Electric Spiral Heating Element, Air Tubular U Shape Heating Element
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
