DIRECT LIQUID HEATING
Fish Tank Heating Rod With Circulation
Fish Tank Heating Rod With Circulation by LICHENGDA. Wetted material and minimum liquid level, configuration details and made-to-drawing quotation for tanks and process vessels.
Product image gallery (6)
PRODUCT ENGINEERING
Wetted material and minimum liquid level
Fish Tank Heating Rod With Circulation: Select the sheath against the actual liquid chemistry, concentration and operating temperature. Confirm insertion length and thread or flange geometry from the tank drawing.
Keep the active section submerged during operation. Review liquid-level and independent temperature protection, sediment buildup and access for scale removal before commissioning.
For Fish Tank Heating Rod With Circulation, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Fish Tank Heating Rod With Circulation lists Material: titanium; Voltage: 220V/380V; Power: 500w /1KW/2KW/3KW; Tube Length Range: 290mm/425mm/525mm/720mm. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Fish Tank Heating Rod With Circulation, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Tanks and process vessels. The final suitability of Fish Tank Heating Rod With Circulation depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Product Name | Submersible heating tube |
|---|---|
| Material | titanium |
| Voltage | 220V/380V |
| Power | 500w /1KW/2KW/3KW |
| Tube Length Range | 290mm/425mm/525mm/720mm |
| Tube Diameter | 25mm |
| Wire length | 2.5M |
ARCHIVED PRODUCT INFORMATION
Description
|
Product Name |
Submersible heating tube |
|
Material |
titanium |
|
Voltage |
220V/380V |
|
Power |
500w /1KW/2KW/3KW |
|
Tube Length Range |
290mm/425mm/525mm/720mm |
|
Tube Diameter |
25mm |
|
Wire length |
2.5M |
| power | voltage | length |
| 500w | 220v | 290mm |
| 1000w | 220v | 425mm |
| 2000w | 220v |
525mm |
| 3000w | 220v | 720mm |

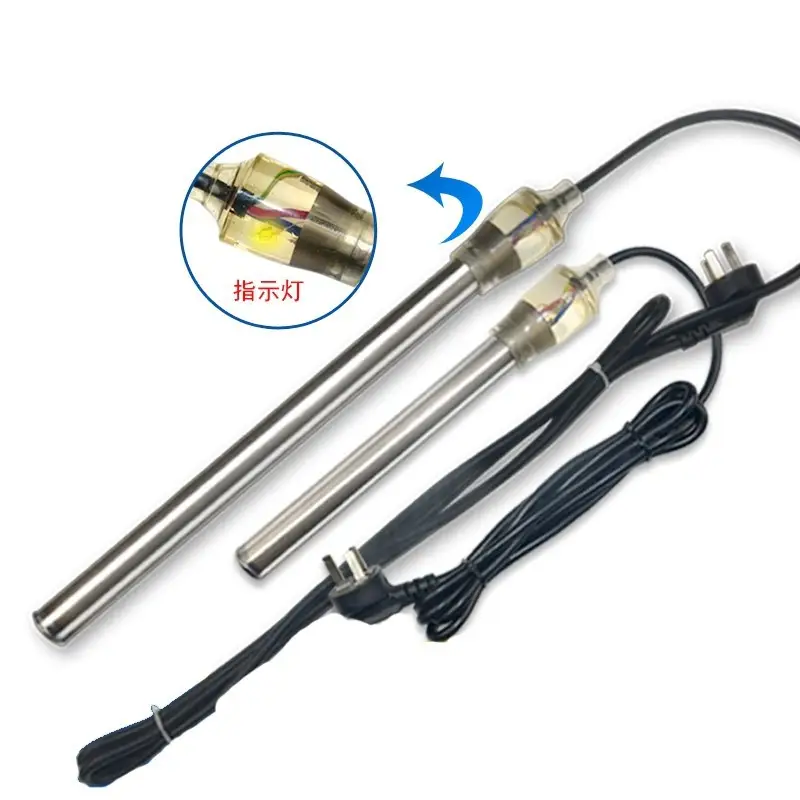

1. Enhanced safety with a heating indicator light and rapid heat concentration.
2. High-quality heating wire for rapid heat concentration. Utilizes high-quality heating wire with superior heat conductivity for more stable heating.
3. Pure titanium heating element with a fully sealed body. Resistant to acid and alkali corrosion, and heats up quickly.
4. Sturdy and durable three-prong plug. Robust structure prevents loosening and ensures a long service life.

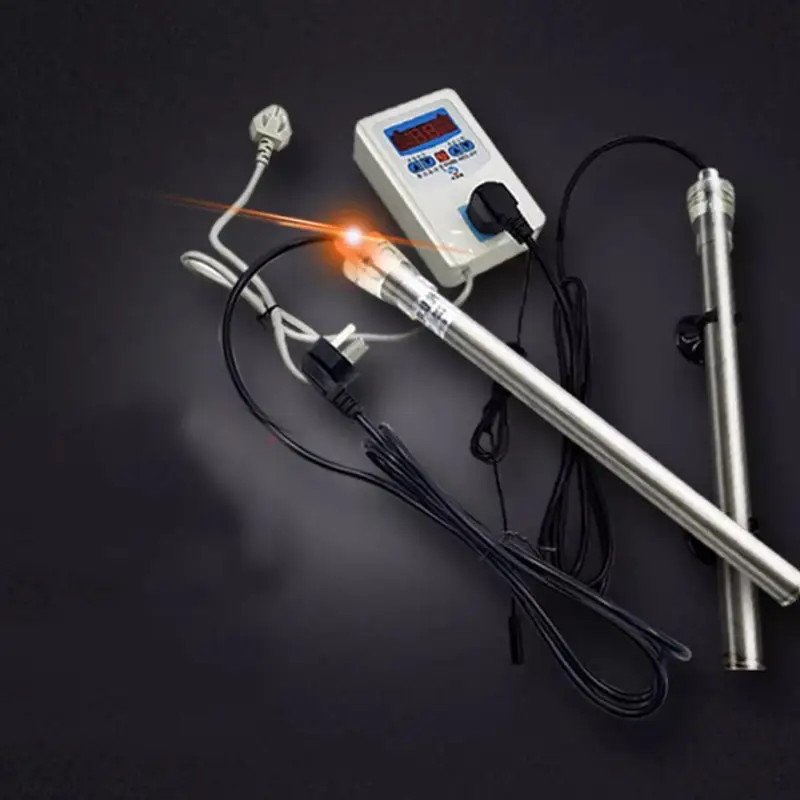

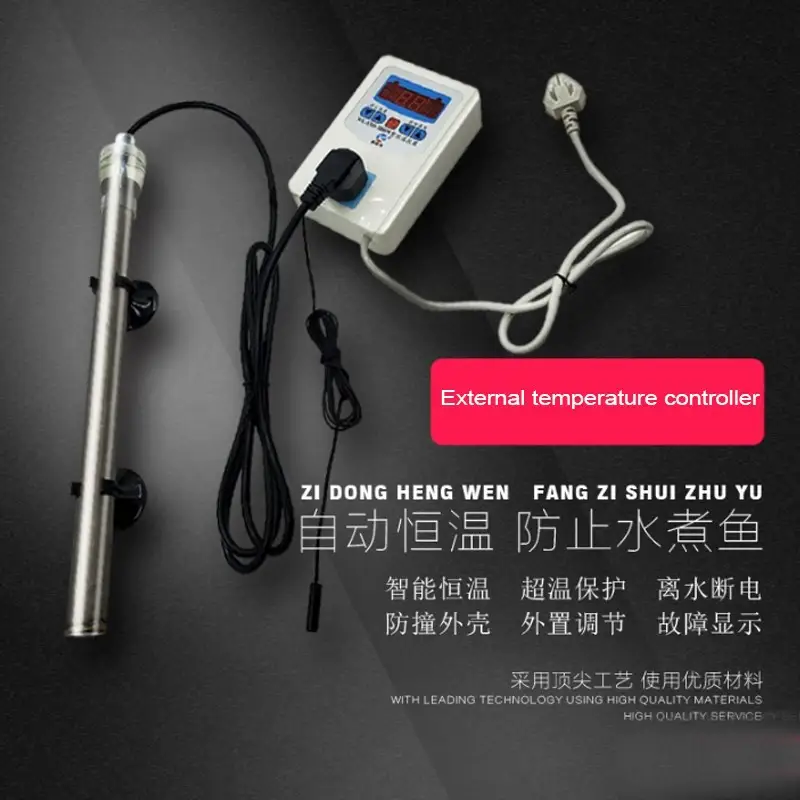

5. Intelligent constant temperature, overheat protection, power-off upon water removal, anti-collision casing, external adjustment, and fault display.
Company profile
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: fish tank heating rod with circulation, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, Straight Stainless Steel Finned Heater, Teflon Water Industrial Immersion Heater, Tubular Air Finned Heater Element, U Type Electric Air Fins Heater, Water Immersion Copper Tubular Heater, Water Immersion Heater Element
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
