PRODUCT ENGINEERING
Surface contact and flexible circuit layout
Thick Film Heating Ring: Define the heated outline, substrate material and mounting method. Continuous contact supports uniform heat transfer; air pockets, folds or partial bonding can produce local hot spots.
Keep the active circuit clear of fasteners and sharp bends. Confirm adhesive compatibility, lead strain relief and sensor location at the substrate rather than selecting power from pad area alone.
For Thick Film Heating Ring, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Thick Film Heating Ring lists Size: 85x55mm,75x55mm ,75x45mm; Power: 2080W; Voltage: 220v-230v; Material: stainless steel. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Thick Film Heating Ring, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration

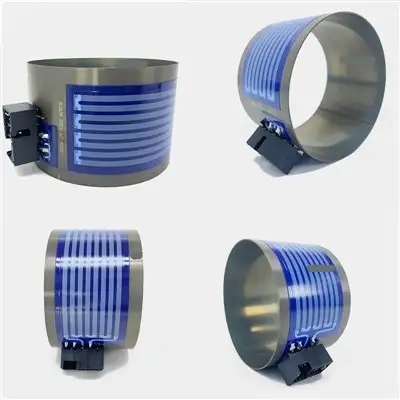

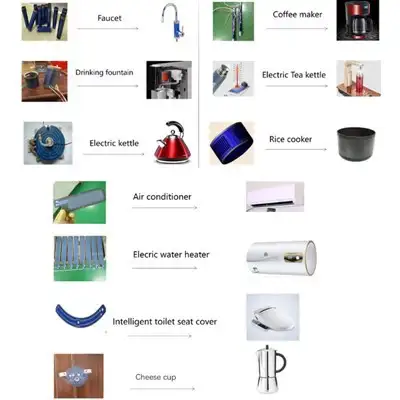

Surface warming and compact equipment assemblies. The final suitability of Thick Film Heating Ring depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Size | 85x55mm,75x55mm ,75x45mm |
|---|---|
| Power | 2080W |
| Voltage | 220v-230v |
| Material | stainless steel |
ARCHIVED PRODUCT INFORMATION
Description

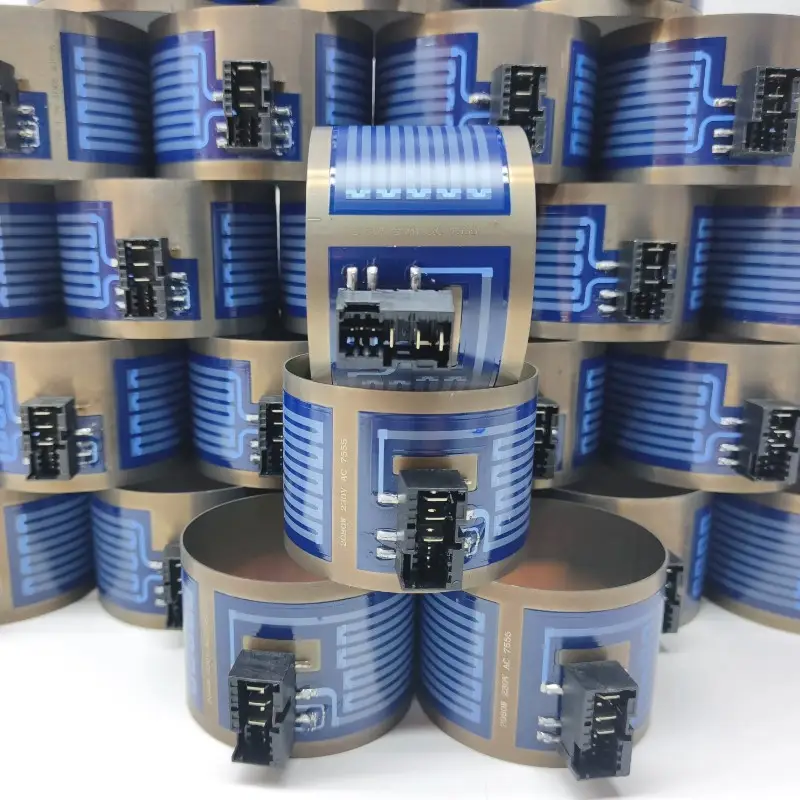

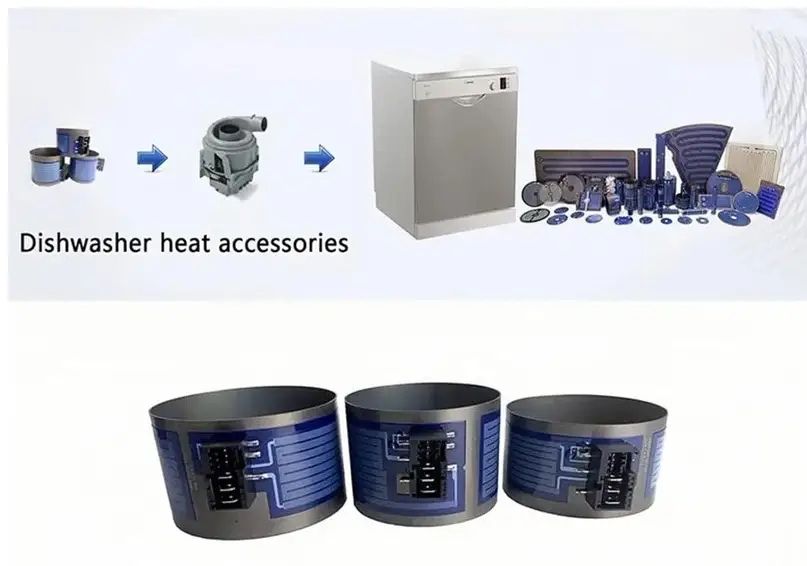

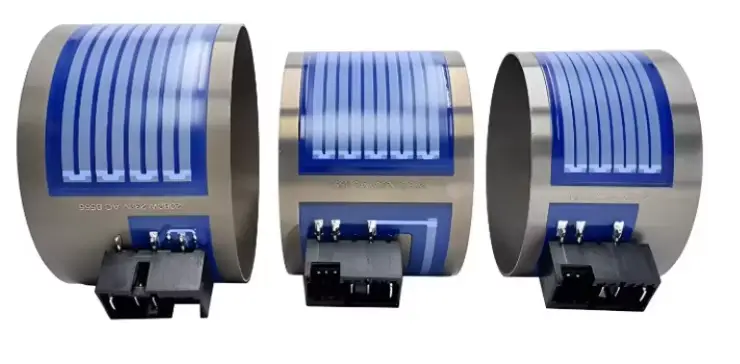

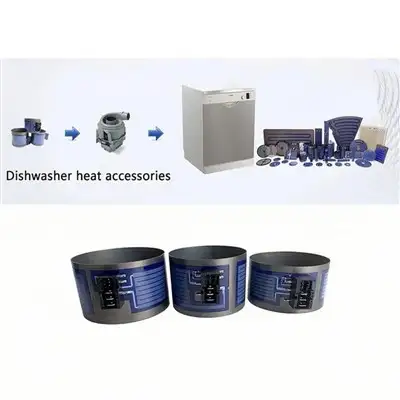

This is a thick film heating element specially designed for dishwasher circulation pumps, mainly compatible with household dishwashers of brands such as Siemens and Bosch. It is used to heat washing water to achieve high-temperature sterilization and efficient cleaning, and is also a core replacement part to solve heating faults such as E09 error code in dishwashers.
| Size | 85x55mm,75x55mm ,75x45mm |
| Power |
2080W |
| Voltage | 220v-230v |
| Material | stainless steel |
Key Features
High heating efficiency and fast response: Thermal efficiency exceeds 97%, with a temperature rise rate of 80–150°C per second, enabling instant on-demand heating without the need for preheating stored water.
Compact structure and high power density: Small in size, with a power density of 40–100 W/cm², ideal for integration into miniaturized equipment designs.
Safe and durable: Constructed with food-grade stainless steel substrates and multi-layer insulation technology, offering corrosion resistance, leak-proof performance, and a service life of over 6,000 hours.
Uniform heating: Surface-based heating eliminates common issues of traditional heating tubes such as limescale buildup and localized overheating, ensuring stable and consistent heat output.
Principle of Thick Film Heating Technology

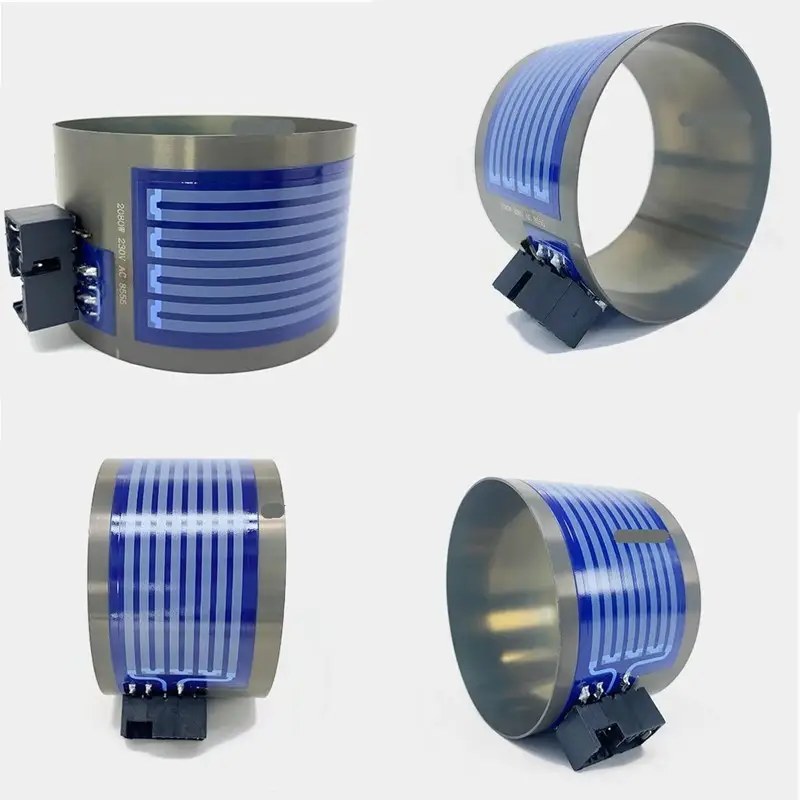

An integrated heating circuit is formed by printing an insulating layer, resistance paste, and protective layer on the surface of the stainless steel substrate and sintering at high temperature. When powered on, the resistance layer heats up rapidly, and directly conducts heat to the water flowing through the pump body through the stainless steel wall, realizing instant heating.
Technical Parameters
Rated Voltage: 230V AC
Rated Power: 2080W
Material: Food-grade stainless steel (such as SUS430) + thick film resistance circuit
Structure: Annular sleeve type, which can be directly sleeved on the pump body of the dishwasher circulation pump

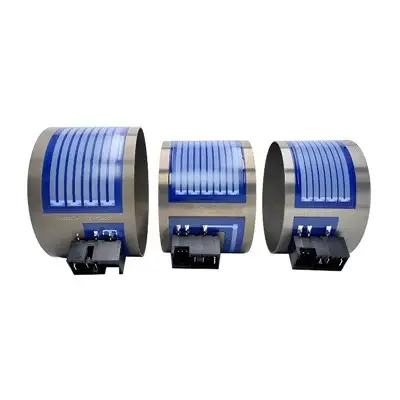

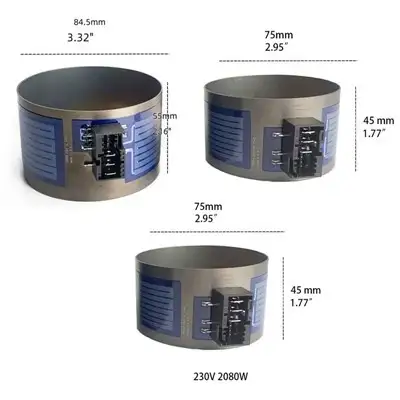

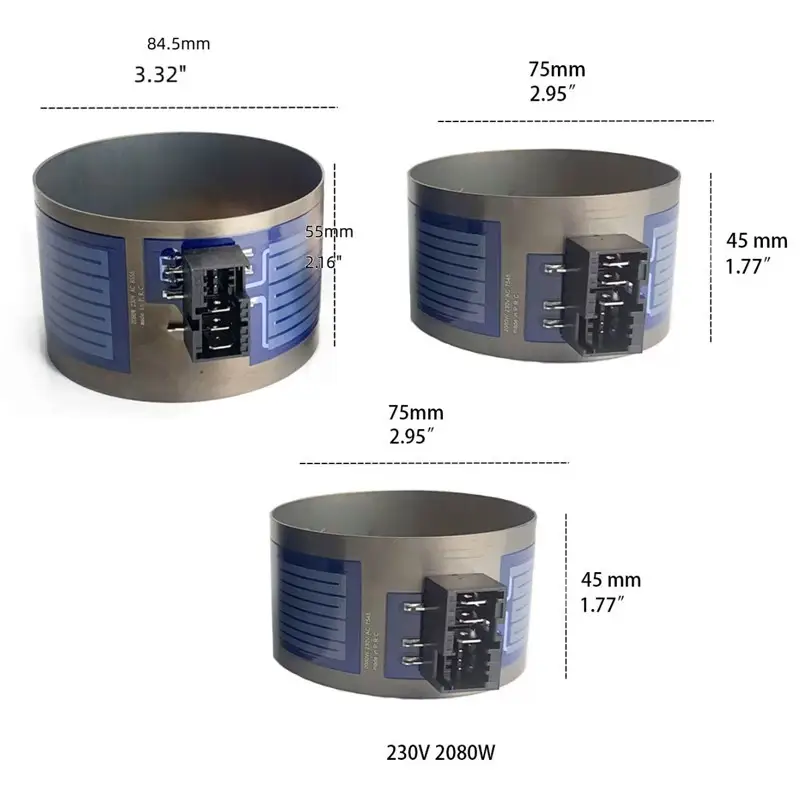

Common Specifications: Diameter 75/85mm, height 55mm, etc., customizable
Insulation Performance: Insulation resistance > 200MΩ, withstand voltage above 1500V
. Application Scenarios and Compatibility Instructions
Core Application: Heating system for built-in/tabletop household dishwasher circulation pumps, replacing original factory heating rings for maintenance replacement or complete machine matching
Compatible Brands: Mainstream dishwasher brands such as Siemens and Bosch, can match the size of circulation pumps of corresponding models
Fault Correlation: When the dishwasher displays E09 error code (abnormal heating), insufficient water temperature, or poor washing effect, it is mostly caused by damage to this heating ring, and the normal function can be restored after replacement.
