THIN, LIGHT & UNIFORM
Flexible Silicone Heating Pad Element
Flexible Silicone Heating Pad Element by LICHENGDA. Surface contact and flexible circuit layout, configuration details and made-to-drawing quotation for surface warming and compact equipment assemblies.
Product image gallery (6)
PRODUCT ENGINEERING
Surface contact and flexible circuit layout
Flexible Silicone Heating Pad Element: Define the heated outline, substrate material and mounting method. Continuous contact supports uniform heat transfer; air pockets, folds or partial bonding can produce local hot spots.
Keep the active circuit clear of fasteners and sharp bends. Confirm adhesive compatibility, lead strain relief and sensor location at the substrate rather than selecting power from pad area alone.
For Flexible Silicone Heating Pad Element, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Flexible Silicone Heating Pad Element lists Power density: 0.10~1.50w/cm²; External insulation material: Silicone glass fiber; Voltage: 3.7-660V. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Flexible Silicone Heating Pad Element, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.

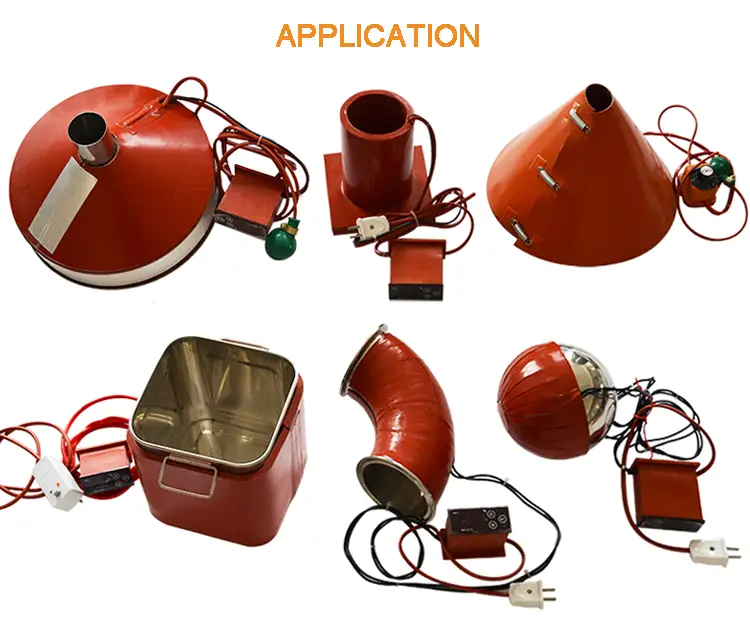

Application and reference configuration
Surface warming and compact equipment assemblies. The final suitability of Flexible Silicone Heating Pad Element depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Temperature range | -40.00~180.00°C |
|---|---|
| Electric resistance precision | ±10%( bigger value selected) |
| Power density | 0.10~1.50w/cm² |
| Mechanical pressure | 100.00kg/cm² |
| Minimum bending radius | 3.20mm |
| External insulation material | Silicone glass fiber |
| Internal heating element | Ni-Cr alloy |

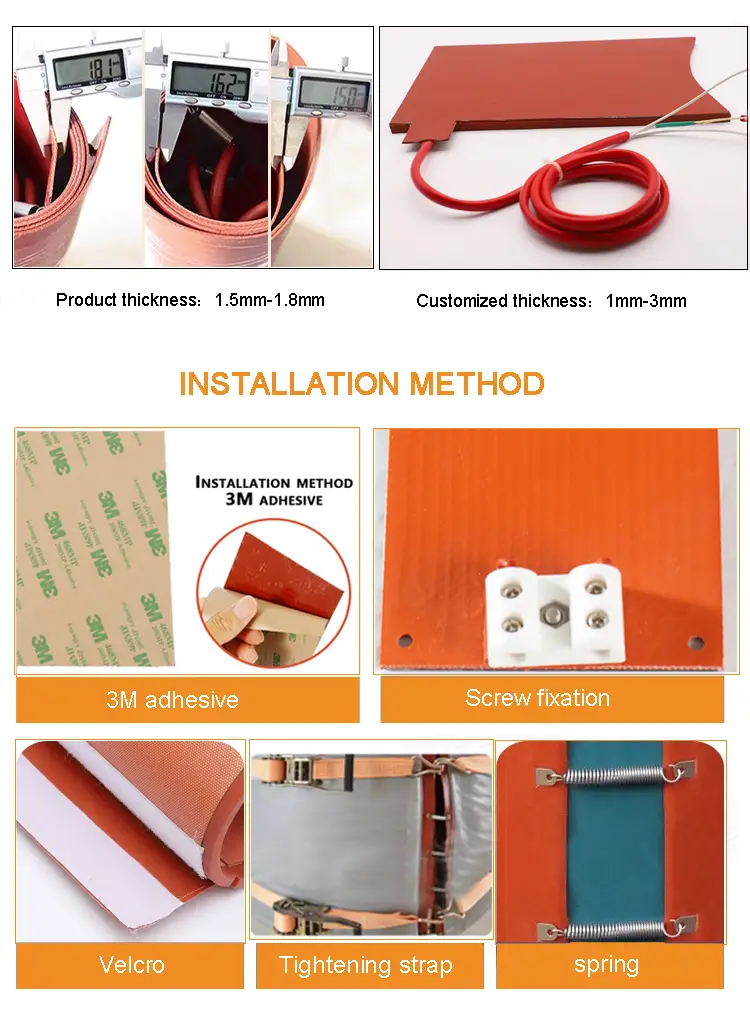

| Thickness | 1.5mm-3mm |
| Voltage | 3.7-660V |
ARCHIVED PRODUCT INFORMATION
Description

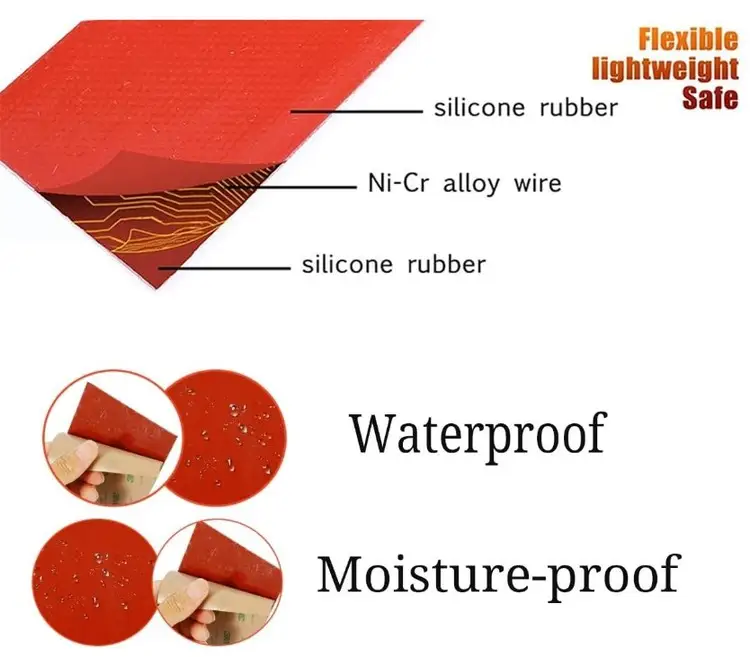

silicone heater is a flexible heating element made of a silicone rubber material that is designed to provide uniform and efficient heat transfer in a wide range of applications. The heating element consists of a resistance wire, such as nickel-chromium or copper-nickel, that is embedded in a silicone rubber substrate, which is then bonded to a thin layer of fiberglass or other insulating material.
| Temperature range | -40.00~180.00°C |
| Electric resistance precision | ±10%( bigger value selected) |
| Power density | 0.10~1.50w/cm² |
| Mechanical pressure | 100.00kg/cm² |
| Minimum bending radius | 3.20mm |
| External insulation material | Silicone glass fiber |
| Internal heating element | Ni-Cr alloy |
| Thickness | 1.5mm-3mm |
| Voltage | 3.7-660V |

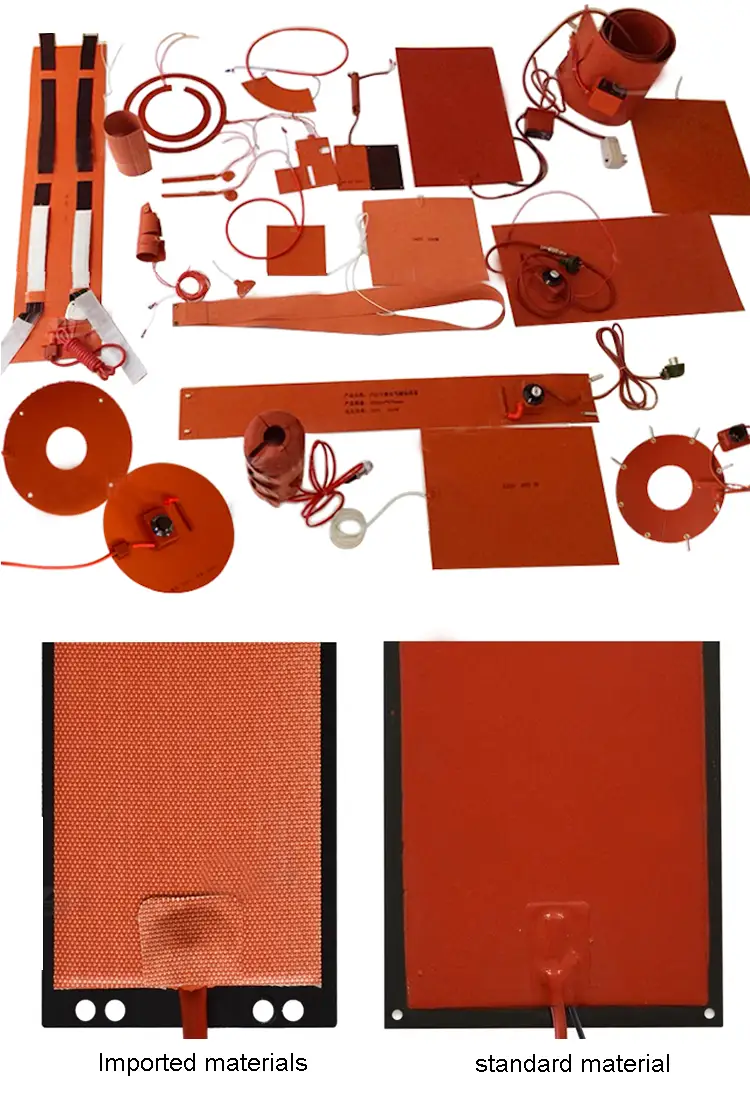

Imported silicone heating temperature of 200 ℃, more durable, and longer service life;
Domestic silicone heating temperature of 180 ℃, economical and cost-effective;
Product Advantage
1. The shape can be customized
2. Heating in the air, the highest temperature is 180℃

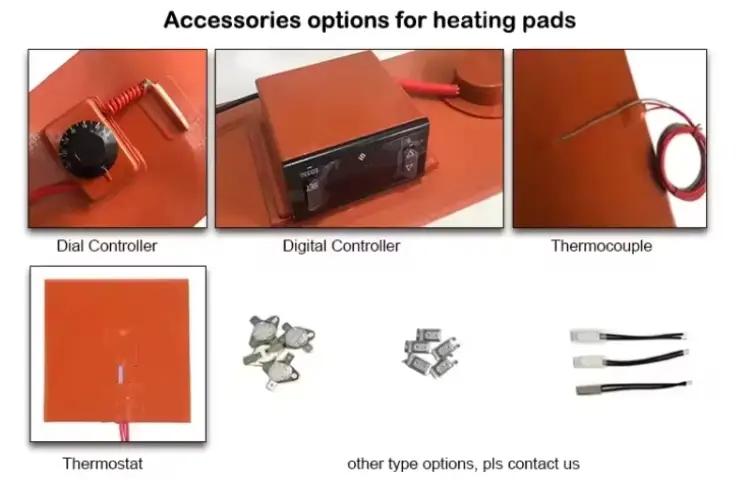

3. USB interface, 3.7V battery, thermocouple wire and thermistor can be added
(PT100 NTC 10K 100K 3950%)
The shape can be customized arbitrarily, and insulation layer,USB interface, 3.7V battery,
thermocouple wire and thermistor can be added (PT100 NTC 10K 100K 3950%)
Specifications:
1. Length: 15-10000mm, width: 15-1200mm; Lead length: default 1000mm or custom

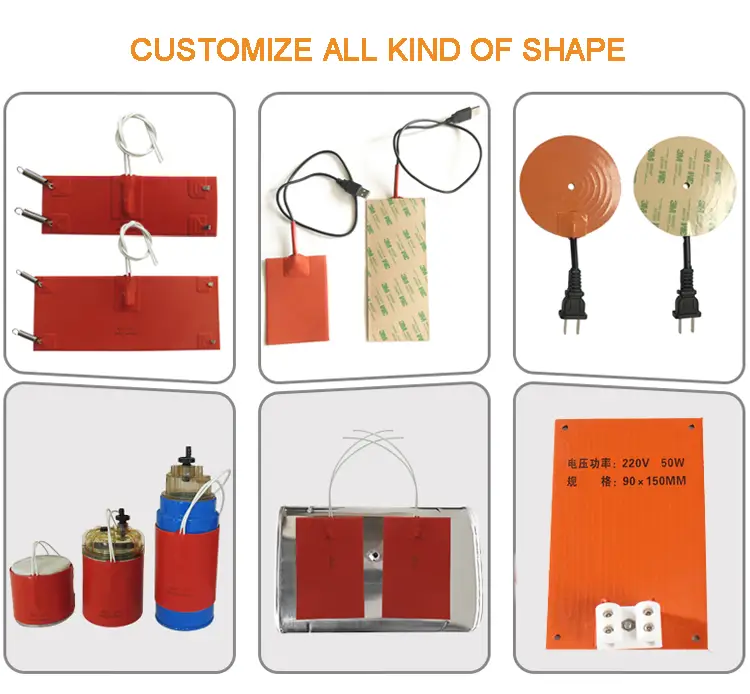

2. Circular, irregular, and special shapes can be customized.

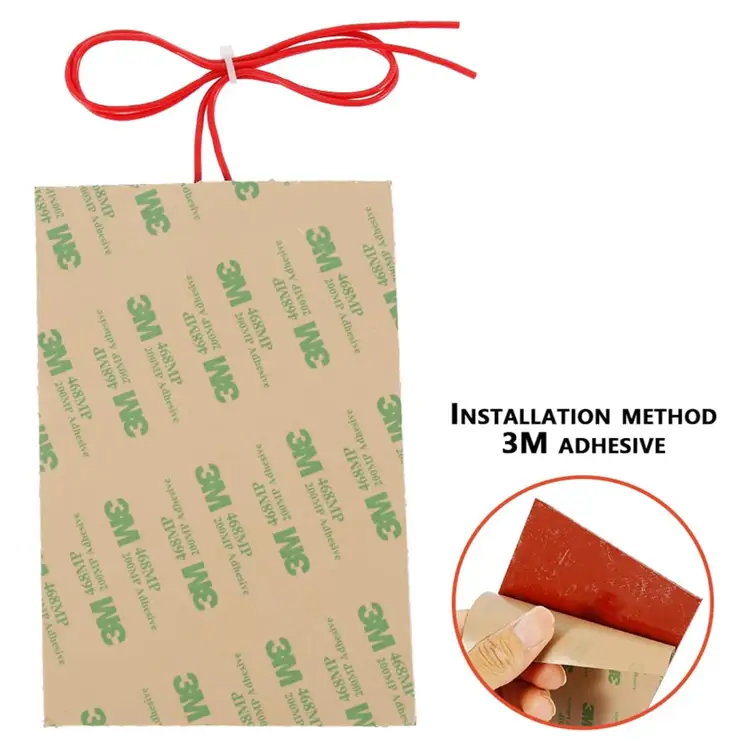

3. The default does not include 3M adhesive backing
4. Voltage: 5V/12V/24V/36V/48V/110V/220V/380V, etc., can be customized.
5. Power: 0.01-2W/cm can be customized, conventional 0.4W/cm,this power density temperature
can reach around 50 ℃, with low temperature for low power and high temperature for high power

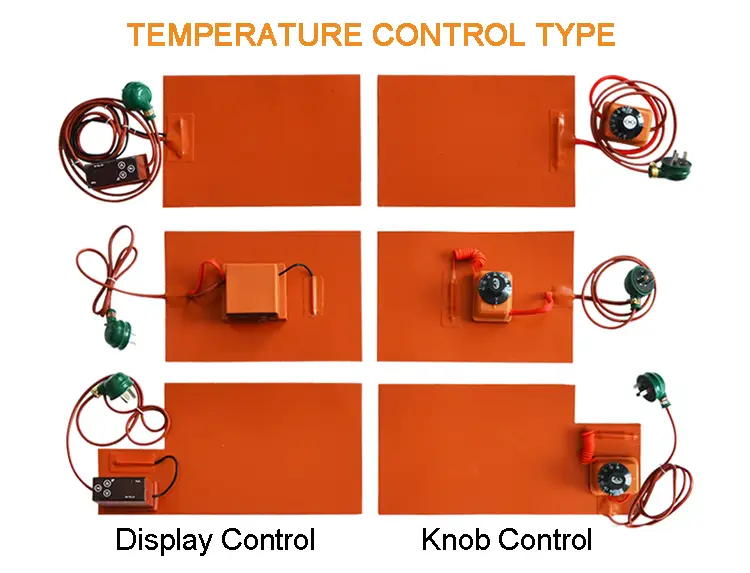

Digital temperature control: Temperature control range -45 ℃~220 ℃. It can maintain a constant
temperature or a temperature range, and the temperature can be adjusted
Knob temperature control: commonly used temperature ranges are 0-40 ° C, 0-60 ° C,
0-120 ° C, 30-110 ° C, 30-150 ° C, 50-200 ° C etc. Temperature adjustment can be installed at
any position on the heating plate, with average temperature control accuracy, suitable for
insulation and antifreeze industries that do not require high temperature control accuracy.
Constant temperature control: also known as temperature switch/overheat protector. Generally,
there is a temperature range of 5 ℃, with commonly used temperatures including 5 ℃, 10 ℃, 20 ℃,
30 ℃, 40 ℃, 45 ℃, 50 ℃... 180 ℃, etc. The temperature can be adjusted but not adjustable. It can
be installed at any position on the heating plate and cannot be externally connected. The
temperature control accuracy is average, suitable for insulation and antifreeze industries that do not
require high temperature control accuracy.
Company profile
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: flexible silicone heating pad element, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, heating element silicone heater pad, 200 liter electric drum heater, 200l silicone drum heater flexible, 12v Silicone Rubber Flexible Heating Element, Flexible Silicone Rubber Heater, 12v flexible pi kapton foil heater
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
