THIN, LIGHT & UNIFORM
Defrost Heat Cable
Defrost Heat Cable by LICHENGDA. Surface contact and flexible circuit layout, configuration details and made-to-drawing quotation for surface warming and compact equipment assemblies.
Product image gallery (7)
PRODUCT ENGINEERING
Surface contact and flexible circuit layout
Defrost Heat Cable: Define the heated outline, substrate material and mounting method. Continuous contact supports uniform heat transfer; air pockets, folds or partial bonding can produce local hot spots.
Keep the active circuit clear of fasteners and sharp bends. Confirm adhesive compatibility, lead strain relief and sensor location at the substrate rather than selecting power from pad area alone.
For Defrost Heat Cable, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
For Defrost Heat Cable, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Surface warming and compact equipment assemblies. The final suitability of Defrost Heat Cable depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Voltage / Wattage | Confirmed for the application |
|---|---|
| Shape / Dimensions | Made to drawing |
| Material / Sensor | Selected for operating conditions |
ARCHIVED PRODUCT INFORMATION
Description

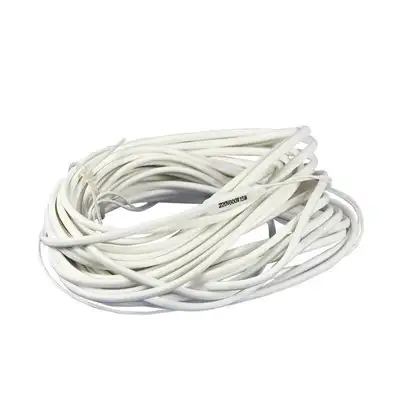

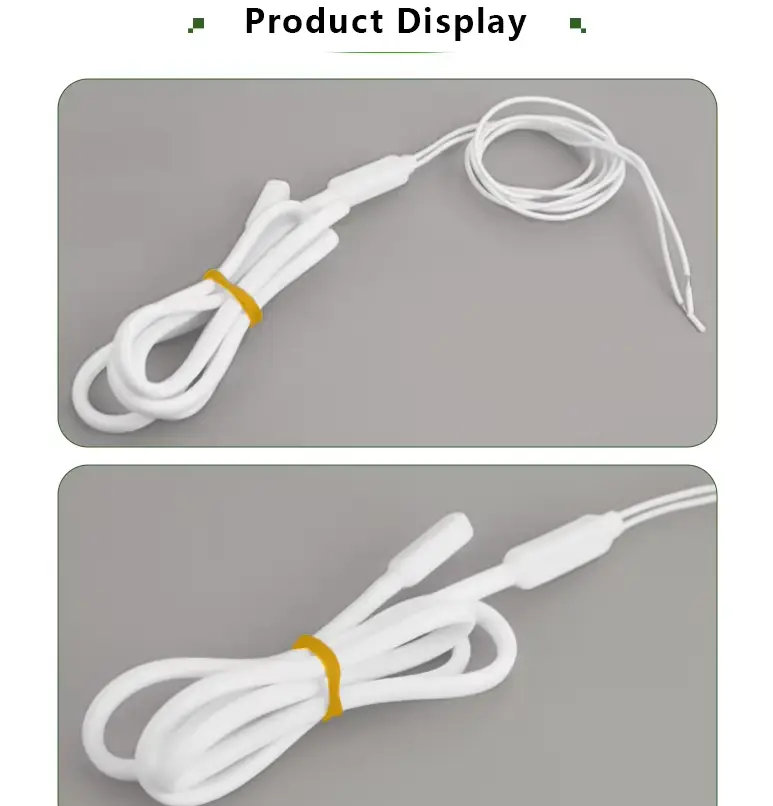

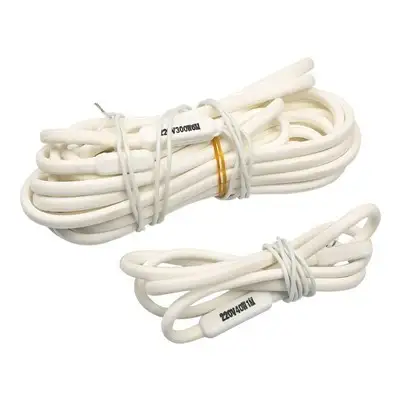

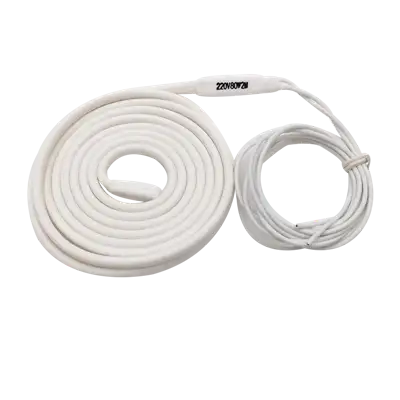

Silicone Rubber Heating Cable (Freezer Defrost & Pipe Anti-freeze Heating Tape)These are two models of silicone rubber heating cables (also known as freezer defrost heating wires, pipe anti-freeze heating tapes), which are core electric heating elements for anti-freeze, defrost and heat tracing in industrial and civil scenarios.

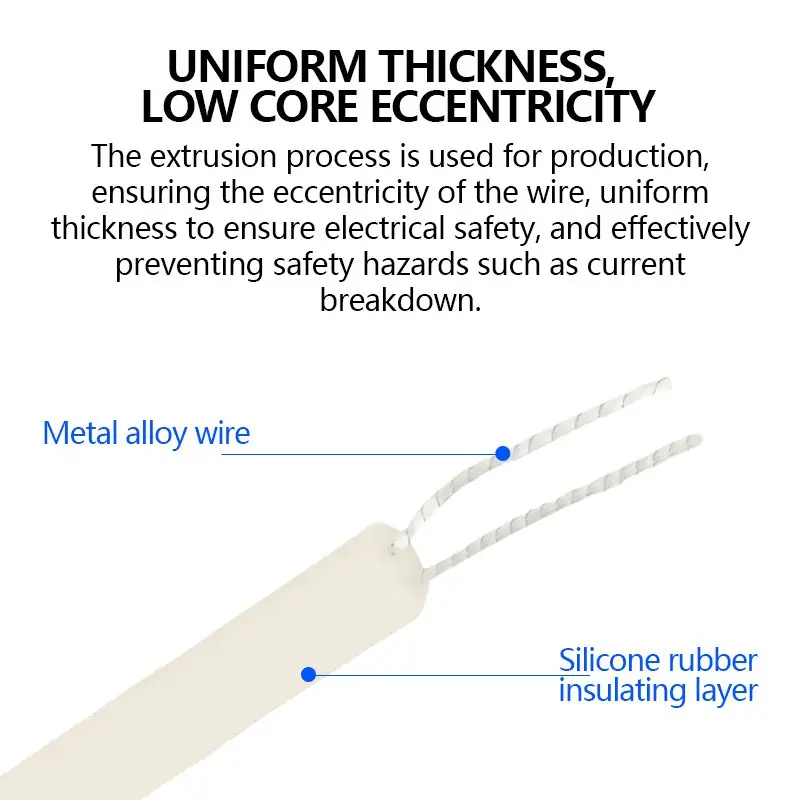

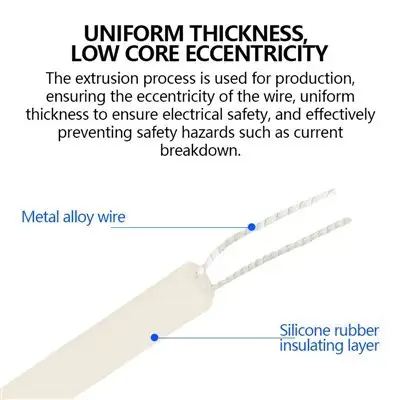

| Heating body | Nichrome/Copper-nickel wire | Length/m | 30W/m | 40W/m | 50W/m | ||
| Tail section of heating body | Silicone body sealed tail section | 1 | 30W | 40W | 50W | ||
| High surface temp resistance | 200℃ | 1.3 | 39W | 52W | 65W | ||
| Low surface temp resistance | -60℃ | 1.5 | 45W | 60W | 75W | ||

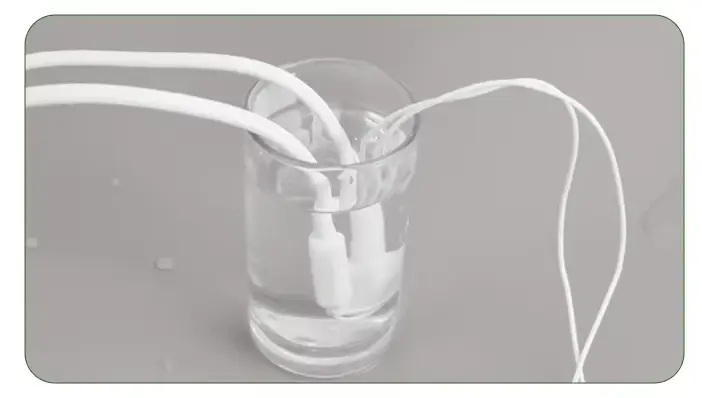

| Water immersion pressure resistance | AC2500V | 2.0 | 60W | 80W | 100W | ||
| Voltage | 220-230V | Size | 7x5mm | 3.0 | 90W | 120W | 150W |
| Power | ±5% | Output power | 30-50W/m | 4.0 | 120W | 160W | 200W |
| Body length | ±5mm | Insulation resistance | ≥200MΩ | 5.0 | 150W | 200W | 250W |
| Tolerance | ±10% | Leakage current | ≤0.2MA | 6.0 | 180W | 240W | 300W |
Core Advantages & Selling Points

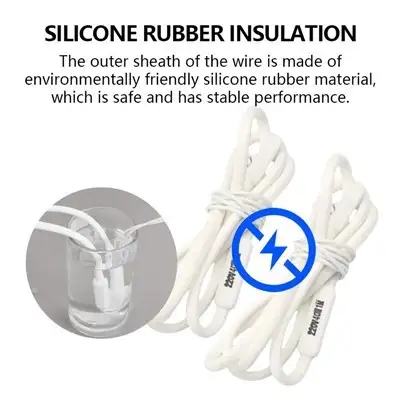

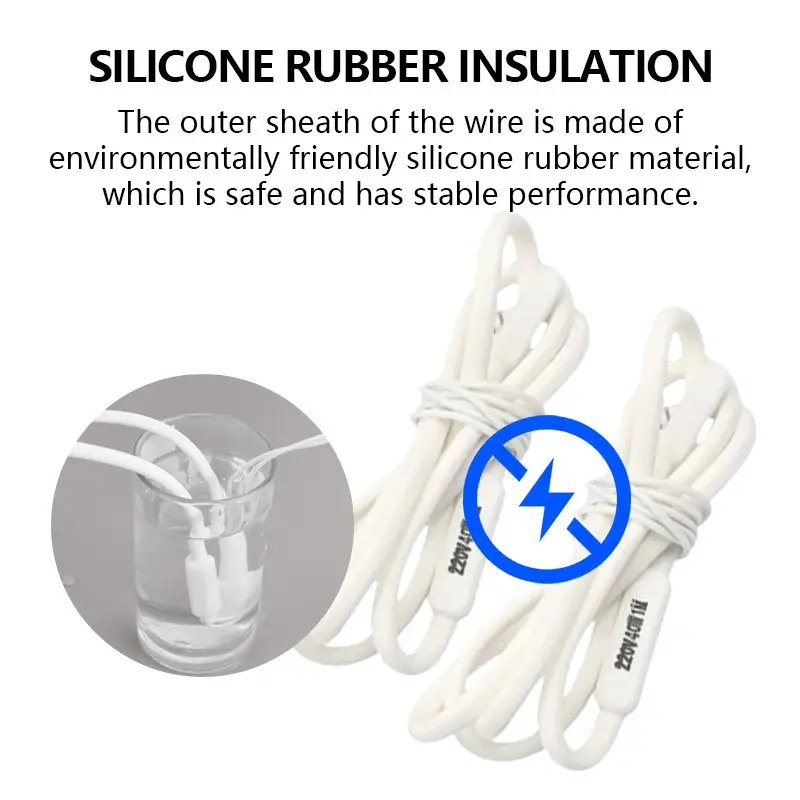

✅ Waterproof & Corrosion-resistant: The silicone rubber sheath has excellent waterproof, moisture-proof, acid and alkali corrosion resistance, suitable for long-term use in humid and low-temperature environments

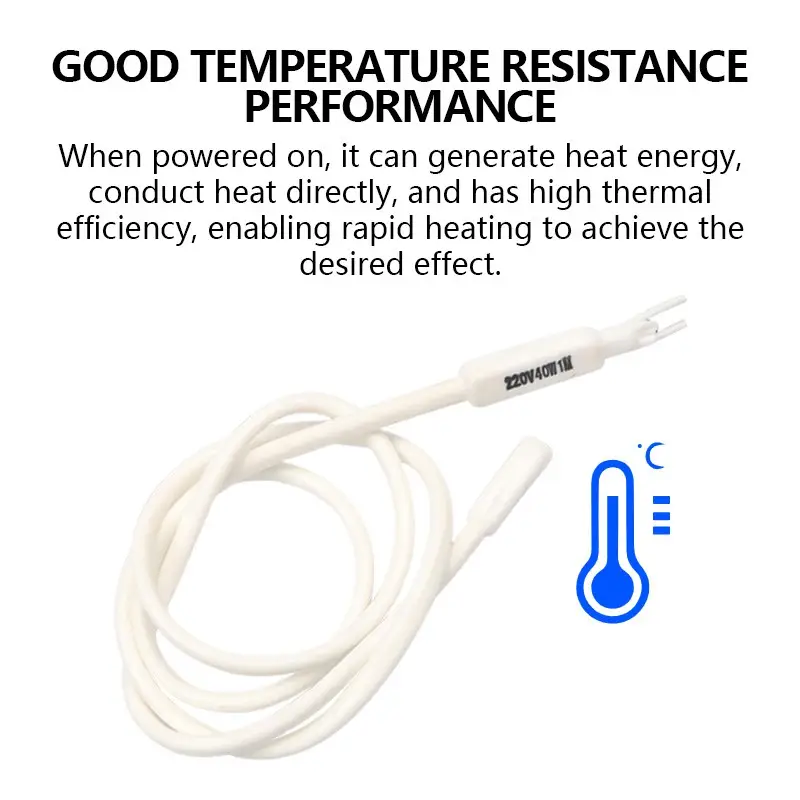

✅ Wide Temperature Adaptability: The temperature resistance range is usually -60℃ ~ +200℃, suitable for extreme low-temperature scenarios such as cold storage and outdoor pipelines

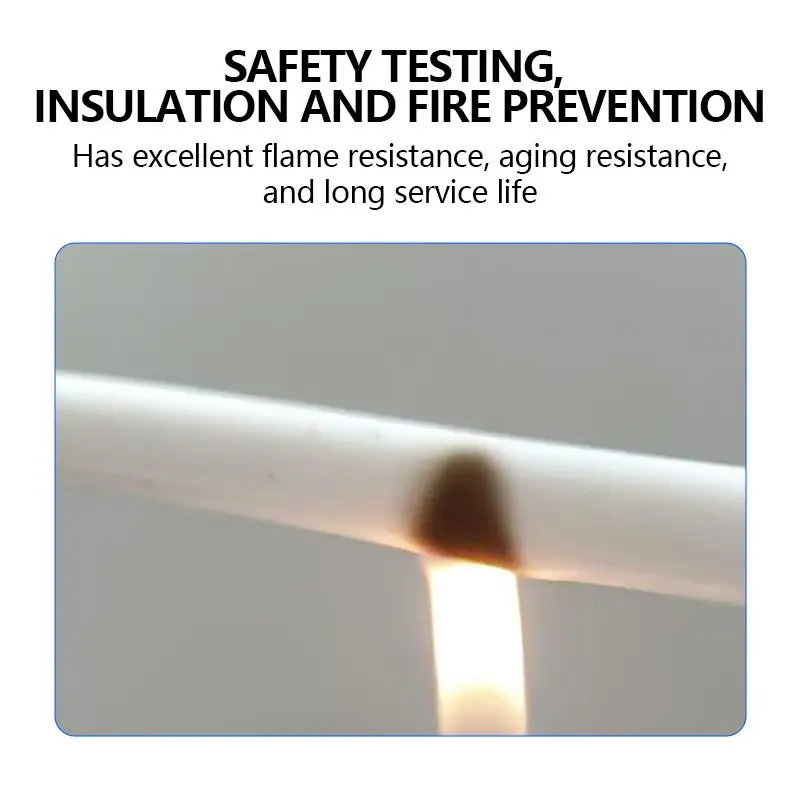

✅ Insulation Safety: Excellent insulation performance of silicone rubber, high insulation strength, safe and reliable use
✅ Flexible & Easy Installation: The flexible cable can be bent and wound freely, suitable for complex installation scenarios such as pipes and drain pipes
✅ Customizable Specifications: Support customization of length and power to meet heat tracing requirements of different scenarios
Typical Application Scenarios
Refrigeration Industry: Defrosting drain pipes of cold storage, freezers and refrigerators to prevent ice blockage at the drain outlet
Pipe Anti-freeze: Winter anti-freeze heat tracing for outdoor water pipes, water supply and drainage pipes, solar water heater pipes
Industrial Heat Tracing: Insulation heat tracing for chemical pipes and valves to prevent medium crystallization and solidification
Other Scenarios: Local heating for breeding sheds and greenhouses, equipment defrosting, anti-condensation, etc.
Selection & Usage Notes
Power Matching: Select the heating cable with corresponding power according to the heat tracing length, ambient temperature and insulation conditions to avoid overload
Installation Specification: Do not knot or excessively bend the heating cable to avoid uneven heating and burning; it must be used with a temperature controller to prevent overheating
Safety Requirements: Must be used with grounding, the connection end shall be insulated and waterproofed, and it is strictly prohibited to use in flammable and explosive environments
Material Selection: Food-grade silicone rubber can be selected for food-grade scenarios to meet hygiene requirements
Core Advantages & Selling Points
Waterproof & Corrosion-resistant: The silicone rubber sheath has excellent waterproof, moisture-proof, acid and alkali corrosion resistance, suitable for long-term use in humid and low-temperature environments
Wide Temperature Adaptability: The temperature resistance range is usually -60℃ ~ +200℃, suitable for extreme low-temperature scenarios such as cold storage and outdoor pipelines
Insulation Safety: Excellent insulation performance of silicone rubber, high insulation strength, safe and reliable use
Flexible & Easy Installation: The flexible cable can be bent and wound freely, suitable for complex installation scenarios such as pipes and drain pipes
Customizable Specifications: Support customization of length and power to meet heat tracing requirements of different scenarios
