Wood Pellet Ceramic Igniter For Pellet Grills
Wood Pellet Ceramic Igniter For Pellet Grills by LICHENGDA. Ignition fit and airflow, configuration details and made-to-drawing quotation for pellet stoves and controlled ignition assemblies.
Product image gallery (6)
PRODUCT ENGINEERING
Ignition fit and airflow
Wood Pellet Ceramic Igniter For Pellet Grills: Match diameter, inserted length, bracket and terminal style to the appliance drawing. Check that combustion air reaches the intended ignition zone and that the element can be removed for service.
Confirm supply voltage, ignition-cycle duration and the controller’s switching method. A stove brand in the catalog name indicates an application reference; verify the dimensions and electrical rating before fitting a replacement.
For Wood Pellet Ceramic Igniter For Pellet Grills, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
For Wood Pellet Ceramic Igniter For Pellet Grills, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Pellet stoves and controlled ignition assemblies. The final suitability of Wood Pellet Ceramic Igniter For Pellet Grills depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Electrical Rating | Confirmed for the application |
|---|---|
| Dimensions / Shape | Made to drawing |
| Materials / Termination | Selected for operating conditions |
ARCHIVED PRODUCT INFORMATION
Description

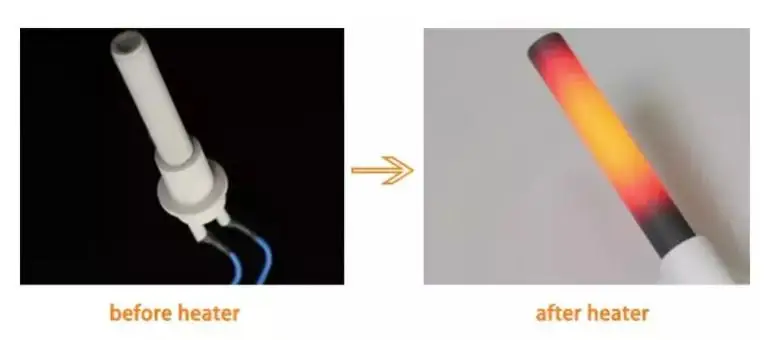

The item is used for wood pellet grill & fireplace igniter, with high tempereture, short heating time, long service life, low leakage current and other performance.
Specification | Dimension | Max. Dia. Flange | Max Temperature |
220V 300w | 11.5x 95mm | screw 20 mm | 1200 Deg.C |

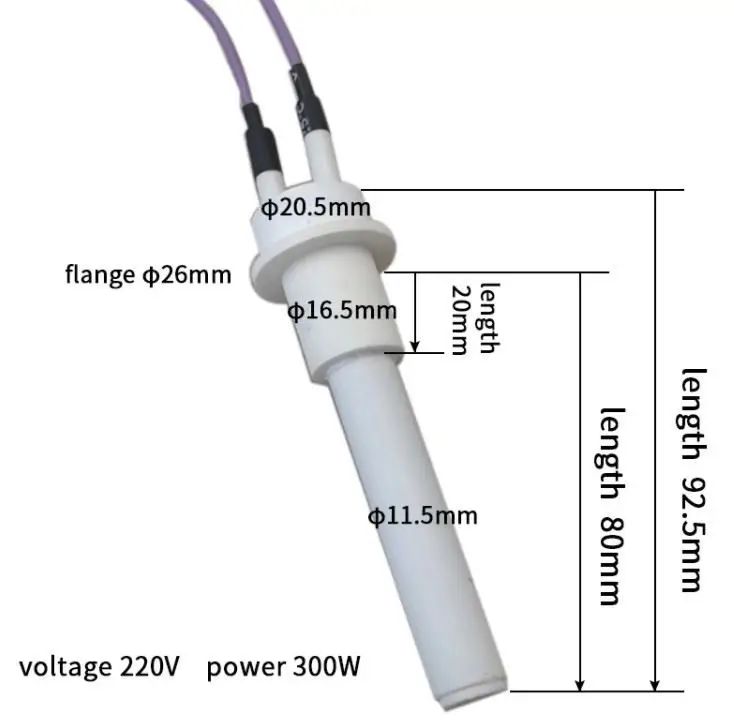

220V 300W | 11.5 x 92.5 mm | flange 26mm | 1200 Deg.C |

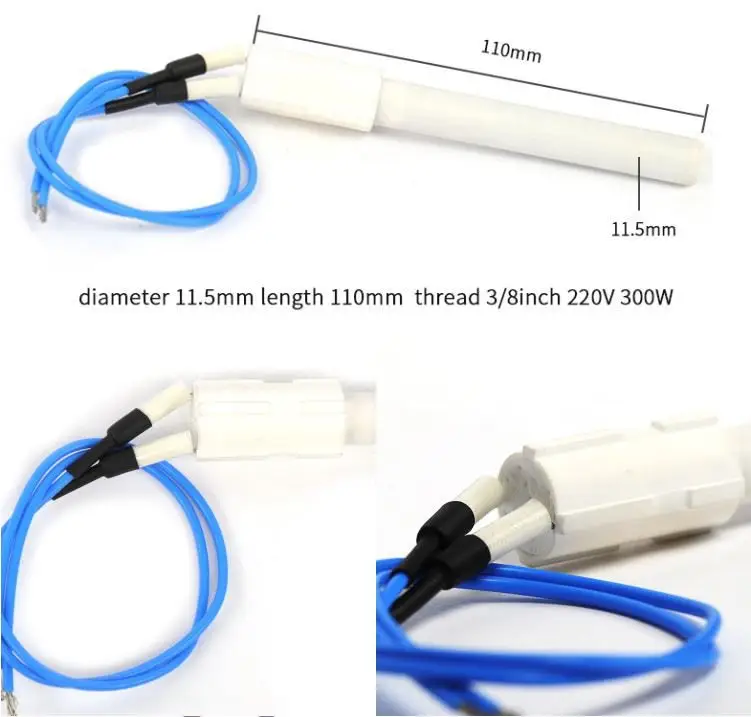

220V 300W | 11.5 x 110 mm | 3/8'' | 1200 Deg.C |
Product Parameters
1) Materials: 99% alumina, ceramic
2) Rated voltage: 110V, 220V, 380V, Power: 100 - 1,500W
3) Diameter: 6-30mm and up, Lenght of leading wire: 50~2000mm
4) Type k and J thermocouples can be attached.
Application
Pellet igniters are widely used in biomass burning system, esp. in pellet stoves and barbecue grills.It has a high efficiency (more than 90%) of ignition and very easy to install before operating.
•Wood pellet stove •Wood pellet boiler •Wood pellet burner
•Wood chips burner •Straw burner •Other biomass burner
Hot Tags: wood pellet ceramic igniter for pellet grills, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, igniter cartridge heater for pellet stove, Silicon Nitride Ceramic Ignition Rod, cartridge heater pellet stove, Cartridge Heater Wood Pellet Igniter, mini micro cartridge heater, Silicon Nitride Igniter Heater
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
