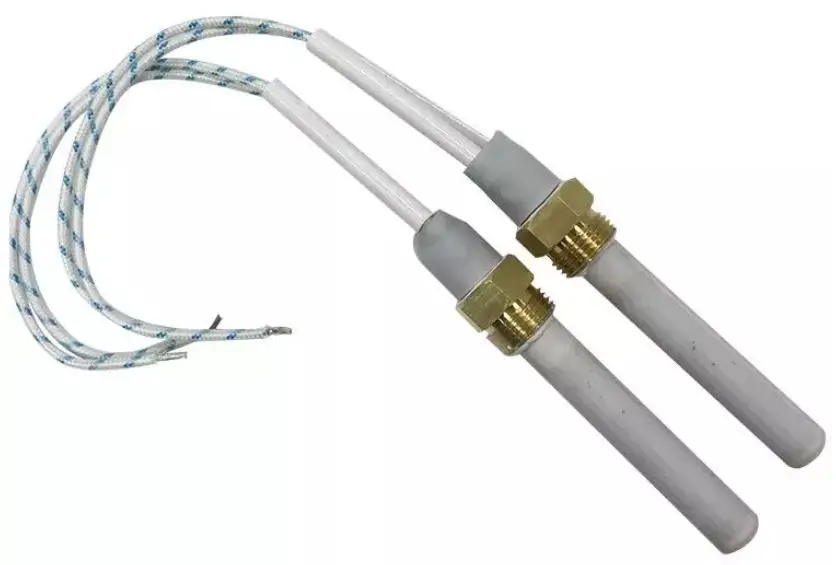

Wood Ceramic Pellet Stove Igniter

PRODUCT ENGINEERING

Ignition fit and airflow

Wood Ceramic Pellet Stove Igniter: Match diameter, inserted length, bracket and terminal style to the appliance drawing. Check that combustion air reaches the intended ignition zone and that the element can be removed for service.

Confirm supply voltage, ignition-cycle duration and the controller’s switching method. A stove brand in the catalog name indicates an application reference; verify the dimensions and electrical rating before fitting a replacement.

For Wood Ceramic Pellet Stove Igniter, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.

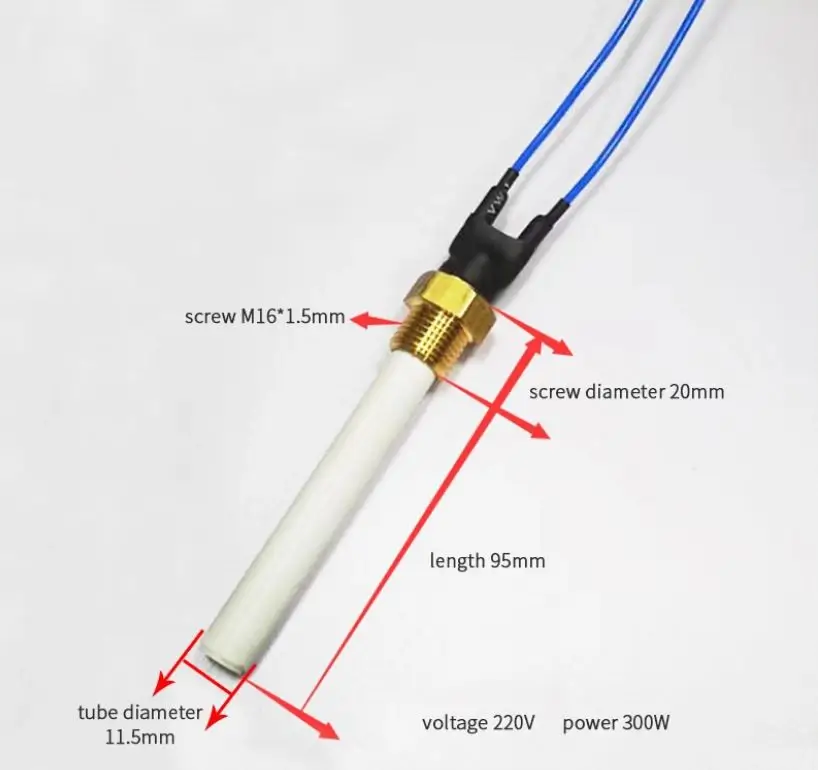

The archived configuration for Wood Ceramic Pellet Stove Igniter lists Shell Material: 310s,Inconel 800; Resistance Wire: Cr20Ni80(BGH); Diameter: 9.5; Length: 98mm. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.

For Wood Ceramic Pellet Stove Igniter, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.

Application and reference configuration

Pellet stoves and controlled ignition assemblies. The final suitability of Wood Ceramic Pellet Stove Igniter depends on the assembled equipment and agreed operating conditions.

Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
