DESIGNED FOR YOUR APPLICATION
Pellet Stove Igniter Cartridge Heater
Pellet Stove Igniter Cartridge Heater by LICHENGDA. Ignition fit and airflow, configuration details and made-to-drawing quotation for pellet stoves and controlled ignition assemblies.
Product image gallery (7)
PRODUCT ENGINEERING
Ignition fit and airflow
Pellet Stove Igniter Cartridge Heater: Match diameter, inserted length, bracket and terminal style to the appliance drawing. Check that combustion air reaches the intended ignition zone and that the element can be removed for service.
Confirm supply voltage, ignition-cycle duration and the controller’s switching method. A stove brand in the catalog name indicates an application reference; verify the dimensions and electrical rating before fitting a replacement.
For Pellet Stove Igniter Cartridge Heater, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Pellet Stove Igniter Cartridge Heater lists Shell Material: 310s,Inconel 800; Resistance Wire: Cr20Ni80(BGH); Diameter: 9.5; Length: 98mm. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Pellet Stove Igniter Cartridge Heater, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Pellet stoves and controlled ignition assemblies. The final suitability of Pellet Stove Igniter Cartridge Heater depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Shell Material | 310s,Inconel 800 |
|---|---|
| Resistance Wire | Cr20Ni80(BGH) |
| Magnesium oxide rod | MgO99%(Tateho) |
| Magnesium oxide powder | MgO99%(Tateho) |
| Diameter | 9.5 |
| Length | 98mm |
| Voltage | 120v |
| Power | 200w |
| Maximum temperature | 750Celsius degree |
ARCHIVED PRODUCT INFORMATION
Description
The item is used for wood pellet grill&fireplace igniter,with high tempereture,short heating time,long service life,low leakage current and other performance.
|
Shell Material |
310s,Inconel 800 |
|
Resistance Wire |
Cr20Ni80(BGH) |
|
Magnesium oxide rod |
MgO99%(Tateho) |
|
Magnesium oxide powder |
MgO99%(Tateho) |
|
Diameter |
9.5 |
|
Length |
98mm |
|
Voltage |
120v |
|
Power |
200w |
|
Maximum temperature |
750Celsius degree |

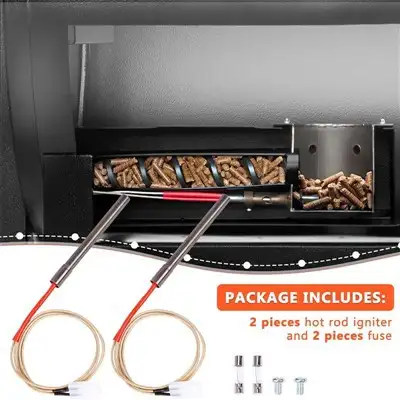

PRODUCT FEATURES: To avoid pellet grill hot rod stopping working after a few BBQ sessions, only 1/8 to 1/4 inch 120V 200W ignitor rod should be showing in the firepot, Replacement Part Models: 70112, PG24-21
COMPATIBALE WITH: The grilling igniter for Pit Boss pellet grill models - 340, 440, Classic, Austin XL, Sportsman 1100, Pro Series II 1150PS2 etc. Work with Camp Chef models. Details refer to the second picture. NOTE: Not Fit for Pit Boss LOCKHART Model
EASY TO INSTALL AND DURABLE: The replacement igniter parts was a direct install. Made of durable materials and perfect fit. This hot rod kits can keep the fire going when you are on a BBQ with your friends or family, important replacement accessories
PRODUCT FEATURES: To avoid pellet grill hot rod stopping working after a few BBQ sessions, only 1/8 to 1/4 inch 120V 200W ignitor rod should be showing in the firepot, Replacement Part Models: 70112, PG24-21
COMPATIBALE WITH: The grilling igniter for Pit Boss pellet grill models - 340, 440, Classic, Austin XL, Sportsman 1100, Pro Series II 1150PS2 etc. Work with Camp Chef models. Details refer to the second picture. NOTE: Not Fit for Pit Boss LOCKHART Model
EASY TO INSTALL AND DURABLE: The replacement igniter parts was a direct install. Made of durable materials and perfect fit. This hot rod kits can keep the fire going when you are on a BBQ with your friends or family, important replacement accessories
Features
1.Fast heating and long service life
2.Power and voltage can be customized according to requirements.
3.Used in hot forming machinery,meachanical equipment,etc.
4.According to different use requirements,choose the grade of heating wire,magnesium rod and pipe.
Company profile
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: pellet stove igniter cartridge heater, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, 220v cartridge heater for pellet stove, 220v electric cartridge heater pellet, Cartridge Heater Wood Pellet Igniter, Ceramic Igniter For Pellet Stove, Pellet Ceramic Igniter For Stove, Pellet Igniter
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
