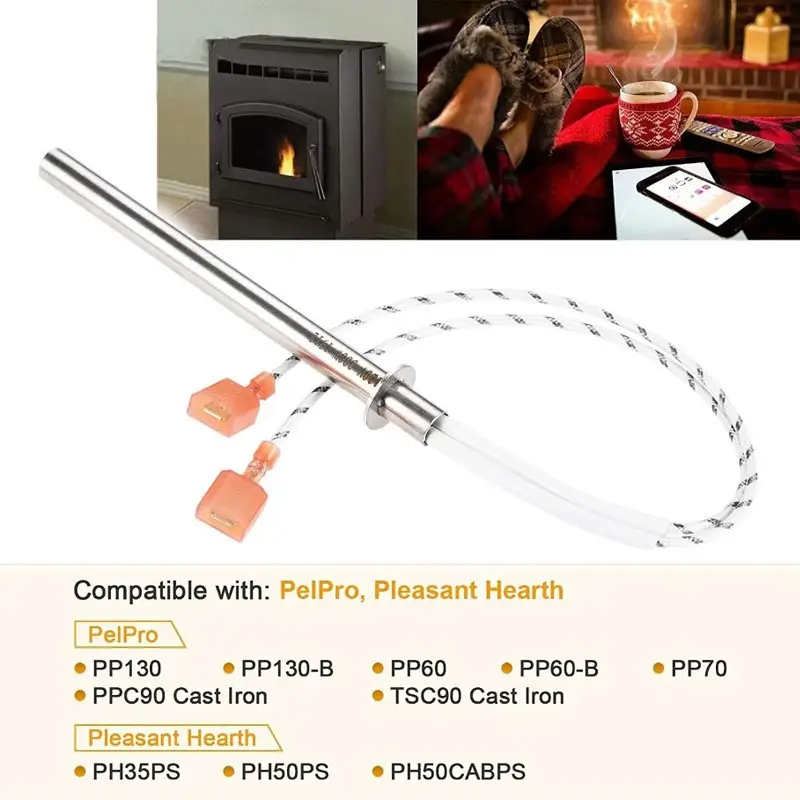

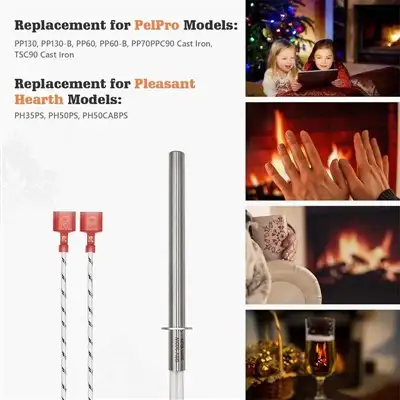

Pellet Igniter for Pleasant Hearth PelPro
Pellet Igniter for Pleasant Hearth PelPro by LICHENGDA. Ignition fit and airflow, configuration details and made-to-drawing quotation for pellet stoves and controlled ignition assemblies.
Product image gallery (7)
PRODUCT ENGINEERING
Ignition fit and airflow
Pellet Igniter for Pleasant Hearth PelPro: Match diameter, inserted length, bracket and terminal style to the appliance drawing. Check that combustion air reaches the intended ignition zone and that the element can be removed for service.
Confirm supply voltage, ignition-cycle duration and the controller’s switching method. A stove brand in the catalog name indicates an application reference; verify the dimensions and electrical rating before fitting a replacement.
For Pellet Igniter for Pleasant Hearth PelPro, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Pellet Igniter for Pleasant Hearth PelPro lists Resistance heating wire: NiCr 80/20 wire; Size: 3/8"*4.9" 120V 300W or customized; Length tolerance: ±1 mm; Diameter tolerance: -0.02mm. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Pellet Igniter for Pleasant Hearth PelPro, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Pellet stoves and controlled ignition assemblies. The final suitability of Pellet Igniter for Pleasant Hearth PelPro depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Resistance heating wire | NiCr 80/20 wire |
|---|---|

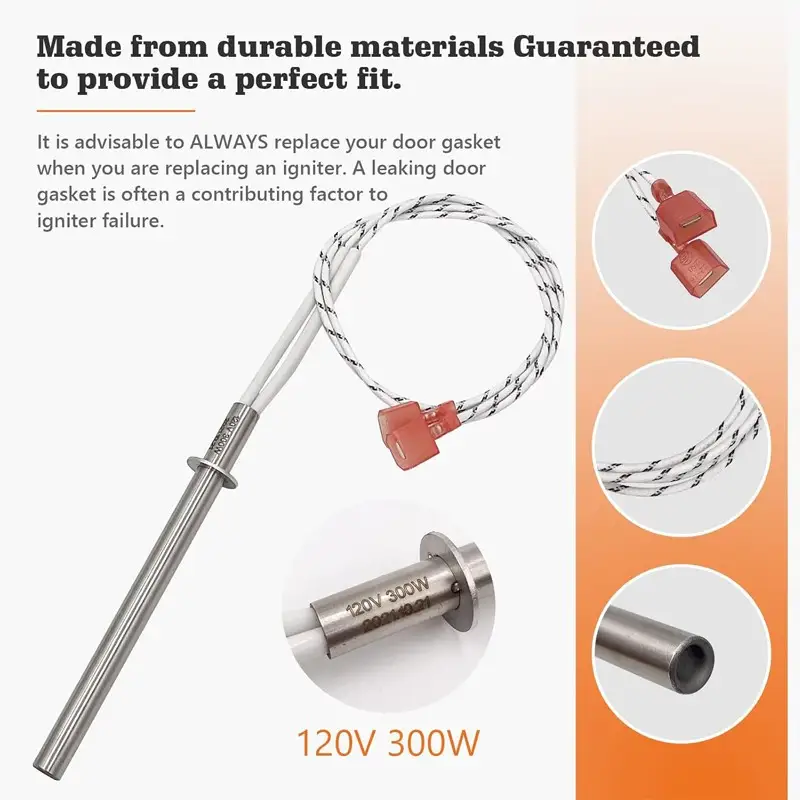

| Size | 3/8"*4.9" 120V 300W or customized |
| Resistance tolerance | +10%, -5% |
| Length tolerance | ±1 mm |
| Diameter tolerance | -0.02mm |
| Standard Cold Zone | 5-10mm |
| Insulation resistance (cold) | ≥ 500 MΩ |
| Maximum leakage current (cold) | ≤ 0.5 mA |
ARCHIVED PRODUCT INFORMATION
Description
| Resistance heating wire | NiCr 80/20 wire |
| Size |
3/8"*4.9" 120V 300W or customized |
| Resistance tolerance | +10%, -5% |
| Length tolerance | ±1 mm |
| Diameter tolerance | -0.02mm |
| Standard Cold Zone | 5-10mm |
| Insulation resistance (cold) | ≥ 500 MΩ |
| Maximum leakage current (cold) | ≤ 0.5 mA |
Specifications:

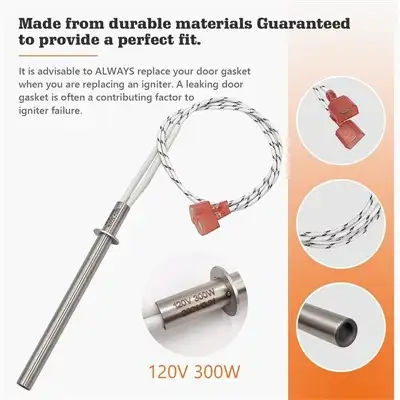

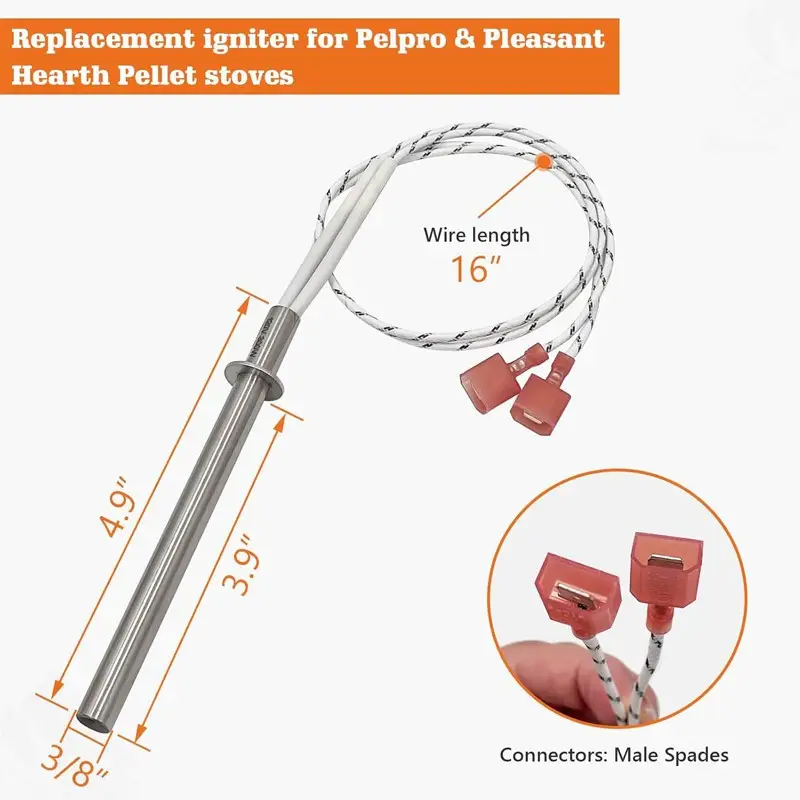

Watts: 300w ,Length: 4 .9″ Total
diameter: 3/8" diameter Anti-seize Threading
Connectors: Male Spades

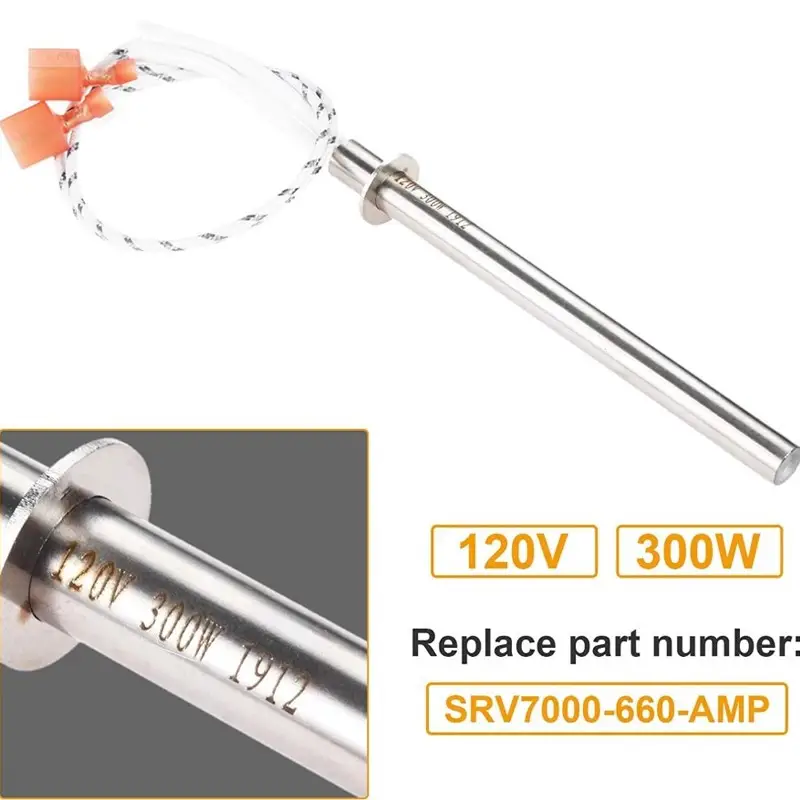

Replace part number: SRV7000-660-AMP

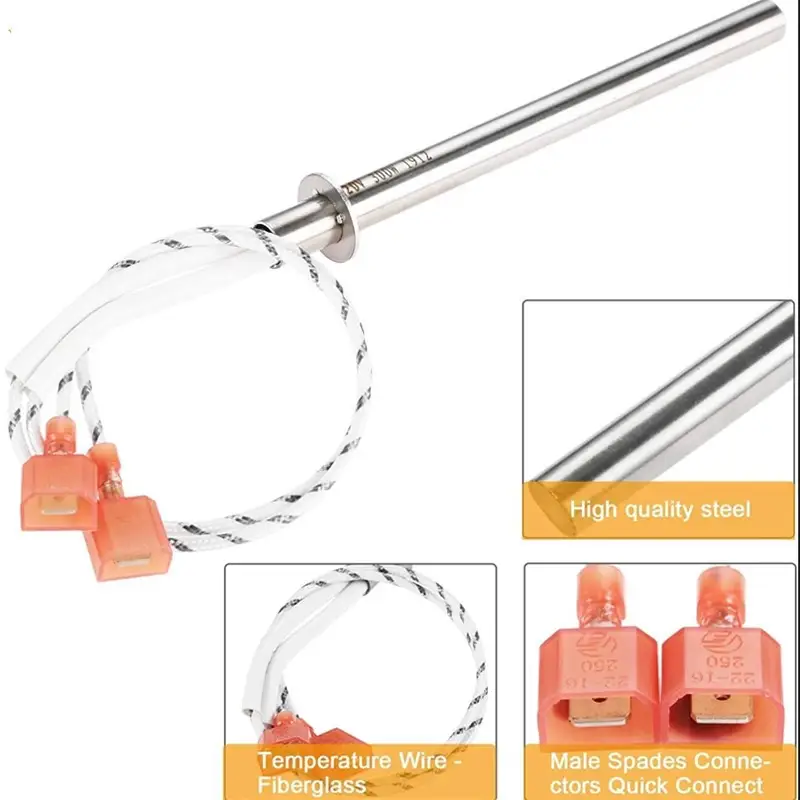

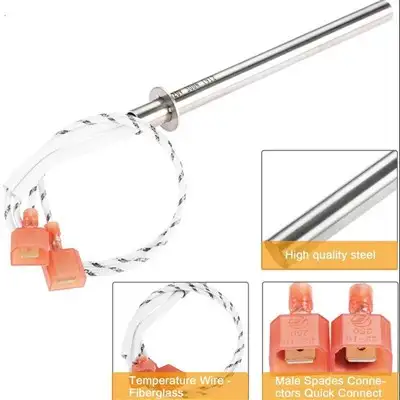

High Temperature Wire-Fiberglass insulation (Fiberglass woven glass strands provides good insulation for use in high temperature process heating applications)
over stranded Grade "A" nickel wire. Heat Shrink used on solder joints to prevent breaking.
FITS MODELS: Enviro Pellet Stoves: EF-5 Evolution(Serial number 10221 and higher), Empress FPI, Empress FS, Empress Insert, P3, P4, Milan, Mini, Windsor; Vista Flame Pellet Stoves: Windsor
PRODUCT SPECIFICATIONS: 400 Watts. Length: 4 5/8", width: 3/8, igniter wire leads 15". Connectors Female Spades.
PART NUMBERS: 20-022 & 50-619.(Screws not included)
[Compatibility] Replacement 50-619 Igniter for Enviro Pellet Stoves: EF5 Evolution (Serial # 10221 and higher), Empress FS, Empress FPI, Milan, Mini, P3, P4, Windsor.
[Compatibility] Replacement 50-619 Igniter for Vistaflame VF Windsor Pellet Stove. [Replacement for Part Number]50-619, 20-022.
[High Quality]The Enviro Empress 50-619 Igniter come with High Temperature Wire - Fiberglass insulation (Fiberglass woven glass strands provides good insulation for use in high temperature process heating applications) over stranded Grade "A" nickel wire. Heat Shrink used on solder joints to prevent breaking.
Specifications:
Volts: 120 V Watts: 400W Length: 4 3/4" Width: 1/2"
Wire Length: 18" with ¼" Female Terminal
Replacement for Part Number:
50-619
20-022
Compatible:
Enviro Pellet Stoves:
EF5 Evolution (Serial # 10221 and higher),Empress FS,Empress FPI ,Milan , Mini , P3 ,P4 ,Windsor
Vistaflame Pellet Stove:
VF Windsor
