Nozzle Heater Heating Element
Nozzle Heater Heating Element by LICHENGDA. Drawing review and thermal interfaces, configuration details and made-to-drawing quotation for made-to-drawing heating assemblies.
Product image gallery (7)
PRODUCT ENGINEERING
Drawing review and thermal interfaces
Nozzle Heater Heating Element: Supply a drawing showing active and cold zones, mounting faces and electrical exits. Identify the heated material, heat-loss paths and required warm-up time so the geometry and power can be reviewed together.
Specify environmental exposure, control method and service access. Agree a sample configuration and inspection points before committing the design to a production quantity.
For Nozzle Heater Heating Element, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Nozzle Heater Heating Element lists material: copper; size: inside diameter 8-60mm,length 25-200mm; Inner diameter tolerance: ±0.05mm; Sleeve length tolerance: ±0.05mm. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Nozzle Heater Heating Element, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Made-to-drawing heating assemblies. The final suitability of Nozzle Heater Heating Element depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| material | copper |
|---|---|
| size | inside diameter 8-60mm,length 25-200mm |
| thermocouple | J type (Standard) or K type |
| min wall thickness | 2mm-3mm |
| Inner diameter tolerance | ±0.05mm |
| Sleeve length tolerance | ±0.05mm |
| Round heating wire | 1.6mm,1.8mm.2.0mm.2.2mm |
| Square heating wire | 2.2*4.2mm,3*3mm,3.5*3.5mm |
ARCHIVED PRODUCT INFORMATION
Description
brass heater is a type of heating element that is made of brass, which is a copper-zinc alloy. Brass heaters are
commonly used in industrial and commercial applications where a reliable and durable heating source is required.
| material | copper |
| size | inside diameter 8-60mm,length 25-200mm |
| thermocouple | J type (Standard) or K type |
| min wall thickness | 2mm-3mm |
| Inner diameter tolerance | ±0.05mm |
| Sleeve length tolerance | ±0.05mm |
| Round heating wire | 1.6mm,1.8mm.2.0mm.2.2mm |
| Square heating wire | 2.2*4.2mm,3*3mm,3.5*3.5mm |
| The minimum spacing between ID and OD is 7mm. | |
1. Structure & Components

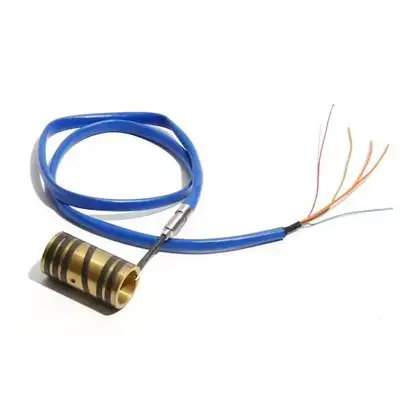

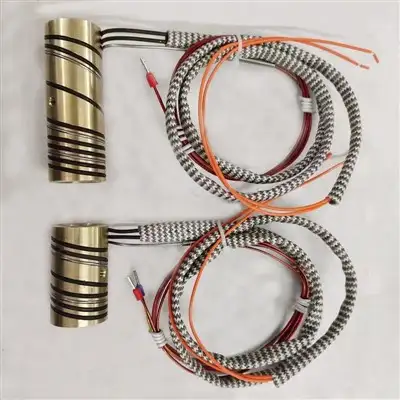

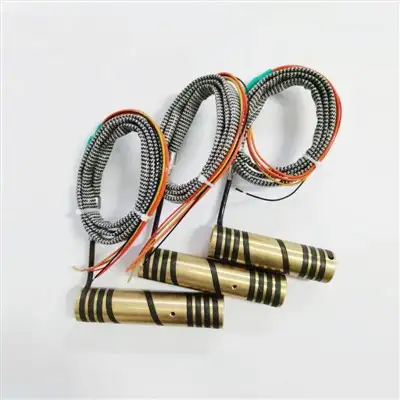

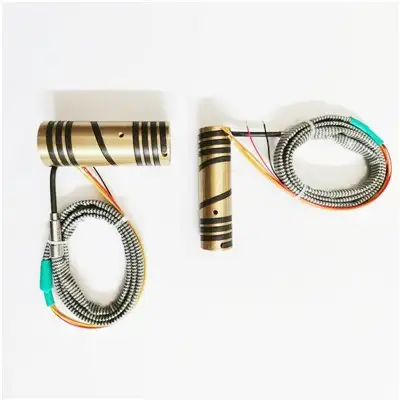

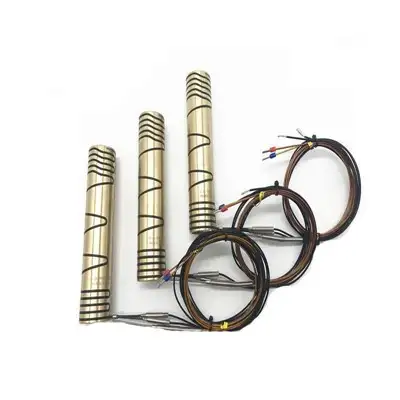

Brass heating body (golden brass sleeve): Nichrome heating wire is wound inside. The external brass ensures uniform heat conduction, high temperature resistance and anti‑deformation performance. It closely fits the outside of injection mold nozzles to realize precise heating.
High‑temperature‑resistant blue cable: Adopts temperature‑resistant insulating sheath, anti‑aging and anti‑bending, suitable for high‑temperature and narrow working environments of molds.
Multi‑colored lead wires: Include heating wires and thermocouple temperature‑measuring wires, which can feed back real‑time temperature for precise temperature control.
Core Application
Specially used for hot runner nozzles of plastic injection molds. It keeps plastic in a molten state continuously to prevent gate blockage caused by cooling, applied in precision injection molding of auto parts, electronic components, daily necessities and other products.
3. Professional English Names (Directly Used for Foreign Trade)
Standard Name: Hot Runner Coil Heater
Aliases: Brass Hot Runner Heater / Nozzle Heater
4. Main Advantages (Copy‑ready Selling Points)
Fast heating speed and even temperature distribution
Built‑in thermocouple for accurate temperature control
Brass housing with excellent thermal conductivity and long service life
Flexible coil structure for easy installation
Company Profile
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability of product quality
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: nozzle heater heating element, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, Electric Spring Hot Runner Brass Heater, Hot Runner Coil Spring Heater, Hot Runner Copper Coil Heaters
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
