DESIGNED FOR YOUR APPLICATION
Ignitor Hot Rod for Whitfield & Lennox
Ignitor Hot Rod for Whitfield & Lennox by LICHENGDA. Ignition fit and airflow, configuration details and made-to-drawing quotation for pellet stoves and controlled ignition assemblies.
Product image gallery (7)
PRODUCT ENGINEERING
Ignition fit and airflow
Ignitor Hot Rod for Whitfield & Lennox: Match diameter, inserted length, bracket and terminal style to the appliance drawing. Check that combustion air reaches the intended ignition zone and that the element can be removed for service.
Confirm supply voltage, ignition-cycle duration and the controller’s switching method. A stove brand in the catalog name indicates an application reference; verify the dimensions and electrical rating before fitting a replacement.
For Ignitor Hot Rod for Whitfield & Lennox, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Ignitor Hot Rod for Whitfield & Lennox lists Resistance heating wire: NiCr 80/20 wire; Size: stcok size 3/8"*6" 120V 400W or customized; Length tolerance: ±1 mm; Diameter tolerance: -0.02mm. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Ignitor Hot Rod for Whitfield & Lennox, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Pellet stoves and controlled ignition assemblies. The final suitability of Ignitor Hot Rod for Whitfield & Lennox depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Resistance heating wire | NiCr 80/20 wire |
|---|---|
| Size | stcok size 3/8"*6" 120V 400W or customized |
| Resistance tolerance | +10%, -5% |
| Length tolerance | ±1 mm |
| Diameter tolerance | -0.02mm |
| Standard Cold Zone | 5-10mm |
| Insulation resistance (cold) | ≥ 500 MΩ |
| Maximum leakage current (cold) | ≤ 0.5 mA |
ARCHIVED PRODUCT INFORMATION
Description
| Resistance heating wire | NiCr 80/20 wire |
| Size |
stcok size 3/8"*6" 120V 400W or customized |
| Resistance tolerance | +10%, -5% |
| Length tolerance | ±1 mm |
| Diameter tolerance | -0.02mm |
| Standard Cold Zone | 5-10mm |
| Insulation resistance (cold) | ≥ 500 MΩ |
| Maximum leakage current (cold) | ≤ 0.5 mA |

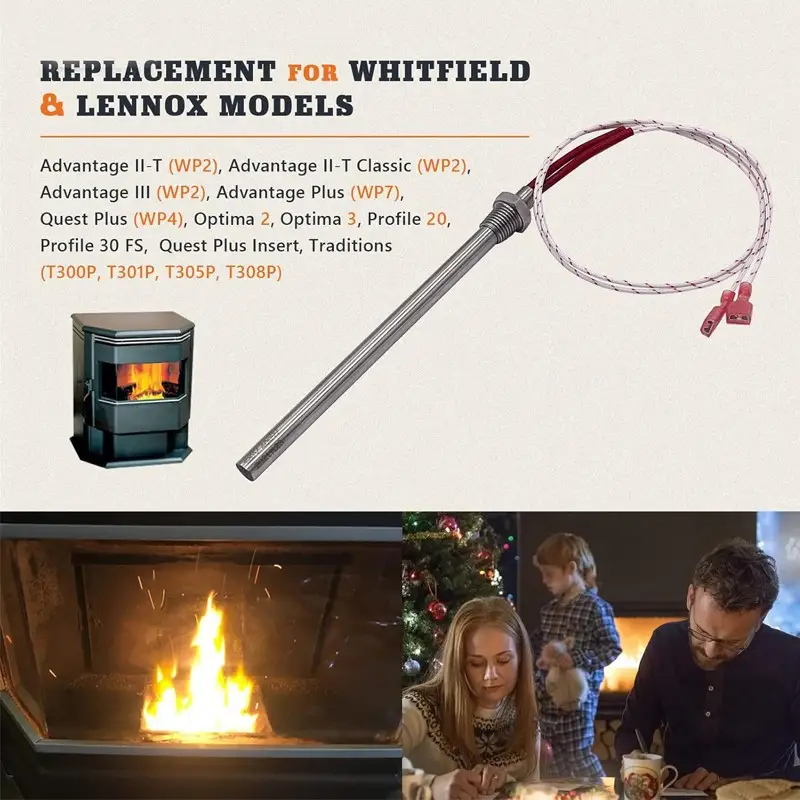

Fits Models - Models: Advantage II-T (WP2) - Advantage II-T Classic (WP2) - Advantage III (WP2) - Advantage Plus (WP7) - Optima 2 - Optima 3 - Profile 20 - Profile 30 FS - Quest Plus (WP4) - Quest Plus Insert - Traditions (T300P, T301P, T305P, T308P)

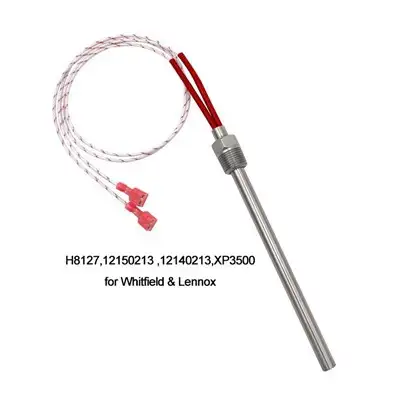

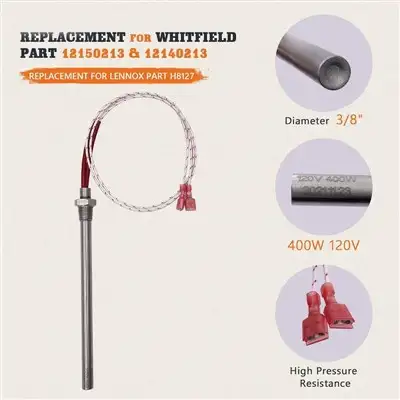

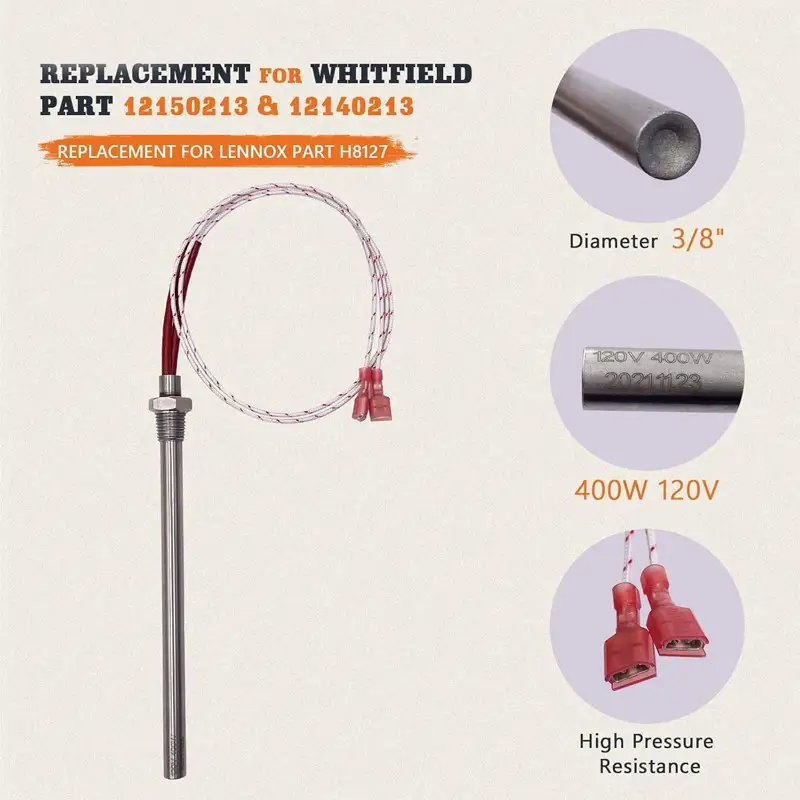

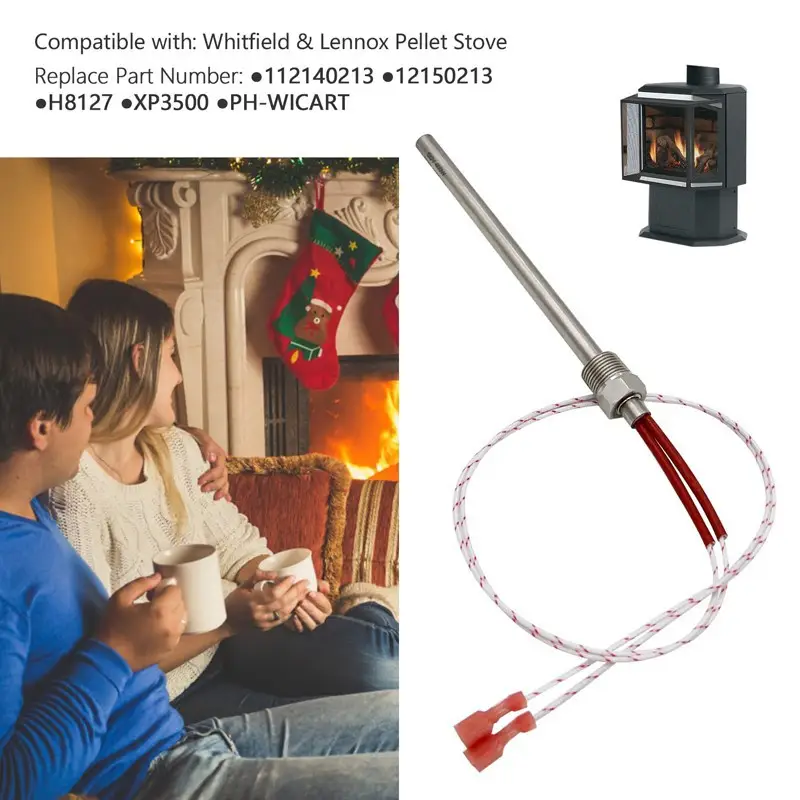

Replacement for Whitfield part 12150213 & 12140213, Lennox part H8127. Better than the OEM model in your stove

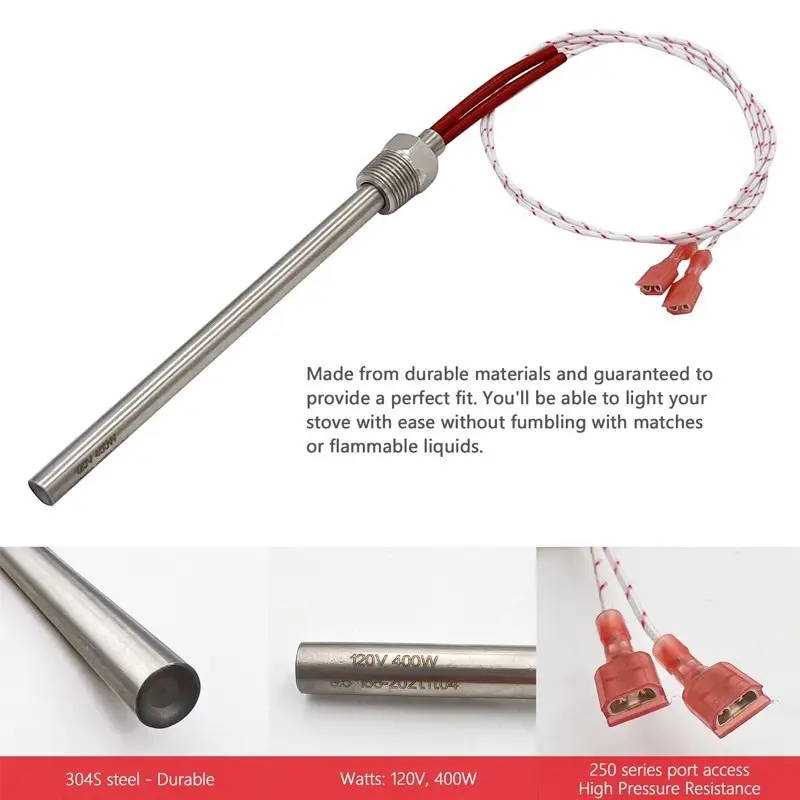

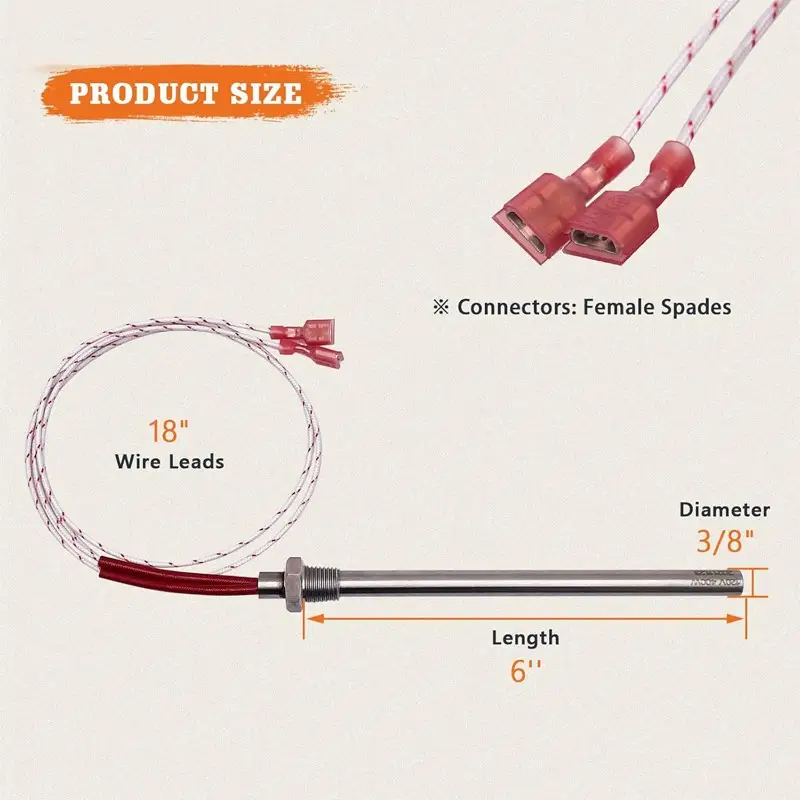

Perfect replacement/spare ignition rod - 3/8" Diameter, 6" Length. 400 watts 120V AC
Upgraded Igniter - The thread opening is smaller than the old one, which allows for better tightening and longer life of the ignition rod
Application:
Fit for following models:
Iron Strike Pellet: Montage 32FS
Lennox Pellet: Montage 32FS,Optima 2 FS (A02),Optima 3 FS (A03),Optima 3 Insert (A03),Profile 20 FS (P9)
Profile 30 FS (P10),Profile 30 Insert (P10),Traditions - (T300P, T301P, T305P, T308P)
Whitfield:
Advantage II (WP2),Advantage II-T (WP2),Advantage II-T Classic (WP2),Advantage II-T Insert (WP2)
Advantage III (WP2),Advantage III Insert (WP2),Advantage Plus (WP7)
Advantage Plus Insert (WP7),Optima 2 (A02),Optima 3 (A03),Profile 20 (P9),Profile 30 (P10)
Profile 30 Insert (P10),Quest (WP4),Quest Insert (WP4),Quest Plus (WP4)
Quest Plus Insert (WP4),Traditions (T300P, T301P, T305P, T308P)
Company profile
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: ignitor hot rod for whitfield & lennox, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, 220v 300w pellet stove cartridge heater, 230v cartridge heater igniter, cartridge heater pellet stove, mini micro cartridge heater, Pellet Ceramic Igniter For Stove, Silicon Nitride Igniter
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
