Hot Runner Manifold Heater
Hot Runner Manifold Heater manufactured by LICHENGDA with custom voltage, wattage, dimensions, materials and termination options for industrial applications.
ENGINEERING GUIDANCE
Specify this product correctly
Engineered to distribute heat across injection-molding manifolds while avoiding cold spots around flow channels. Heater routing, sensor placement and zone control should be reviewed from the manifold drawing.
Final voltage, wattage, dimensions, material and termination are reviewed against your operating conditions before production.
- ✓ Drawing, sample or application-based development
- ✓ Prototype and low-volume production support
- ✓ Integrated heater, sensor and termination design
- ✓ OEM and ODM production for global equipment makers
REFERENCE SPECIFICATIONS
Available configuration
| Electrical | Voltage, wattage and phase |
|---|---|
| Mechanical | Dimensions, shape and mounting |
| Materials | Sheath, insulation and leads |
| Controls | Sensor, thermostat and connector |
| Documentation | Drawing confirmation and inspection records |
TYPICAL APPLICATIONS
Where this product is used
- Hot runner manifolds
- Injection molding systems
- Made-to-drawing thermal assemblies
QUOTE CHECKLIST
Send these details
- Required voltage and wattage
- Dimensions or technical drawing
- Operating temperature and environment
- Lead, connector and mounting requirements
- Sample and production quantity
Product image gallery (7)
PRODUCT ENGINEERING

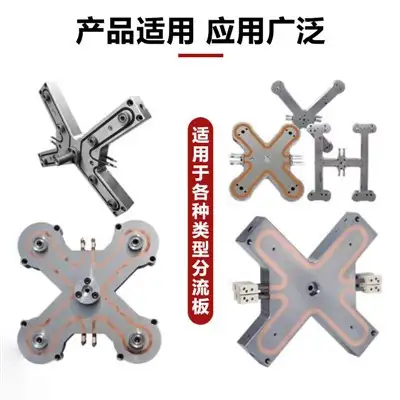

Manifold channels and heating-zone balance
Hot Runner Manifold Heater: Use the manifold drawing to define grooves, cold sections, terminal exits and heater retention. Distribute the active path around flow channels and mechanical openings to reduce avoidable cold spots.
Review sensor locations and independent zone control together with the formed heater. Confirm groove tolerances and contact pressure before selecting the final electrical loading.
For Hot Runner Manifold Heater, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
For Hot Runner Manifold Heater, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Hot-runner manifolds and injection-molding systems. The final suitability of Hot Runner Manifold Heater depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Electrical Rating | Confirmed for the application |
|---|---|
| Dimensions / Shape | Made to drawing |
| Materials / Termination | Selected for operating conditions |
ARCHIVED PRODUCT INFORMATION
Description
This type is special shaped bent tubular heaters for hot runner manifolds, the core heating components of hot runner systems for injection molds, available in round tube and square tube types.

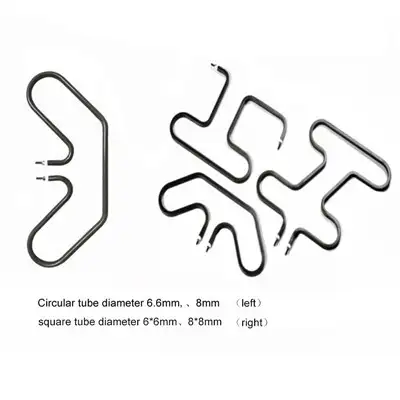

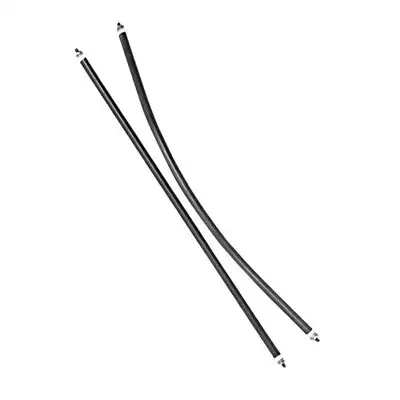

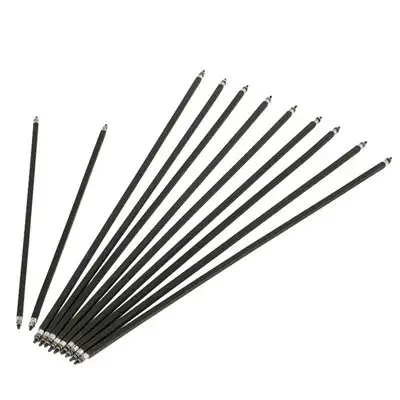

1. Left Right Structure Difference
Left: Round Tube Heaters
Made of round tubes with specified diameters of 6.6 mm and 8 mm. Custom bent shapes can be made according to the hole sizes of manifolds for direct installation into drilled holes in manifolds.
Right: Square Tube Heaters
Made of square tubes with cross section sizes of 6×6 mm and 8×8 mm. Square tubes provide larger contact areas with molds, delivering higher heat transfer efficiency and more uniform temperature, making them widely used in high end hot runner systems.

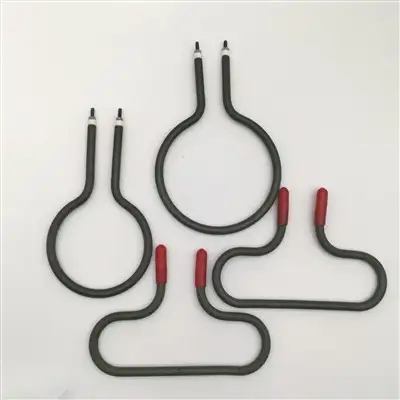

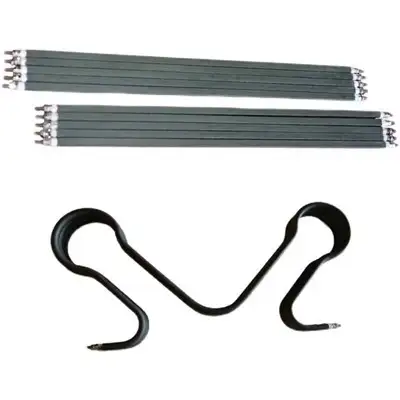

Product Features
Manufactured via one piece bending forming, custom complex shapes (U shaped, Z shaped, Y shaped, multi loop designs) are available to perfectly fit hot runner manifolds with complicated structures.
Terminal pins extend from both ends for connection to temperature controlled power supplies, enabling precise mold temperature regulation.
3. Material & Application
Sheath material: Typically 304 / 310S stainless steel, high temperature resistant and oxidation resistant, suitable for high temperature injection molding environments.
Main purpose: Heating injection mold hot runner manifolds to keep plastic melt thermostatically molten, ensuring stable molding for multi cavity molds. Widely applied in automotive parts, home appliances and precision plastic molds.
4. Key Advantages
Compared with round tubes, square tubes feature larger contact areas, more uniform heating and lower heat loss, ideal for high precision, multi cavity molds. Round tubes offer strong versatility and easy installation for conventional molds.
Product Description
Hot runner coil heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The heaters are annealed to acquire malleability for bending into any shape. Hot runner heaters with built in thermocouple are also available. Hot runner bushes are produced with hot runner heaters of different cross section with inner brass and outer stainless steel cover.
|
Sheath Material |
stainless steel /brass |
Length Tolerance |
5% |
|
Insulation Material |
MgO |
Max.SheathTemp |
700°C |
|
Resistance Wire |
NiCr 80-20 |
Wattage Tolerance |
5% |
|
Thermocouple |
J-type; K-type |
Resistance Tolerance |
5% |
|
Die Electrical Strength |
800V A/C |
Dimensional Tolerance |
Coil I.D + 0.1~0.2mm |
|
Insulation |
>5MW |
Coil length +1mm |
Product advantage
1. Standard sizes available with various cross section
2. Various Watt Density options available.
3. Robust Design with Choice of Terminal Exits
4. Available with built in Thermocouple
5. Designed for even heat profile.
6. Precision fit on Hot Runner Nozzles & Manifolds.
7. Highly Non-corrosive.
8. Maximum heat transfer due to more contact area.
9. Advanced Thermal Engineering.
Company Information
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
Certifications
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: hot runner manifold heater, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, Electric Spring Hot Runner Brass Heater, Hot Runner Coil Spring Heater, Hot Runner Copper Coil Heaters
