HIGH-TEMPERATURE EFFICIENCY
Ceramic Infrared Panel Heater with Thermocouple
Ceramic Infrared Panel Heater with Thermocouple manufactured by LICHENGDA with custom voltage, wattage, dimensions, materials and termination options for industrial applications.
ENGINEERING GUIDANCE
Specify this product correctly
The integrated thermocouple supports closed-loop surface-temperature control. Specify sensor type, controller input, emitter wattage and mounting orientation as one coordinated system.
Final voltage, wattage, dimensions, material and termination are reviewed against your operating conditions before production.
- ✓ Nickel-chrome resistance wire in ceramic blocks
- ✓ Integrated thermal insulation
- ✓ High-temperature stainless steel outer shell
- ✓ Optional J or K thermocouple
REFERENCE SPECIFICATIONS
Available configuration
| Voltage | 110 / 220 / 380 V or custom |
|---|---|
| Power | 50–4400 W typical |
| Sheath temperature | Up to 700°C by design |
| Construction | Ceramic / fiber insulation / stainless shell |
| Applications | Extrusion, molding, high-temperature machinery |
TYPICAL APPLICATIONS
Where this product is used
- Radiant industrial heating
- High-temperature machinery
- Process drying and warming
QUOTE CHECKLIST
Send these details
- Required voltage and wattage
- Dimensions or technical drawing
- Operating temperature and environment
- Lead, connector and mounting requirements
- Sample and production quantity
Product image gallery (6)
PRODUCT ENGINEERING
Radiant coverage and emitter mounting
Ceramic Infrared Panel Heater with Thermocouple: Radiant heat transfer depends on emitter temperature, spacing and the target surface. Provide the heated-area layout, reflector arrangement and line speed or exposure time before selecting wattage.
Keep mounts and terminals within their temperature limits. Review guard clearances and zone control; an integrated sensor, when specified, must match the controller input.
For Ceramic Infrared Panel Heater with Thermocouple, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.

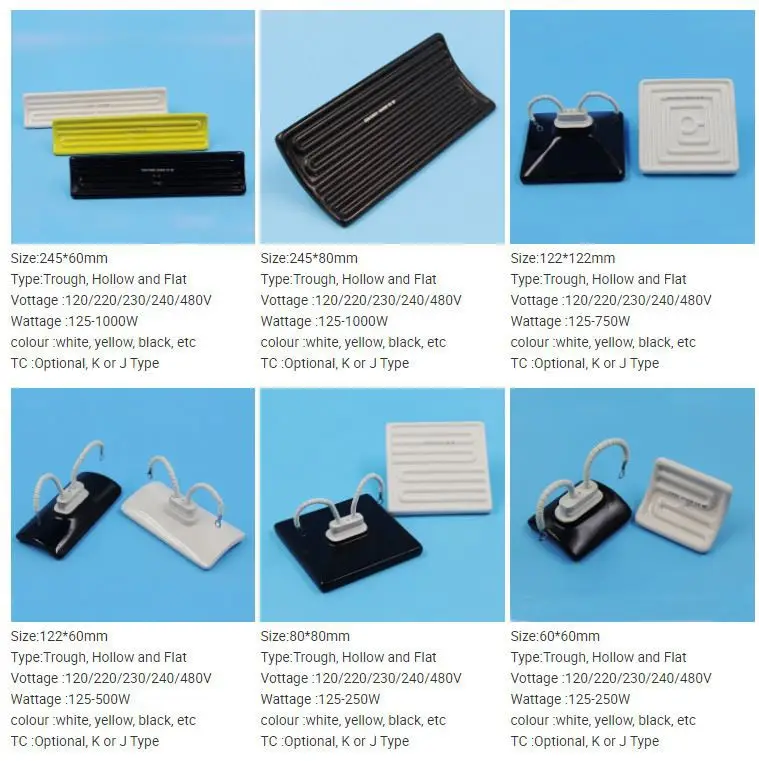

The archived configuration for Ceramic Infrared Panel Heater with Thermocouple lists Material: ceramic,Nickel 80 resistance wire inside; Size: 245*60mm,120*60mm,122*122mm,245*80mm,60*60mm or customzied; Voltage: 110v-480v. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Ceramic Infrared Panel Heater with Thermocouple, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Radiant drying, warming and thermoforming. The final suitability of Ceramic Infrared Panel Heater with Thermocouple depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Color | white ,pink,black,yellow |
|---|---|
| Material | ceramic,Nickel 80 resistance wire inside |
| Size | 245*60mm,120*60mm,122*122mm,245*80mm,60*60mm or customzied |

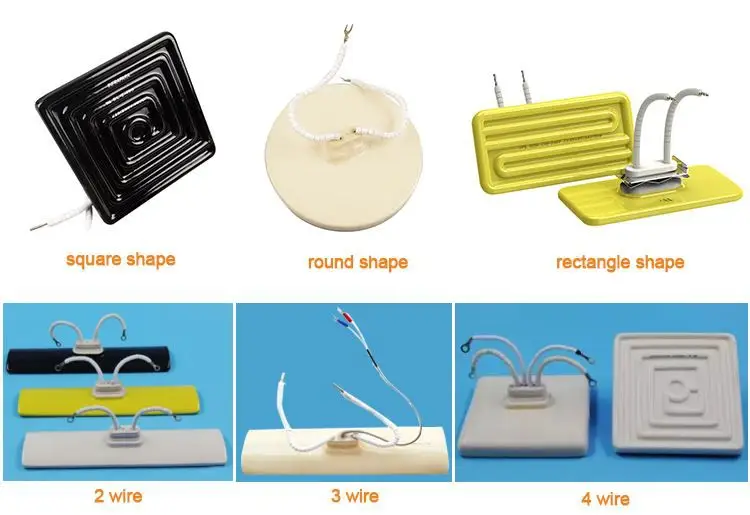

| Shape | curved/falt/hollow |
| Voltage | 110v-480v |
| Watt | 125w-3000w |

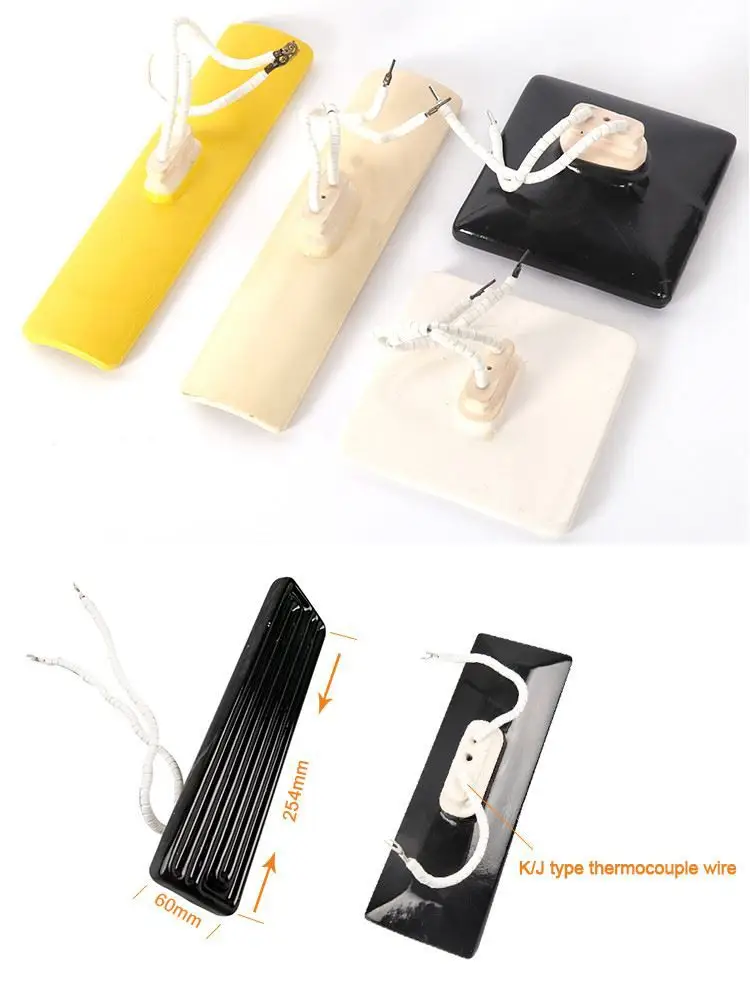

| Thermocouple | K/J type |
ARCHIVED PRODUCT INFORMATION
Description
Ceramic Heat plate is efficient, robust heaters which provide long wave infrared radiation. They are used in a diverse range of industrial processes such as heaters for thermoforming, and as heaters for paint curing, printing and drying. They are also used very effectively in infrared outdoor heaters and infrared saunas. Most plastics and many other materials absorb infrared wave best in this range, which makes the ceramic heater the most efficient infrared radiant emitter on the market.
Color | white ,pink,black,yellow |
Material | ceramic,Nickel 80 resistance wire inside |
Size | 245*60mm,120*60mm,122*122mm,245*80mm,60*60mm or customzied |
Shape | curved/falt/hollow |
Voltage | 110v-480v |
Watt | 125w-3000w |
Thermocouple | K/J type |
Product advantages
1:High-quality nickel-chromium wire 2040 material, fast heating, durable, imported clay material, good thermal shock, high emissivity glaze layer, high temperature
2:supplied with 100mm ceramic beaded power leads
3:recommended radiation distance from heater is 100mm to 250mm
Application
1.Heating(for example : Footwear processing, tape, plywood heating )
2.Stove machine with major vibration or impact ( for example: Vacuum forming machine, Compression Molding Machine)
3.Drying( for example : Printing ink dryer, Electric heating tables )
4.Heating in vertical or half round array ( for example :Aluminum windows paint stove )
Hot Tags: ceramic infrared panel heater with thermocouple, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, Electric Infrared Ceramic Heater Element, Far Infrared Ceramic Heater Plates, Far Ceramic Infrared Heater
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
