HIGH WATT DENSITY
Tapered Cartridge Heater
Tapered Cartridge Heater by LICHENGDA. Bore fit and conductive heat transfer, configuration details and made-to-drawing quotation for molds, dies and conductive tooling.
Product image gallery (11)
PRODUCT ENGINEERING
Bore fit and conductive heat transfer
Tapered Cartridge Heater: Install the active sheath in a close-fitting, clean bore. Specify bore diameter, tolerance and heated length together; excessive clearance increases sheath temperature and slows heat transfer.
Record the lead exit, cold end and removal access before the tool is machined. Locate the control sensor near the heated zone without placing it directly against the resistance element.
For Tapered Cartridge Heater, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Tapered Cartridge Heater lists Resistance heating wire: NiCr 80/20 wire; Length tolerance: ±1 mm; Diameter tolerance: ±0.02mm. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Tapered Cartridge Heater, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Molds, dies and conductive tooling. The final suitability of Tapered Cartridge Heater depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Resistance heating wire | NiCr 80/20 wire |
|---|---|
| Wattage Tolerance | +5%, -10% |
| Resistance tolerance | +10%, -5% |
| Length tolerance | ±1 mm |
| Diameter tolerance | ±0.02mm |
| Standard Cold Zone | 5-10mm |
| Insulation resistance (cold) | ≥ 500 MΩ |
| Maximum leakage current (cold) | ≤ 0.5 mA |
| Thermocouple Location | type J / K / Ground wire |
ARCHIVED PRODUCT INFORMATION
Description
Cartridge heaters are heating elements that are used for a variety of industrial heating applications. They consist of a cylindrical-shaped metal tube or sheath that contains an insulated heating element. The cartridge heater is usually inserted into a drilled hole in a solid material, such as metal or plastic, where it provides concentrated heat to a specific area.
Advantages
Internal wiring: high temperature resistance, uniform heating, high thermal conductivity and difficul cable fracture.
External wiring: high temperature resistance, uniform heating and high thermal conductivity.
Date sheets
|
Resistance heating wire |
NiCr 80/20 wire |
|
Wattage Tolerance |
+5%, -10% |
|
Resistance tolerance |
+10%, -5% |
|
Length tolerance |
±1 mm |
|
Diameter tolerance |
±0.02mm |
|
Standard Cold Zone |
5-10mm |
|
Insulation resistance (cold) |
≥ 500 MΩ |
|
Maximum leakage current (cold) |
≤ 0.5 mA |
|
Thermocouple Location |
type J / K / Ground wire |
Internal wiring port section of the heating tube does not adopt the terminal connection mode,Making it have high temperature resistance and strong mechanical properties.
The port part of the heating tube adopts terminal connection mode Is resistant to high temperature and works in the heating medium which can not conduct wiring at both ends.
Internal wiring port section of the heating tube does not adopt the terminal connection mode,
Making it havhigh temperature resistance and strong mechanical properties.
The port part of the heating tube adopts terminal connection mode Is resistant to
high temperature and works in the heating medium which can not conduct wiring at both ends.

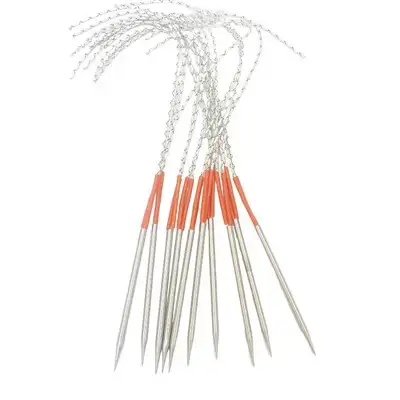

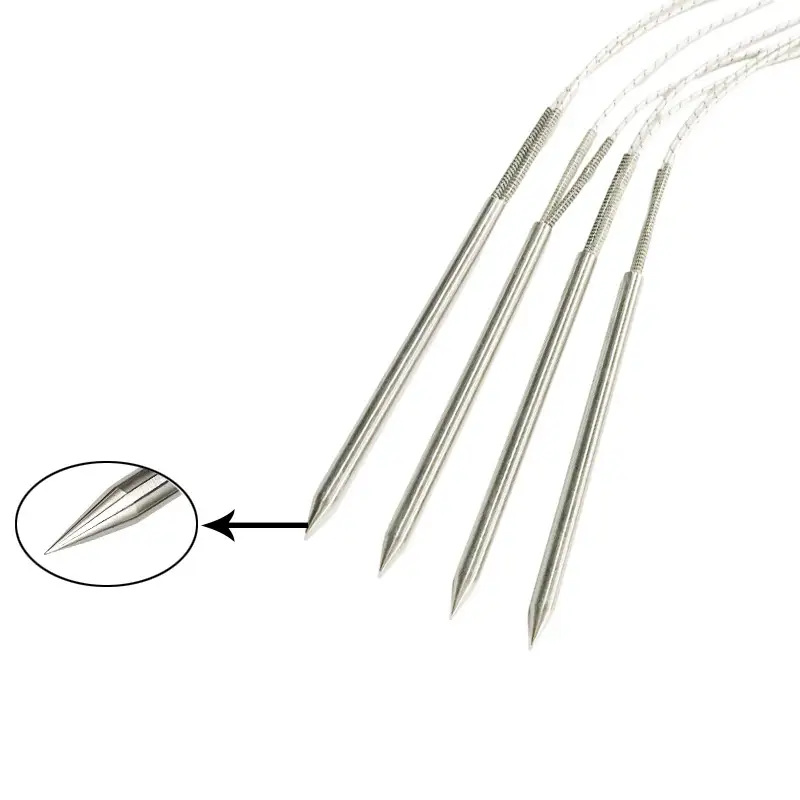

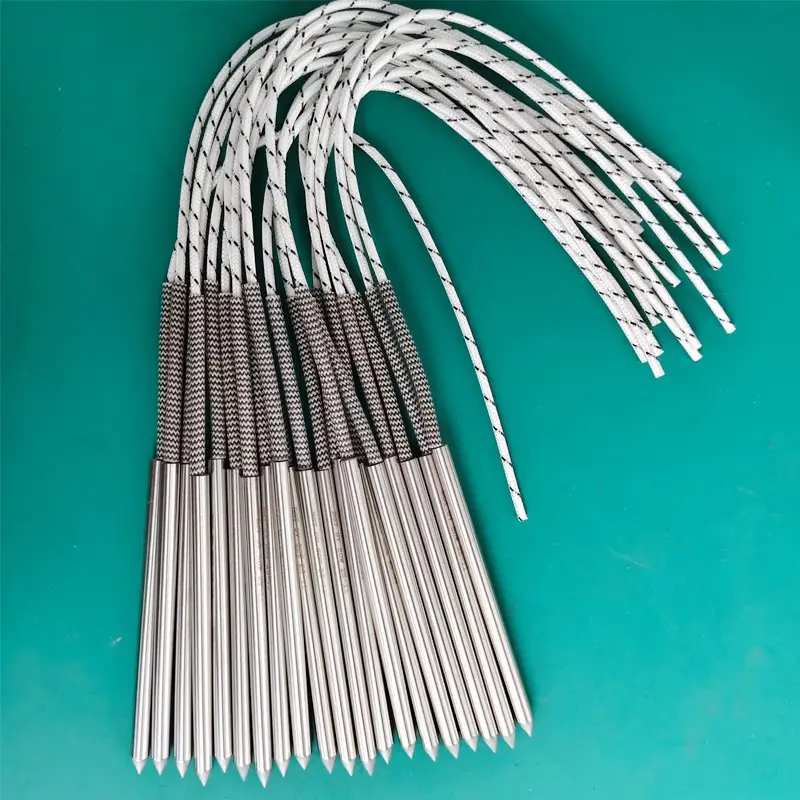

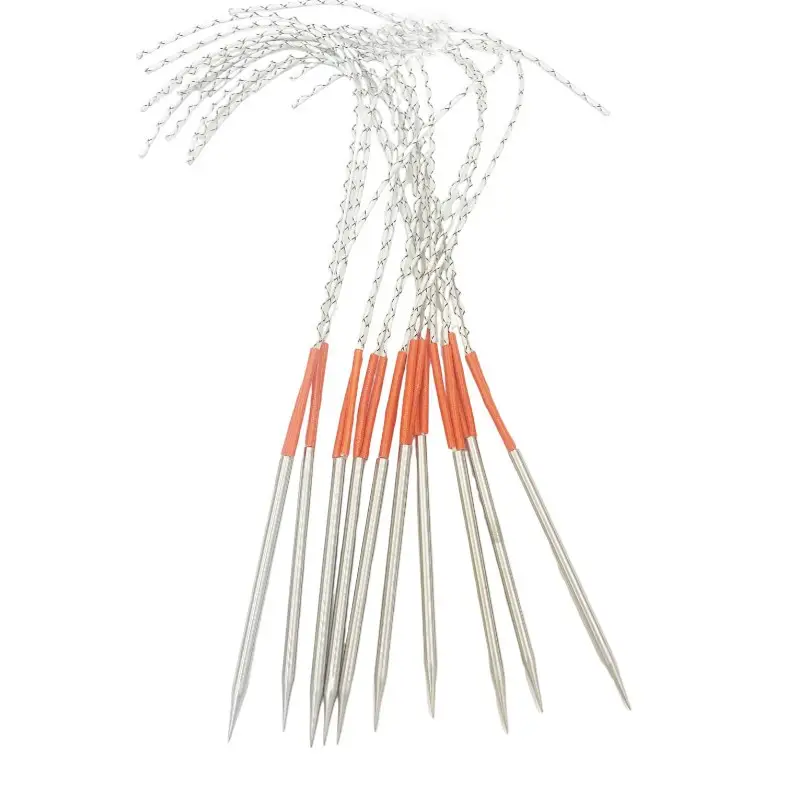

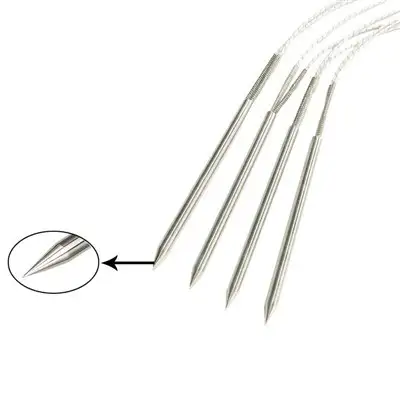

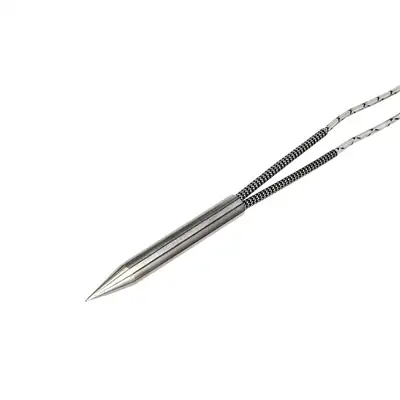

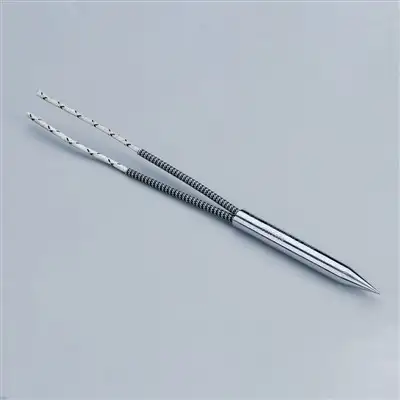

This is a tapered single-ended heating element (pointed-angle heating element), belonging to the category of mold heating elements.
Its main body is a pointed structure made of stainless steel, equipped with braided wire-like leads. This type of heating element is primarily used in mold heating applications. Its pointed design allows for precise insertion into the heating holes of the mold, enabling localized or overall heating. It is widely used in industrial mold manufacturing and processing, supporting temperature control and heating requirements for molds.
Compared to ordinary heating tubes, this conical single-ended heating element offers the following advantages:
* High Heating Precision:** The pointed tip concentrates heat at a small point, resulting in high surface power density. This enables rapid heating and powerful heating of minute areas, allowing for precise control of the heating zone, such as in localized welding, fusion, or heat treatment of small components in the semiconductor industry.
* Easy Installation:** The conical tip acts as a guide, easily inserting into the material to be heated or into mounting holes, reducing installation resistance. For example, it can easily insert into pre-drilled heating holes in molds.
* Excellent Thermal Conductivity and Flowability:** When heating and melting solids or viscous liquids, the pointed tip creates cavities or flow channels during insertion, facilitating the flow and heat convection of the molten material. This results in more uniform and efficient heating. For instance, when melting solid asphalt or paraffin wax from the inside, it improves melting efficiency.
* High Mechanical Strength and Durability:** Compared to flat-head structures, the pointed tip distributes stress more evenly under external pressure or impact, making it less prone to deformation and damage, and more durable in applications requiring forced insertion. Precise Thermal Response and Temperature Control: Thermal efficiency ≥95%, rapid heating rate, and a temperature control system that keeps temperature fluctuations within a small range, meeting the high temperature accuracy requirements of scenarios such as precision mold heating.
Excellent Space Adaptability: The single-end structure design results in a short axial dimension, suitable for narrow installation spaces. L-shaped, U-shaped, and irregular shapes can also be customized to expand application scenarios, such as the use of miniature single-end heating tubes in micro-devices like 3D printer nozzles and medical catheters.
Function:
1. Operating conditions: ambient temperature-20℃ ~ + 60℃, relative temperature <80%;
2. Electrical strength: cold withstand voltage AC work 1500V 50Hz lasts for 1 min without breakdown phenomenon;
3. Thermal insulation performance: AC 1000V 50Hz lasts for 1 min without breakdown phenomenon;
4. Leakage current <0.5MA; Insulation resistance> 30MΩ;
Product Advantages
1:High-Density Swaged Cartridge Heater
2:Low density cartridge heater are available
3:Various diameter from 3MM-25MM
4:Good Alloy tube sheath for high corrosion resistance
5:Imported resistance wire, ensure high density large wattge

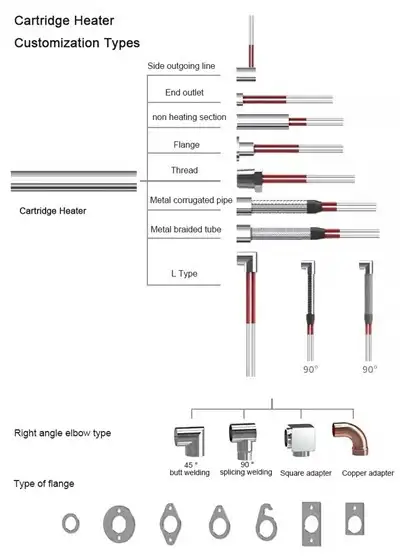

6: Fasteners and flanges to meet a variety of installation requirements.
7:High temperature, wear-resistant, waterproof
Application
1.Mold heating: Cartridge heaters are commonly used to heat molds for injection molding or other industrial processes.
2.Packaging equipment: They are also used to heat sealing equipment, which is used in the packaging industry to seal bags and other packaging materials.
3.Heating liquids: They can be used to heat liquids, such as water or oil, in tanks or other vessels.
4.Food processing: Cartridge heaters are used in food processing equipment to heat fluids or to cook food.
5.Aerospace and automotive industry: Cartridge heaters are used in aerospace and automotive industry for heating purposes in various applications such as engine block, fuel injection, exhaust systems, and more.
