UNIFORM CYLINDER HEATING
Heating Elements Plate
Heating Elements Plate by LICHENGDA. Diameter, width and clamping contact, configuration details and made-to-drawing quotation for extrusion barrels and injection-molding tooling.
Product image gallery (8)
PRODUCT ENGINEERING
Diameter, width and clamping contact
Heating Elements Plate: Match inside diameter and band width to the barrel or nozzle. Contact gaps create local hot spots; the closure, terminal angle and available tightening space belong on the installation drawing.
Review expansion during heating and the equipment maker’s tightening procedure. Keep lead routing outside the hottest zone and confirm sensor placement for each controlled barrel section.
For Heating Elements Plate, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Heating Elements Plate lists Band Voltage: 120V 220V 230V 240V 480V etc (under customer request); Resistance Wire Type: NiCr 80/20; Sheath Material: 304 stainless steel; Insulation Material: Mica/ceramic. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Heating Elements Plate, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Extrusion barrels and injection-molding tooling. The final suitability of Heating Elements Plate depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Band Voltage | 120V 220V 230V 240V 480V etc (under customer request) |
|---|---|
| Max working temperature | 450 degree celsius |
| Resistance Wire Type | NiCr 80/20 |
| Sheath Material | 304 stainless steel |
| Insulation Material | Mica/ceramic |
| Gap Locking Mechanism Type | Flange, Barrel Nuts or None |
| Termination Style | Standard lead, Screw terminal |
ARCHIVED PRODUCT INFORMATION
Description

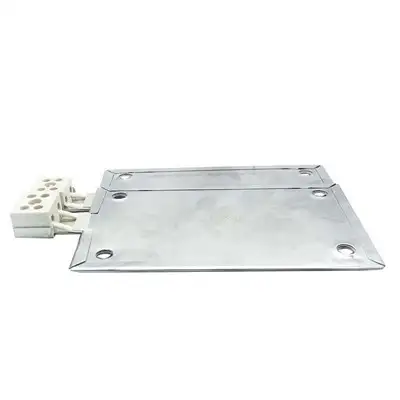

Stainless Steel mica band heater was made of stainless steel sheet, mica sheet, resistance wire/ strip , stainless steel sheet standard thickness is 0.3mm to 0.5mm, and in the middle , resistance wire/ strip wrap around the mica sheet, and add 1-2 pieces mica sheet again each side for insulation. They can be made to be many different kinds of shape as your requirement.Mica band heater can be made to be 110V 220V 380V also can be made to be DC voltage.
|
Band Voltage |
120V 220V 230V 240V 480V etc (under customer request) |
|
Max working temperature |
450 degree celsius |
|
Resistance Wire Type |
NiCr 80/20 |
|
Sheath Material |
304 stainless steel |
|
Insulation Material |
Mica/ceramic |
|
Gap Locking Mechanism Type |
Flange, Barrel Nuts or None |
|
Termination Style |
Standard lead, Screw terminal |
Main Features:
1: Any opening, customized pattern
2: Multiple interfaces, widely applicable
3: High-quality stainless steel heats up quickly and has high thermal efficiency
4: Exquisite workmanship, ceramic terminals
Applications:
Injection molding machine, extruder, Blow-molding,film blowing machine, tape cutting machine, medical
equipment, spray cloth machine ,food industry ,Pharmaceutical applications ,Container, pipe, or tank
heating ect.
Company profile
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: heating elements plate, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, stainless steel mica band heater 220v, electric copper barrel brass band heater, Stainless Steel 220v Mica Flat Heater, mica plate heating element, industrial mica band heaters manufacturer, electric mica flat heater
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
