UNIFORM CYLINDER HEATING
Ceramic Heater Band
Ceramic Heater Band manufactured by LICHENGDA with custom voltage, wattage, dimensions, materials and termination options for industrial applications.
ENGINEERING GUIDANCE
Specify this product correctly
Ceramic band construction is appropriate where higher operating temperatures and lower heat loss are priorities. Barrel diameter, width, insulation and expansion allowance must be confirmed.
Final voltage, wattage, dimensions, material and termination are reviewed against your operating conditions before production.
- ✓ Mica and ceramic insulated designs
- ✓ Custom diameter, width and lead exit
- ✓ One-piece or segmented construction
- ✓ Optional thermocouple and insulation jacket
REFERENCE SPECIFICATIONS
Available configuration
| Voltage | 110–480 V |
|---|---|
| Power | Application matched |
| Maximum sheath temperature | Up to 700°C by design |
| Termination | Leads, terminal block, plug |
| Applications | Injection molding, extrusion, barrels, nozzles |
TYPICAL APPLICATIONS
Where this product is used
- Injection molding barrels
- Extrusion equipment
- Nozzles and cylindrical tools
QUOTE CHECKLIST
Send these details
- Required voltage and wattage
- Dimensions or technical drawing
- Operating temperature and environment
- Lead, connector and mounting requirements
- Sample and production quantity

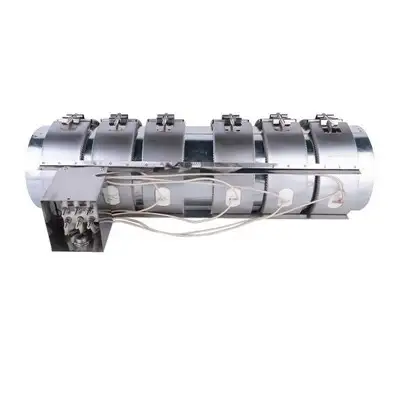

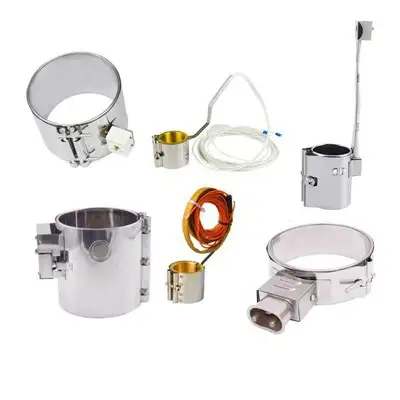

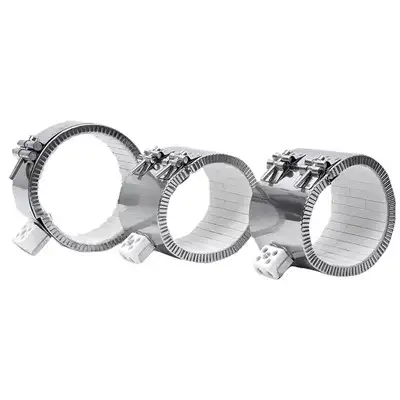

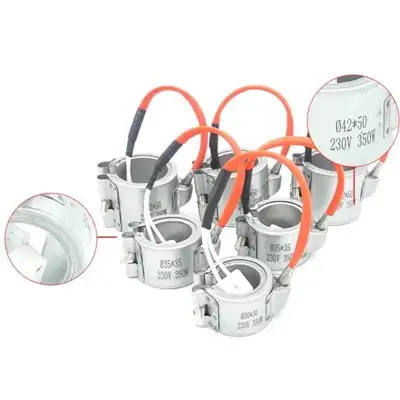

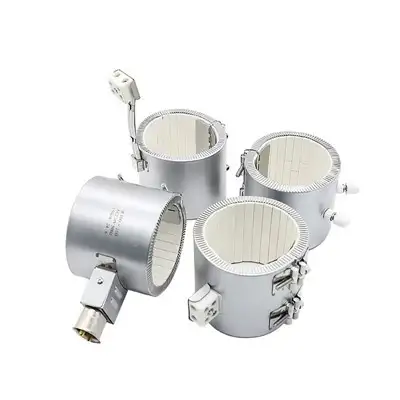

Product image gallery (7)
PRODUCT ENGINEERING
Ceramic band insulation and barrel zones
Ceramic Heater Band: Specify barrel diameter, axial width and terminal direction before selecting the ceramic band assembly. Review insulation thickness and clearance to guards and adjacent heating zones.
Coordinate zone power with sensor location and machine control. Confirm clamping and expansion allowance so the band maintains contact over repeated temperature cycles.
For Ceramic Heater Band, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Ceramic Heater Band lists Voltage: 120V, 240V, 480V, 600V and so on; Power: 50-2000W, or customized. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Ceramic Heater Band, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Extruders and high-temperature barrel zones. The final suitability of Ceramic Heater Band depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Product Name | Ceramic Band Heater |
|---|---|
| Advantage | high working temperature and long uage lifetime |
| Heating Element | Air heater |
| Voltage | 120V, 240V, 480V, 600V and so on |
| Power | 50-2000W, or customized |
| Thickness | customized |
ARCHIVED PRODUCT INFORMATION
Description
Ceramic Band Heaters offer longer heater life, high processing temperature capabilities and full flexibility for ease of installation.
The built in thermal insulation limits heat losses and conserves electrical energy. A wound nickelchrome resistance wire is strung through high temperature ceramic bricks that sit on an insulation blanket of ceramic fiber insulation.
Ceramic Band heaters are designed and manufactured out of 8 years of experience, for superior performance and life expectancy. Primarily used for Plastic Processing machinery, depending upon applications, these heaters come with outer heat saving insulation covers, which provides the best combination of physical strength, high emissivity & good thermal conductivity to heat cylindrical parts, good for sheath temperature up to 500℃ along with Energy Saving.
| Product Name | Ceramic Band Heater |
| Advantage | high working temperature and long uage lifetime |
| Heating Element | Air heater |
| Voltage | 120V, 240V, 480V, 600V and so on |
| Power | 50-2000W, or customized |
| Thickness | customized |
Product advantages
1. Available in chrome nickel steel with power saving options.
2. Special high grade steatite insulators for superior thermal conductivity.
3:Robust terminal junction with specially designed protection cap.
4. Efficient heat transfer even on irregular surfaces in comparison to mica band.
5 Conserves energy with improved heating efficiency up to 55 Watts per square inch.
6. Reduces down time for replacements.Easy installation and removal.
7. Engineered for longer life with superior quality nichrome wire for uniform temperature & maximum
amperage carrying capacity
Applications
Injection molding machine, extruder, film blowing machine, tape cutting machine, medical equipment,
spray cloth machine ect
Package
Company profile
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
Certifications
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: heater bands ceramic, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, electric brass band nozzle heater, Electric Heater Elements Band Mica Heater, electric mica flat heater, extruder mica band heater element, flat mica heater heating element, industrial electric copper band heaters
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
