220v High Temperature Extruder Barrel Electric Ceramic Heater Band
220v High Temperature Extruder Barrel Electric Ceramic Heater Band by LICHENGDA. Ceramic band insulation and barrel zones, configuration details and made-to-drawing quotation for extruders and high-temperature barrel zones.
Product image gallery (6)
PRODUCT ENGINEERING
Ceramic band insulation and barrel zones
220v High Temperature Extruder Barrel Electric Ceramic Heater Band: Specify barrel diameter, axial width and terminal direction before selecting the ceramic band assembly. Review insulation thickness and clearance to guards and adjacent heating zones.
Coordinate zone power with sensor location and machine control. Confirm clamping and expansion allowance so the band maintains contact over repeated temperature cycles.
For 220v High Temperature Extruder Barrel Electric Ceramic Heater Band, use the listed 220v as catalog identifiers and confirm the complete electrical and dimensional combination before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for 220v High Temperature Extruder Barrel Electric Ceramic Heater Band lists Voltage: 120V, 240V, 480V, 600V and so on; Power: 50-2000W, or customized. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For 220v High Temperature Extruder Barrel Electric Ceramic Heater Band, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
| Catalog name values | 220v |
|---|
Application and reference configuration
Extruders and high-temperature barrel zones. The final suitability of 220v High Temperature Extruder Barrel Electric Ceramic Heater Band depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Product Name | Ceramic Band Heater |
|---|---|
| Advantage | High working temperature and long uage lifetime |
| Heating Element | Air heater |
| Voltage | 120V, 240V, 480V, 600V and so on |
| Power | 50-2000W, or customized |
| Thickness | customized |
| Warranty | 1 year |
ARCHIVED PRODUCT INFORMATION
Description

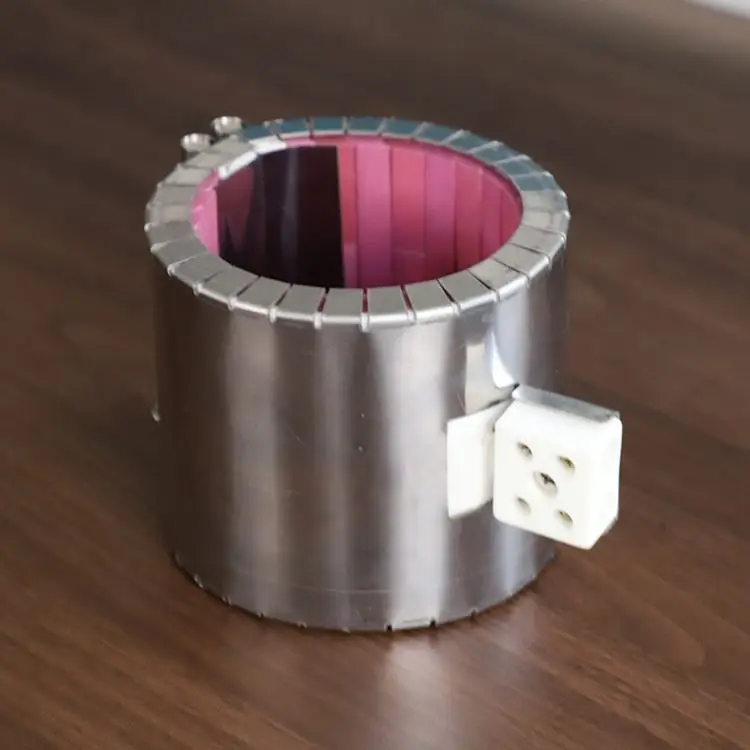

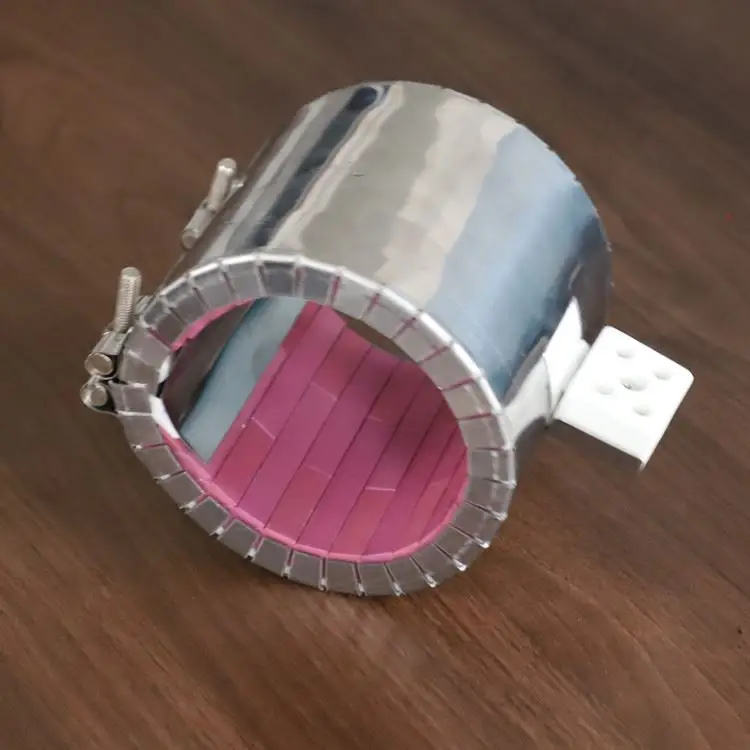

Ceramic Band Heaters offer longer heater life, high processing temperature capabilities and full flexibility for ease of installation. The built in thermal insulation limits heat losses and conserves electrical energy.

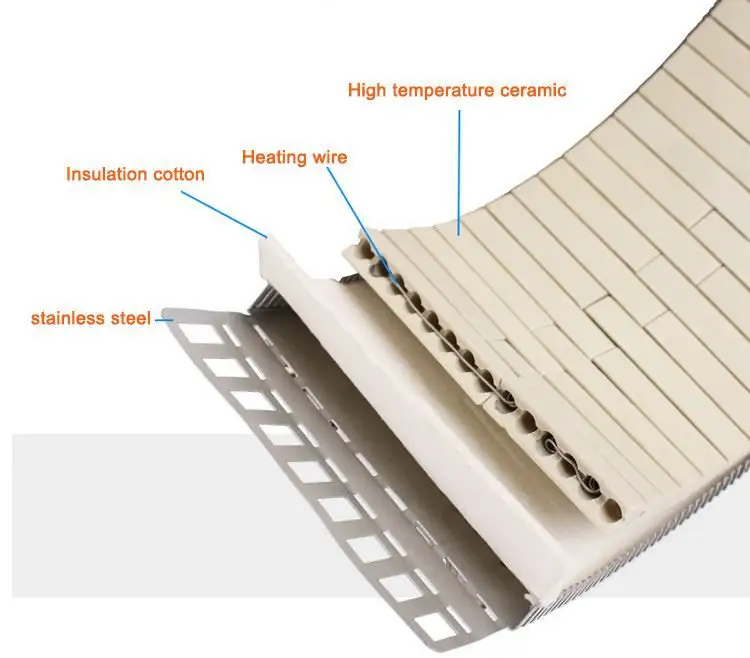

A wound nickelchrome resistance wire is strung through high temperature ceramic bricks that sit on an insulation blanket of ceramic fiber insulation.
Product Name | Ceramic Band Heater |
Advantage | High working temperature and long uage lifetime |
Heating Element | Air heater |
Voltage | 120V, 240V, 480V, 600V and so on |
Power | 50-2000W, or customized |
Thickness | customized |
Warranty | 1 year |
Ceramic Band heaters used for Plastic Processing machinery, depending upon application, these heaters come with outer heat saving insulation covers, which provides the best combination of physical strength, high emissivity & good thermal conductivity to heat cylindrical parts, good for sheath temperature up to 700℃ along with Energy Saving.

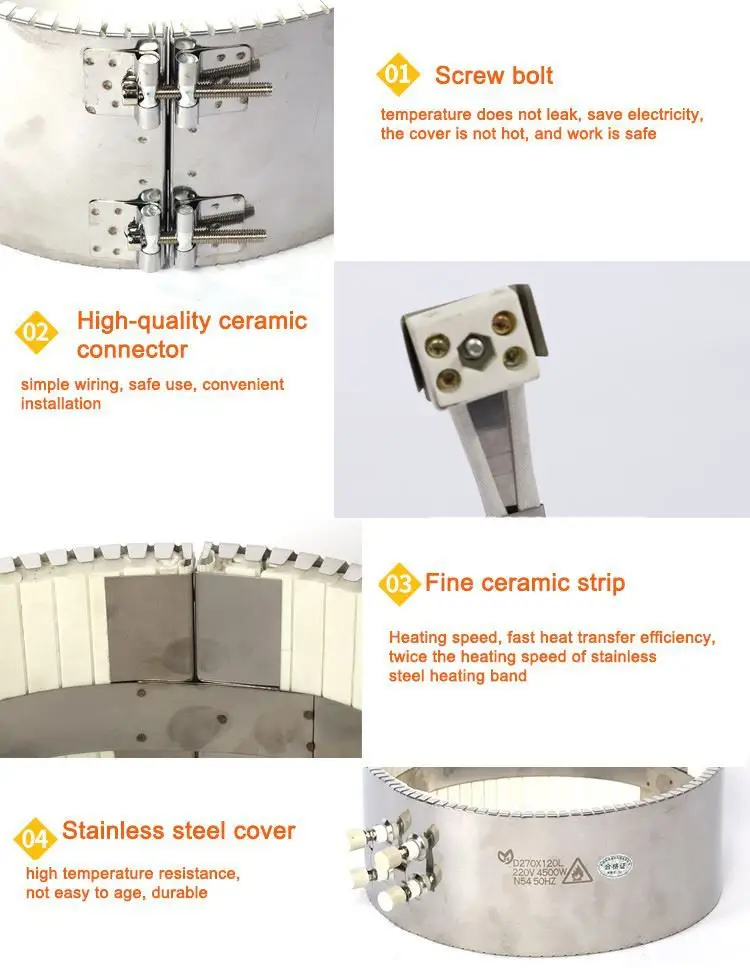

Product Advantages
1. Available in chrome nickel steel with power saving options.
2. Special high grade steatite insulators for superior thermal conductivity.
3. Power saving up to 30%.
4. Designed for higher temperature up to 700°C.
5. Robust terminal junction with specially designed protection cap.
6. Efficient heat transfer even on irregular surfaces in comparison to mica band.
7. Conserves energy with improved heating efficiency up to 55 Watts per square inch.
8. Reduces down time for replacements.
9. Easy installation and removal.
10. Engineered for longer life with superior quality nichrome wire for uniform temperature & maximum amperage carrying capacity.
Applications

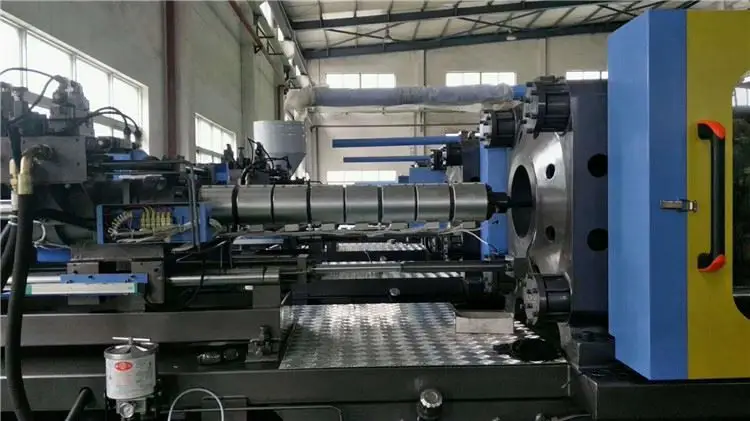

Injection molding machine, extruder, film blowing machine, tape cutting machine, medical equipment, spray cloth machine ect.
Hot Tags: 220v high temperature extruder barrel electric ceramic heater band, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, heating band mica band heater, electric brass band nozzle heater, 220v electric band heater with thermocouple, industrial mica band ceramic heater, stainless steel mica band heater plate, Extruder Barrel Ceramic Heater Band
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
